WT-1610 T - Echo Wheeled Trimmer (SN: 110WTB000001 - 110WTB999999) Handle Bar Parts Diagram

Wheeled Trimmer

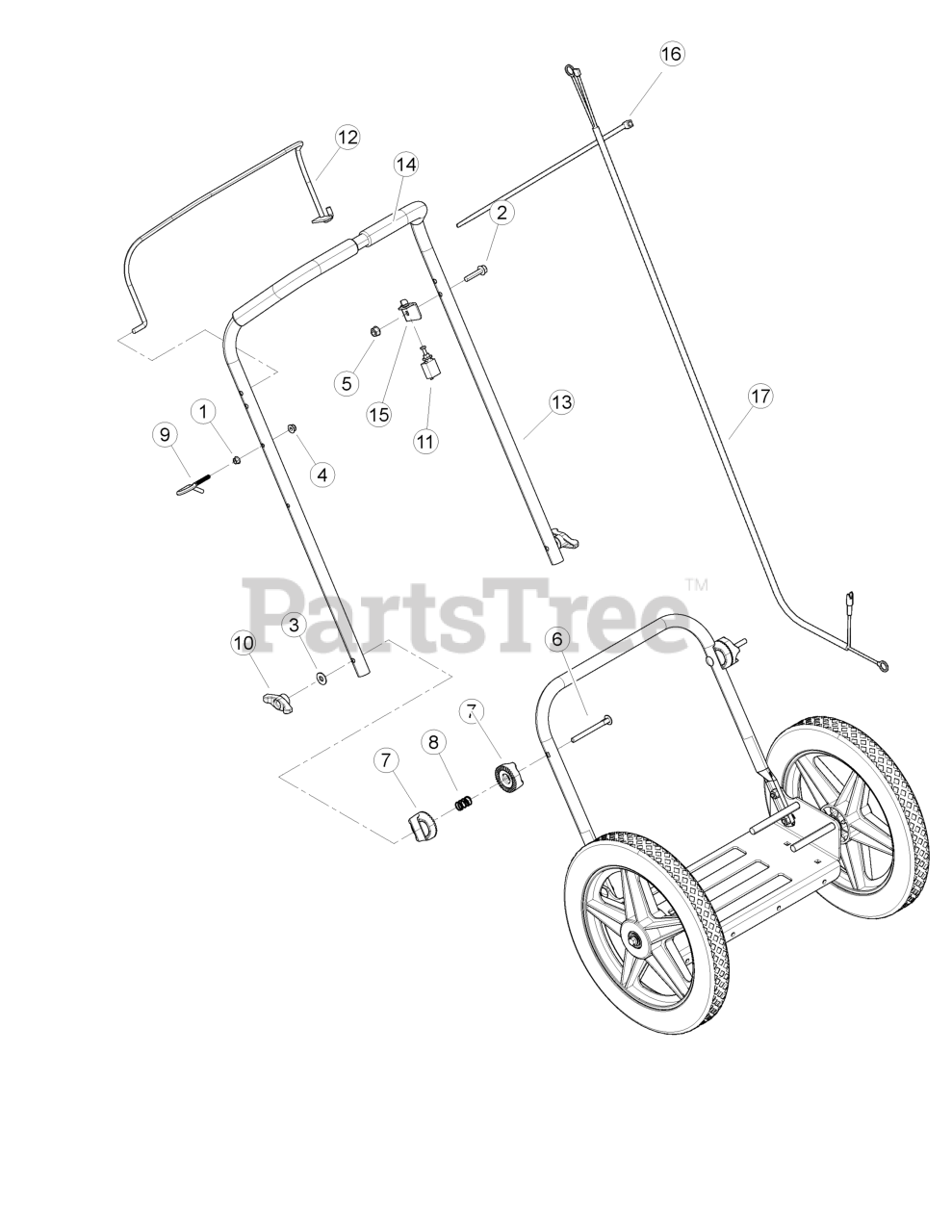

Handle Bar Parts Diagram

  • Title

1

Echo YH449000010

NUT, 1/4"-20 SERRATED FLANGE NC ZP

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH436000060

BOLT, 5/16 × 1-1/2 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

3

Echo YH451000440

WASHER, 5/16 FLAT

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH449000030

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 2-4 days

0

5

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH434000160

BOLT, 5/16-18 × 3-1/2 LONG NECK GR5 CRG ZP

$12.99

$

Usually ships in 2-4 days

0

7

Echo YH452000680

RETAINER, HANDLE BAR ADJUSTMENT

$2.49

$

Usually ships in 2-4 days

0

8

Echo YH476000180

SPRING, RETAINER COMPRESSION

$4.49

$

Usually ships in 2-4 days

0

9

Echo YH470000610

GUIDE, RECOIL ROPE

$23.99

$

Usually ships in 2-4 days

0

10

Echo YH452000690

KNOB, 5/16-18 FEEM TEE

$4.49

$

Usually ships in 2-4 days

0

11

Echo YH321000190

SWITCH, ENGINE KILL

$62.99

$

Usually ships in 2-4 days

0

12

Echo YH470000730

ASSEMBLY, BAIL HW TRIMMERS

$45.99

$

Usually ships in 2-4 days

0

13

Echo YH466000210

ASSEMBLY, UPPER HANDLE BAR WITH GRIPS

$169.99

$

Usually ships in 2-4 days

0

14

Echo YH466000150

PAD, FOAM HANDLE BAR

$14.99

$

Usually ships in 2-4 days

0

15

Echo YH479001960

BRACKET, HW KILL SWITCH

$21.99

$

In Stock, only 1 left!

0

16

STRAP, 11 IN BLACK TIE

$

$

Not available

17

Echo YH601000170

HARNESS, HONDA WT KILL SWITCH

$62.99

$

Usually ships in 2-4 days

0
