WT 189 - Bear Cat Walk-Behind Trimmer, 190cc Subaru (SN: E04271 - H04224) Handlebar SN: F02452 - CURRENT Parts Diagram

Walk-Behind Trimmer, 190cc Subaru

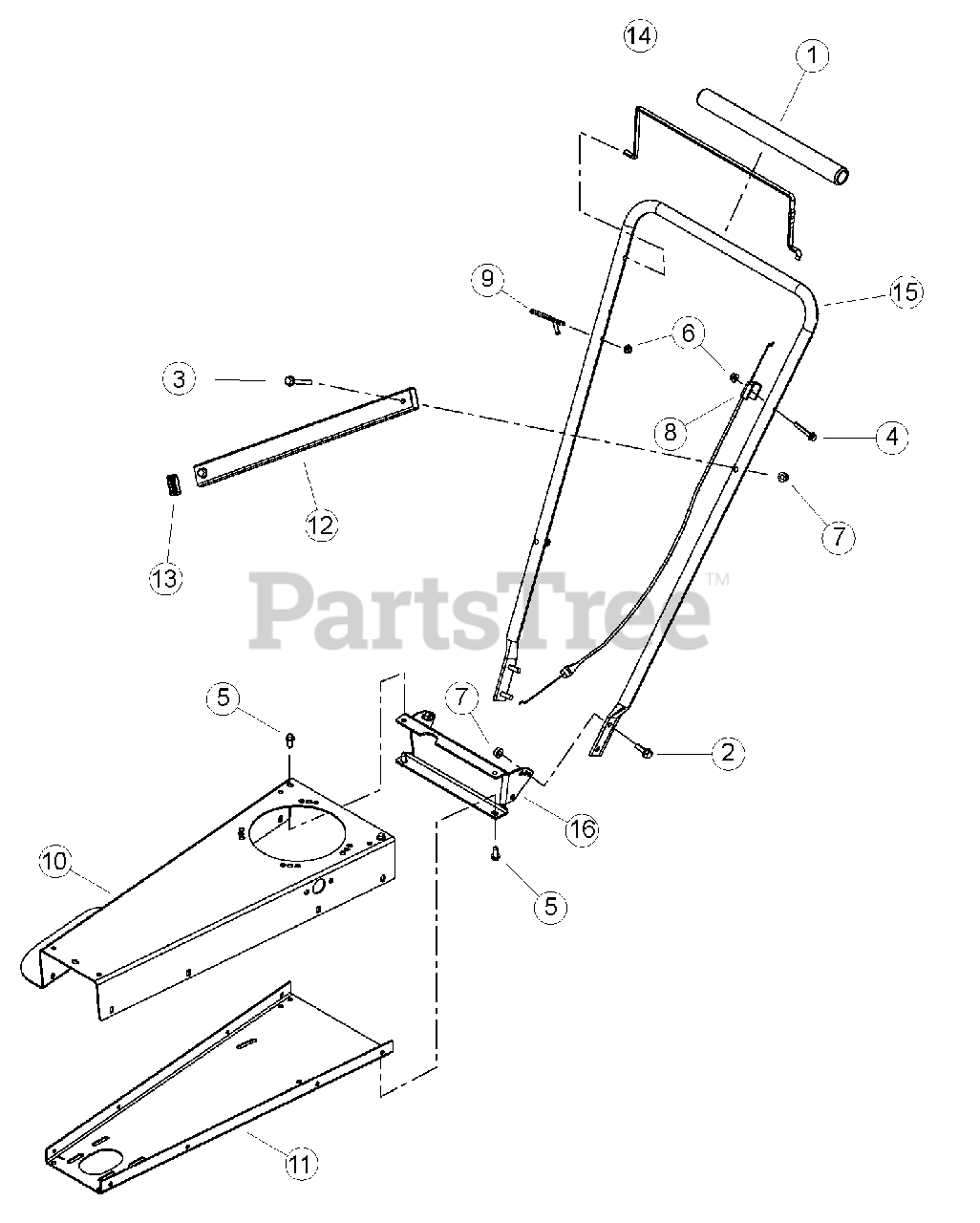

Handlebar SN: F02452 - CURRENT Parts Diagram

  • Title

1

Bear Cat 12326

PAD, FOAM HANDLEBAR

$18.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

4

15169-00

BOLT, 1/4 X 1-3/4 FLANGE NC

$

$

Not available

5

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

6

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

8

Bear Cat 30285-00

CABLE, BRAKE CONTROL SUBARU

$39.99

$

Usually ships in 3-7 days

0

9

Bear Cat 32045-00

GUIDE, RECOIL ROPE

$31.99

$

Usually ships in 3-7 days

0

10

70766-35

BODY, TRIMMER STANDOFF

$

$

Not available

11

Bear Cat 70767-12

BOTTOM, TRIMMER STANDOFF

$110.99

$

Usually ships in 3-7 days

0

12

Bear Cat 71596-00

ASSEMBLY, WT LINE HOLDER

Note: (INCLUDES ITEM 13)

$48.99

$

Usually ships in 3-7 days

0

13

Bear Cat 18955-00

CAP, PLASTIC 3/4 X 1-1/2 TUBE

$1.99

$

Usually ships in 3-7 days

0

14

Bear Cat 72732-12

BAIL, TRIMMER

$51.99

$

Usually ships in 3-7 days

0

15

Bear Cat 72760-12

HANDLEBAR, TRIMMER

$123.99

$

Usually ships in 3-7 days

0

16

Bear Cat 75518-12

CHANNEL, HANDLE SUPPORT

$57.99

$

Usually ships in 3-7 days

0
