WT 190 - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190 Drive (Push) (Part 1) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

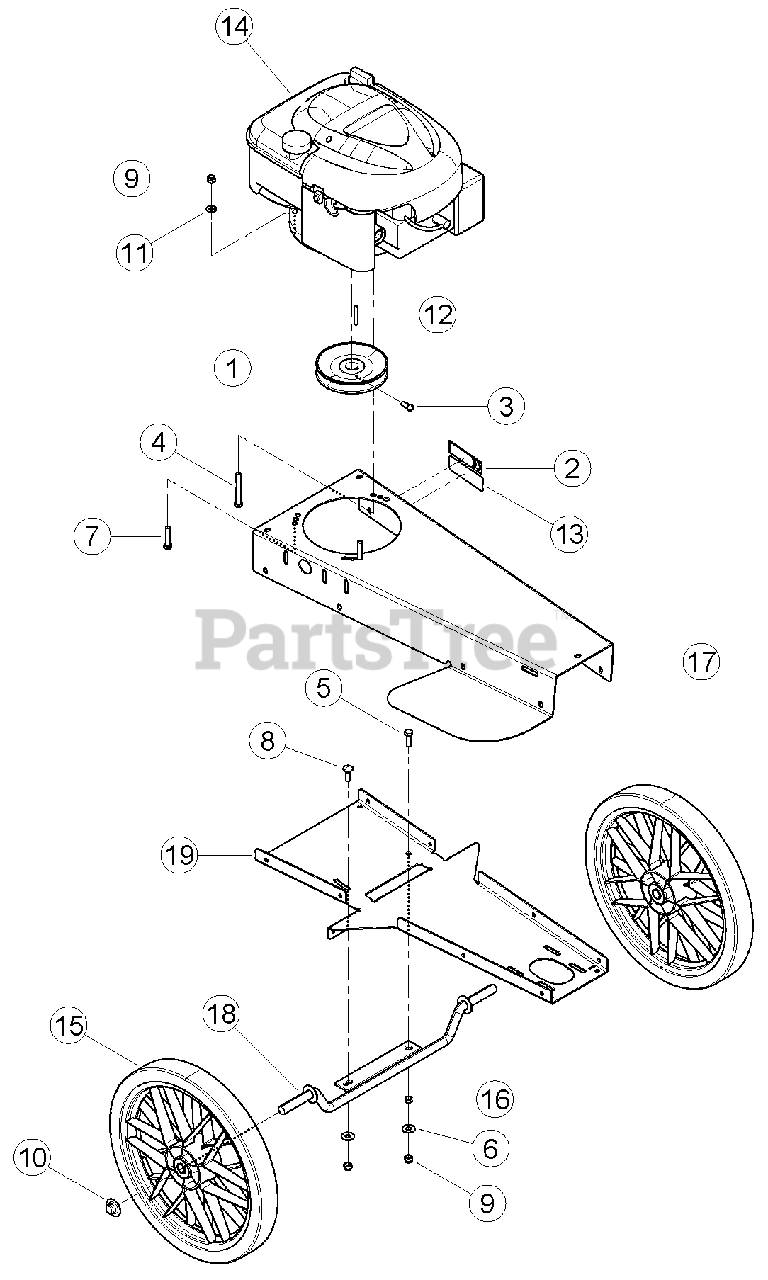

WT190 Drive (Push) (Part 1) Parts Diagram

  • Title

1

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$

$

Not available

2

14560-00

DECAL, 6.5 HP INFORMATION

$

$

Not available

3

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

4

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

9

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15406

PUSHNUT, 5/8 ZP

$2.49

$

In Stock, only 3 left!

0

11

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

12

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/2 LONG PLAIN

$1.49

$

Usually ships in 3-7 days

0

13

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

14

ENGINE, 6.5 HP QUANTUM HD 49 STATE (CALIF. EMISSION COMPLIANT) (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER.)

$

$

Not available

15

Bear Cat 18957-00

WHEEL, 15 INCH TRIMMER (BLACK)

$66.99

$

Usually ships in 3-7 days

0

16

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

17

Bear Cat 73630-35

BODY, TRIMMER

$193.99

$

Usually ships in 3-7 days

0

18

Bear Cat 75503-12

WELDMENT, TRIMMER AXLE

$92.99

$

Usually ships in 3-7 days

0

19

Bear Cat 75504-12

BOTTOM, TRIMMER FRAME

$156.99

$

Usually ships in 3-7 days

0
