WT 190 S - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190S Drive (Self-Propelled) (Part 1) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

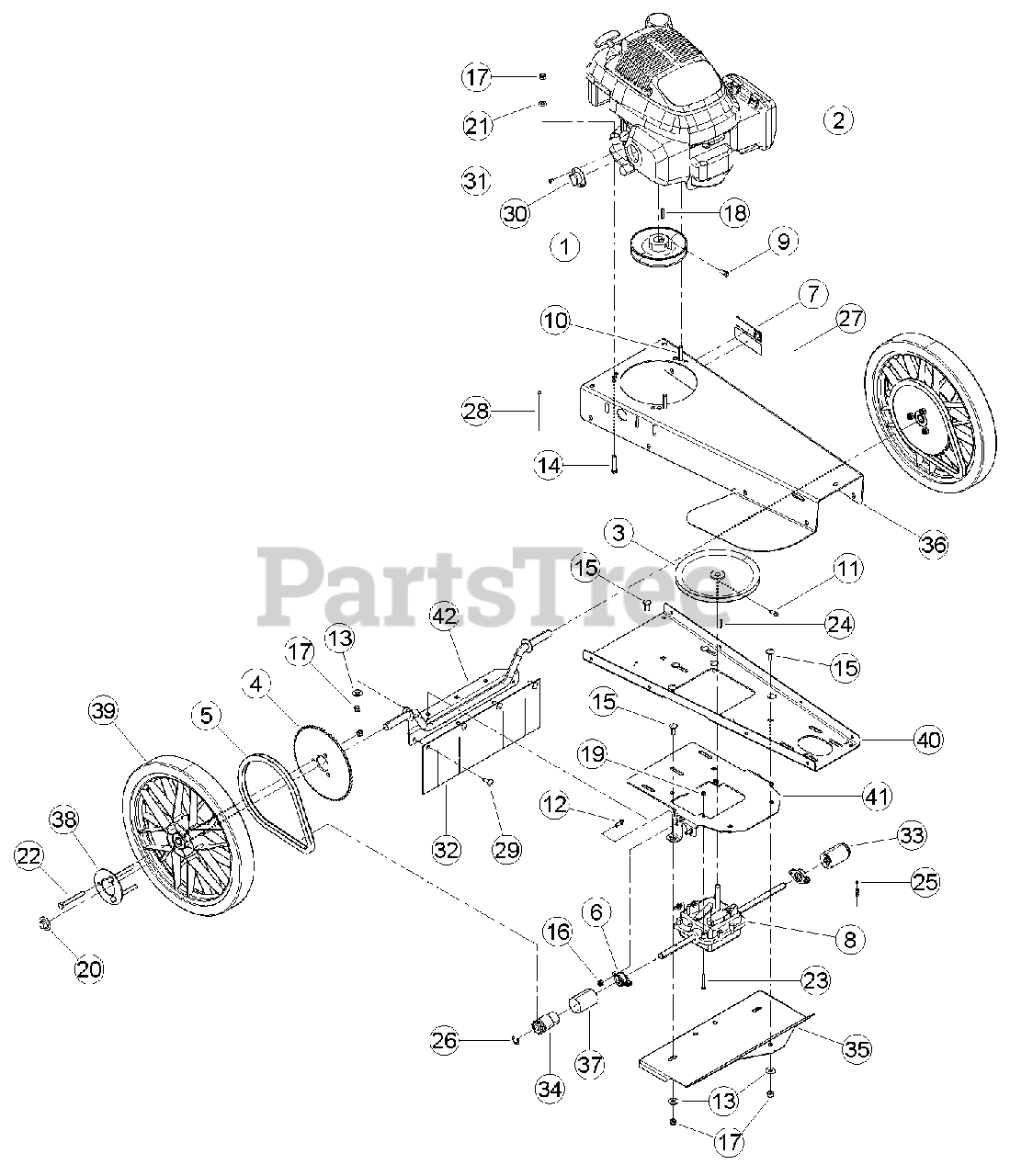

WT190S Drive (Self-Propelled) (Part 1) Parts Diagram

  • Title

1

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$

$

Not available

2

ENGINE, 6.5 HP QUANTUM HD 49 STATE (CALIF. EMISSION COMPLIANT) (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER.)

$

$

Not available

3

Bear Cat 12568

PULLEY, 7-1/2 X 12MM A GROOVE

$118.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12571

SPROCKET, 35A60 W/HOLES

$64.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12572

CHAIN, EZ TRIMMOWER

$33.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12574

BEARING, 1/2 FLANGE

$24.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14564-00

DECAL, 6.5 HP SP INFORMATION

$12.99

$

Usually ships in 3-7 days

0

8

TRANSMISSION, 3 SPEED (WAS 12834, REPLACED AND SUPER-SEDED. FOR SERVICE ORDER KIT 77791-00)

$

$

Not available

9

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

10

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

11

15180

SET SCREW, 1/4 X 5/8 SQ HD

$

$

Not available

12

15238

BOLT, 1/4 X 3/4 CRG GR5 ZP

$

$

Not available

13

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

14

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

15

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

16

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15372

KEY, 3/16 SQUARE X 1.00 LONG

$1.49

$

Usually ships in 3-7 days

0

19

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

20

Bear Cat 15406

PUSHNUT, 5/8 ZP

$2.49

$

In Stock, only 3 left!

0

21

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

22

15560

BOLT, 5/16 X 2-3/4 HCPS GR5

$

$

Not available

23

Bear Cat 15594

SCREW, #10X24 X 1-1/2 PAN PHP ZP

$0.99

$

Usually ships in 3-7 days

0

24

Bear Cat 15598

KEY, 4MM SQUARE X 20 MM

$2.99

$

Usually ships in 3-7 days

0

25

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

26

Bear Cat 15683-00

CLIP, 1/2" E

$1.99

$

Usually ships in 3-7 days

0

27

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

28

16900

STRAP, 4 IN. BLACK

$

$

Not available

29

Bear Cat 18950-00

RIVET, PLASTIC 1/4 X 7/8

$3.49

$

Usually ships in 3-7 days

0

32

Bear Cat 72723

FLAP, TRIMMER

$35.99

$

Usually ships in 3-7 days

0

33

Bear Cat 72989

WELDMENT, LH WHEEL CLUTCH

$173.99

$

Usually ships in 3-7 days

0

34

Bear Cat 72990

WELDMENT, RH WHEEL CLUTCH

$173.99

$

Usually ships in 3-7 days

0

35

PAN, TRIMMER BOTTOM (WAS 73266-12, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77789-12)

$

$

Not available

36

Bear Cat 73630-35

BODY, TRIMMER

$193.99

$

Usually ships in 3-7 days

0

37

Bear Cat 74836-00

TUBE, 1.5" X 2.125" HEAT SHRINK

$25.99

$

Usually ships in 3-7 days

0

38

Bear Cat 75512-12

SHEET, CAP WHEEL

$41.99

$

Usually ships in 3-7 days

0

39

Bear Cat 75534-00

ASSEMBLY, TRIMMER WHEEL

$86.99

$

In Stock, only 2 left!

0

40

76733-12

BOTTOM, TRIMMER FRAME

$

$

Not available

41

PLATE, TRANSMISSION (WAS 76734-12, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77790-12)

$

$

Not available

42

Bear Cat 76736-12

WELDMENT, TRIMMER AXLE

$111.99

$

Usually ships in 3-7 days

0
