WT 190 S - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190S Drive (Self-Propelled) (Part 2) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

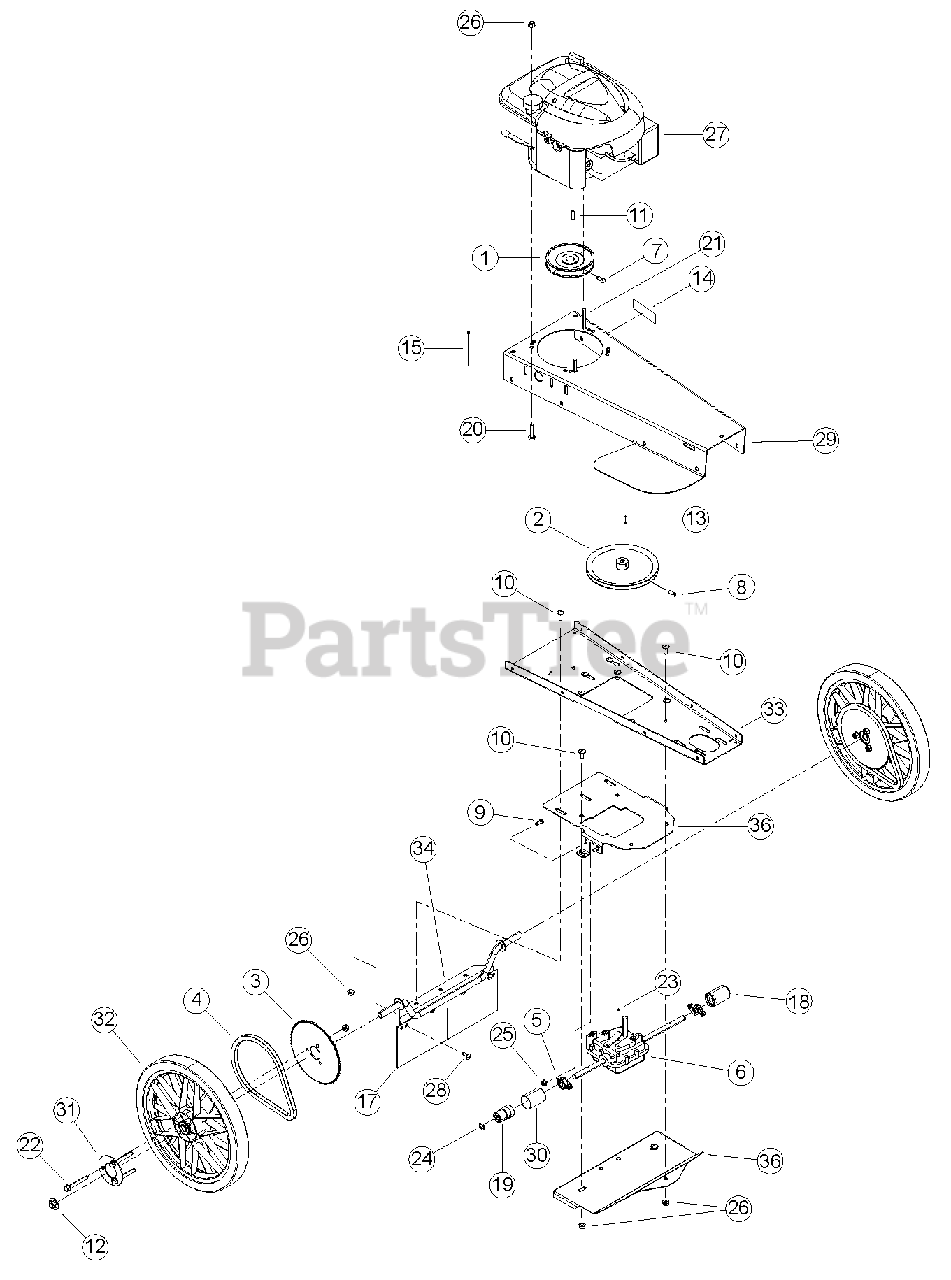

WT190S Drive (Self-Propelled) (Part 2) Parts Diagram

  • Title

1

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$54.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12568

PULLEY, 7-1/2 X 12MM A GROOVE

$112.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12571

SPROCKET, 35A60 W/HOLES

$61.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12572

CHAIN, EZ TRIMMOWER

$31.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12574

BEARING, 1/2 FLANGE

$21.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12834

TRANSMISSION, 3 SPEED SEE BULLETIN SIB 14 001

$351.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

8

15180

SET SCREW, 1/4 X 5/8 SQ HD

$

$

Not available

9

15238

BOLT, CARR 1/4 X 3/4 GR5 ZP

$

$

Not available

10

Bear Cat 15349

BOLT, CARR 5/16*7/8" GR5 NC ZP

$

$

Not available

11

Bear Cat 15372

SQUARE KEY, 3/16" X 1.00"LG

$1.49

$

Usually ships in 3-7 days

0

12

Bear Cat 15406

PUSHNUT, 5/8" ZP

$2.49

$

In Stock, only 3 left!

0

13

Bear Cat 15598

KEY, 4MM SQ X 20 MM

$2.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

15

16900

STRAP, 4 IN BLACK

$

$

Not available

16

17755

ANTI-SEIZE LUBRICANT 8 OZ BRUSH TOP BTL

Note: (NOT SHOWN)

$

$

Not available

17

Bear Cat 72723

FLAP, TRIMMER

$33.99

$

Usually ships in 3-7 days

0

18

Bear Cat 72989

WELDMENT, LH WHEEL CLUTCH

$164.99

$

Usually ships in 3-7 days

0

19

Bear Cat 72990

WELDMENT, RH WHEEL CLUTCH

$164.99

$

Usually ships in 3-7 days

0

20

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

21

15138-00

BOLT, 5/16 X 2-1/2 FLANGE NC

$

$

Not available

22

15144-00

BOLT, 5/16 X 2-3/4 FLANGE NC

$

$

Not available

23

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

24

Bear Cat 15683-00

CLIP, 1/2" E

$1.99

$

Usually ships in 3-7 days

0

25

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

26

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

27

ENGINE, 6.5 HP QUANTUM HD 50 STATE (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER.)

$

$

Not available

28

Bear Cat 18950-00

RIVET, PLASTIC 1/4 X 7/8

$3.49

$

In Stock, only 1 left!

0

29

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

30

Bear Cat 74836-00

TUBE, 1.5" X 2.125" HEAT SHRINK

$21.99

$

Usually ships in 3-7 days

0

31

Bear Cat 75512-12

SHEET, CAP WHEEL

$35.99

$

Usually ships in 3-7 days

0

32

Bear Cat 75534-00

ASSEMBLY, TRIMMER WHEEL

$82.99

$

In Stock, only 1 left!

0

33

76733-12

BOTTOM, TRIMMER FRAME

$

$

Not available

34

Bear Cat 76736-12

WELDMENT, TRIMMER AXLE

$99.99

$

Usually ships in 3-7 days

0

35

77789-12

PAN, TRIMMER BOTTOM

$

$

Not available

36

77790-12

PLATE, TRANSMISSION

$

$

Not available
