WT 190 T - Bear Cat Walk-Behind Trimmer with Tilt, 190cc Briggs & Stratton (SN: B00001 - C00897) WT190T Drive Parts Diagram

Walk-Behind Trimmer with Tilt, 190cc Briggs & Stratton

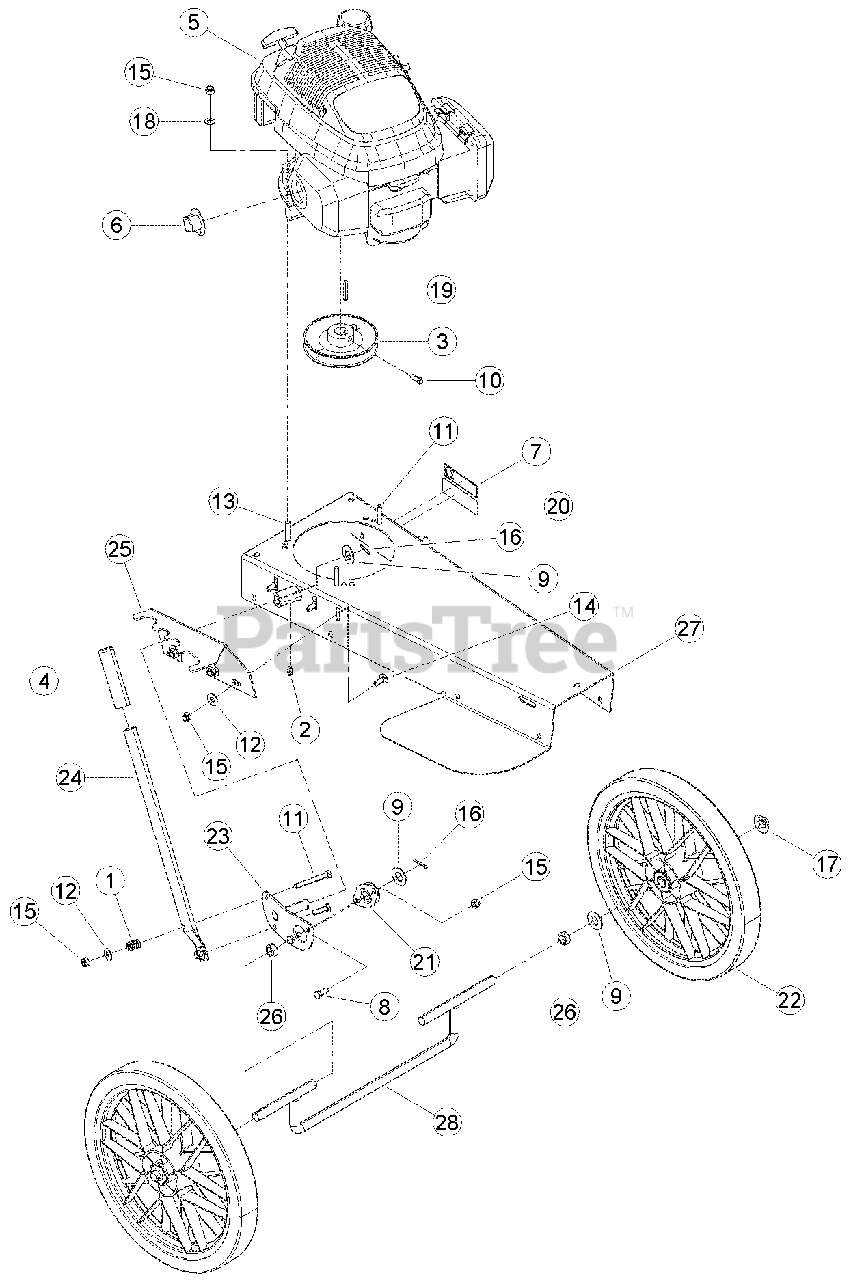

WT190T Drive Parts Diagram

  • Title

1

12177

SPRING, HEAVY DUTY COMPRESSION

$

$

Not available

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$

$

Not available

4

Bear Cat 12325

GRIP, TILT CONTROL

$20.99

$

Usually ships in 3-7 days

0

5

ENGINE, 6.5 HP QUANTUM HD 49 STATE (CALIF. EMISSION COMPLIANT) (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER.)

$

$

Not available

6

Bear Cat 12520

DEFLECTOR, EXHAUST

Note: (WT160T ONLY)

$20.99

$

Usually ships in 3-7 days

0

7

14563-00

DECAL, 6.5 HP TILT INFORMATION

$

$

Not available

8

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

9

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

10

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

11

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

15

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

17

Bear Cat 15406

PUSHNUT, 5/8 ZP

$2.49

$

In Stock, only 3 left!

0

18

15416

WASHER, 5/16 SAE FLT ZP

$

$

Not available

19

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/2 LONG PLAIN

$1.49

$

Usually ships in 3-7 days

0

20

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

21

Bear Cat 17897

BEARING, SIDE FLANGE MOUNT, 5/8

$36.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18957-00

WHEEL, 15 INCH TRIMMER (BLACK)

$66.99

$

Usually ships in 3-7 days

0

23

Bear Cat 72710-12

WELDMENT, AXLE PIVOT

$62.99

$

Usually ships in 3-7 days

0

24

Bear Cat 72724

HANDLE, TRIMMER HEIGHT ADJUST

$50.99

$

Usually ships in 3-7 days

0

25

Bear Cat 72736-12

PLATE, HANDLE LOCK

$49.99

$

Usually ships in 3-7 days

0

26

Bear Cat 72762-12

SPACER, 7/8 X .281

$6.49

$

Usually ships in 3-7 days

0

27

Bear Cat 73298-35

WELDMENT, TRIMMER BODY

$253.99

$

Usually ships in 3-7 days

0

28

Bear Cat 75505-12

WELDMENT, TRIMMER AXLE

$153.99

$

Usually ships in 3-7 days

0
