WT 190 T - Bear Cat Walk-Behind Trimmer with Tilt, 190cc Briggs & Stratton (SN: D04579 & Above) WT190T Drive (Push W/ Tilt) (Part 2) Parts Diagram

Walk-Behind Trimmer with Tilt, 190cc Briggs & Stratton

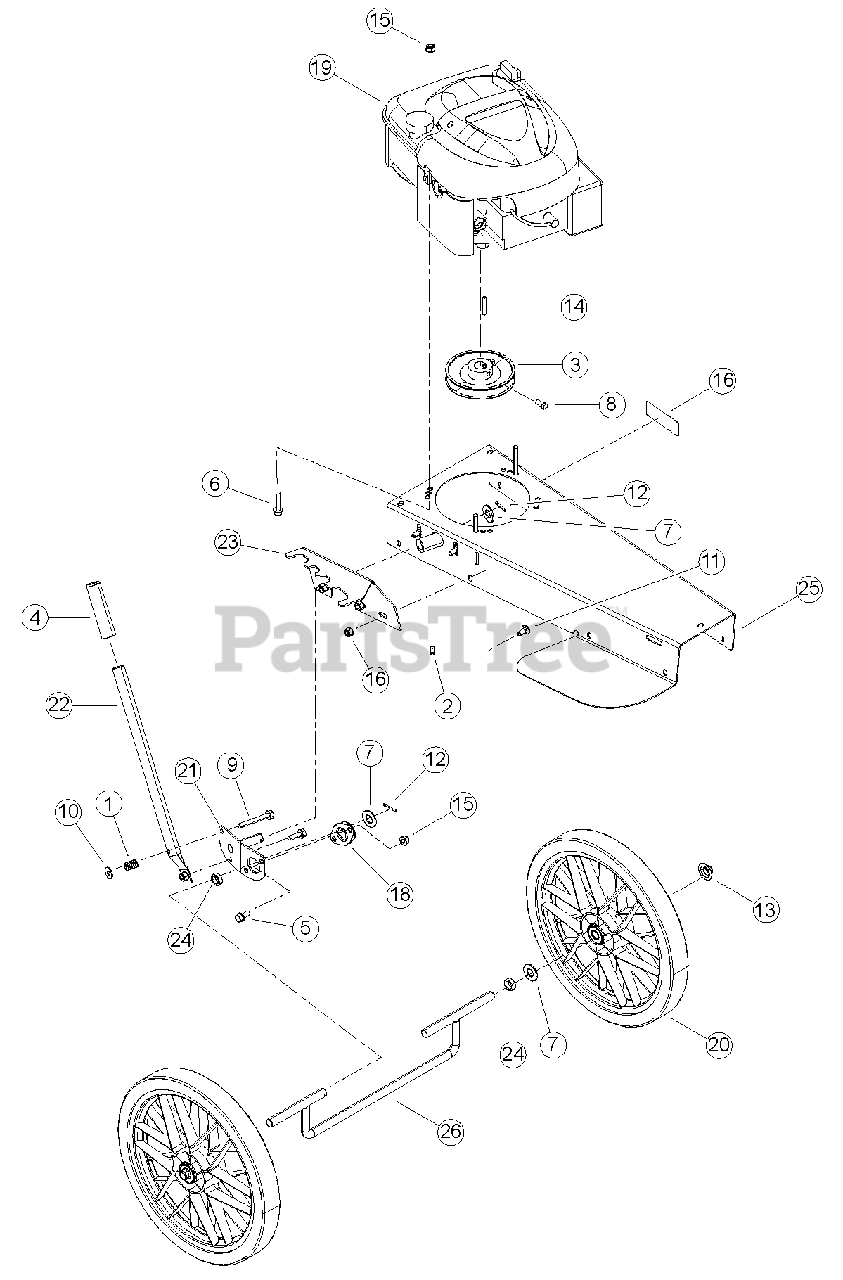

WT190T Drive (Push W/ Tilt) (Part 2) Parts Diagram

  • Title

1

12177

SPRING, HEAVY DUTY COMPRESSION

$

$

Not available

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$54.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12325

GRIP, TILT CONTROL

$19.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

6

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

7

15129

WASHER, 5/8" SAE FLAT ZP

$

$

Not available

8

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

9

15138-00

BOLT, 5/16 X 2-1/2 FLANGE NC

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

11

Bear Cat 15367

BOLT, 5/16X3/4 GR5 NC ZP CRG

$

$

Not available

12

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

13

Bear Cat 15406

PUSHNUT, 5/8" ZP

$2.49

$

In Stock, only 3 left!

0

14

Bear Cat 15434

KEY, SQUARE 3/16"*1-1/2"LG PLN

$1.49

$

Usually ships in 3-7 days

0

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

16

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

17

17755

ANTI-SEIZE LUBRICANT 8 OZ BRUSH TOP BTL

$

$

Not available

18

Bear Cat 17897

BEARING, SIDE FLNG MOUNT, 5/8"

$34.99

$

Usually ships in 3-7 days

0

19

ENGINE, 6.5 HP QUANTUM HD 50 STATE (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER.)

$

$

Not available

20

Bear Cat 18957-00

WHEEL, 15 INCH TRIMMER (BLACK)

$62.99

$

In Stock, only 1 left!

0

21

Bear Cat 72710-12

WELDMENT, AXLE PIVOT

$54.99

$

Usually ships in 3-7 days

0

22

Bear Cat 72724

HANDLE, TRIMMER HEIGHT ADJUST

$48.99

$

Usually ships in 3-7 days

0

23

Bear Cat 72736-12

PLATE, HANDLE LOCK

$46.99

$

Usually ships in 3-7 days

0

24

Bear Cat 72762-12

SPACER, 7/8 X .281

$6.49

$

Usually ships in 3-7 days

0

25

Bear Cat 73298-35

WELDMENT, TRIMMER BODY

$241.99

$

Usually ships in 3-7 days

0

26

Bear Cat 75505-12

WELDMENT, TRIMMER AXLE

$135.99

$

Usually ships in 3-7 days

0
