WT 24 S - Bear Cat Walk-Behind Trimmer, 190cc Subaru (SN: C08287 - D03241) Drive (Part 2) Parts Diagram

Walk-Behind Trimmer, 190cc Subaru

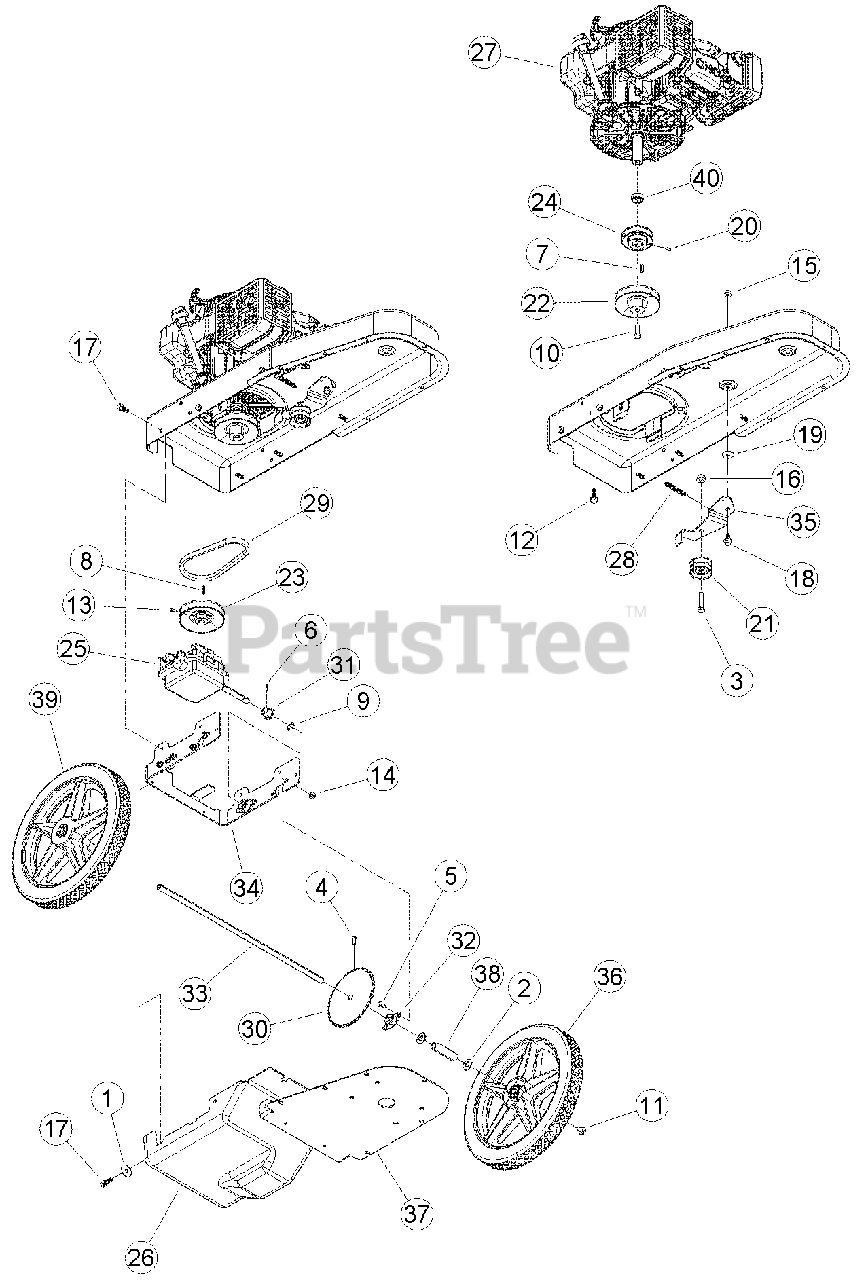

Drive (Part 2) Parts Diagram

  • Title

1

Bear Cat 15040

WASHER, 5/16 FENDER

$0.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

3

Bear Cat 15141

BOLT, 3/8 X 1-3/4 HEX NC

$

$

Not available

4

15180

SCREW, 1/4 X 5/8 SQ HD SET

$

$

Not available

5

Bear Cat 15348

BOLT, 1/4 X 5/8 CRG

$

$

Not available

6

Bear Cat 15410

PIN, 1/8 X 3/4 IN. SPRING LOCK

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15432

KEY, 3/16 SQUARE X 3/4 LONG

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15598

KEY, 4 MM SQUARE X 20 MM LONG

$2.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15683-00

CLIP, 1/2" E

$1.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15697-00

BOLT, 3/8 X 1 HEX GR8 NF ZP

$

$

Not available

11

Bear Cat 15854-00

BOLT, 5/16-18 X 1/2 HEX GR5 SER/FLN

$1.49

$

Usually ships in 3-7 days

0

12

Bear Cat 15877-00

SCREW, 3/8-16 X 1 INZP THREAD ROLLING

$2.49

$

Usually ships in 3-7 days

0

13

Bear Cat 15884-00

SCREW, 3/16 X 1/2 SQ HD CUP PT SET

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 15907-00

SCREW, 5/16-18 X 1 INZP THREAD ROLLING

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15913-00

BOLT, .150, 5/16-18 X 3/4 ZP FLANGE SHOULDER

$

$

Not available

19

Bear Cat 15914-00

WASHER, 1.062 OD X .329 ID X .062 FLAT ZP

$2.99

$

Usually ships in 3-7 days

0

20

15922-00

SET SCREW, 10-24 X 3/8 CUP PT SKT

$

$

Not available

21

Bear Cat 31770-00

IDLER, 1-7/8 DOUBLE FLANGE

$21.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31771-00

PULLEY, 4.0 X 7/8 BOREB GROOVE CAPPED

$

$

Not available

23

Bear Cat 31773-00

PULLEY, 4"X 12 MM AB

$

$

Not available

24

Bear Cat 31774-00

PULLEY, 2-3/4X 7/8 AB

$

$

Not available

25

Bear Cat 31781-00

TRANSMISSION, 3-SPEED TRIMMER

$259.99

$

Usually ships in 3-7 days

0

26

Bear Cat 31786-00

COVER, UNDERCARRIAGE

$75.99

$

Usually ships in 3-7 days

0

27

ENGINE, SUBARU EA190V (FOR SERVICE CONSULT ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER.)

$

$

Not available

28

Bear Cat 32020-00

SPRING, IDLER EXTENSION

$

$

Not available

29

Bear Cat 32124-00

BELT, 4L180 ARIMID

$34.99

$

Usually ships in 3-7 days

0

30

Bear Cat 32126-00

SPROCKET, 35B 48T

$50.99

$

Usually ships in 3-7 days

0

31

Bear Cat 32127-00

SPROCKET, 35B 9T

$25.99

$

Usually ships in 3-7 days

0

32

Bear Cat 32393-00

BEARING, 1/2 INCH FLANGE

$

$

Not available

33

Bear Cat 77156-00

AXLE, TRIMMER

$

$

Not available

34

77240-12

PLATE, TRANSMISSION BASE

$

$

Not available

35

Bear Cat 77243-00

BRACKET, IDLER ENGAGEMENT

$27.99

$

Usually ships in 3-7 days

0

36

ASSEMBLY, SP TRIMMER WHEEL - RH (FOR SERVICE ORDER PN 77713-00)

$

$

Not available

37

Bear Cat 77496-12

PLATE, TRIMMER BASE

$

$

Not available

38

77533-12

SPACER, TRIMMER AXLE

$

$

Not available

39

ASSEMBLY, SP TRIMMER WHEEL - LH (FOR SERVICE ORDER PN 77713-00)

$

$

Not available

40

Bear Cat 77593-00

TUBE, 1-1/16 OD X 0.82 X .455

$20.99

$

Usually ships in 3-7 days

0

Bear Cat 32125-00

CHAIN, #35X 54 PITCH W/CLINK

Note: (NOT SHOWN)

$

$

Not available
