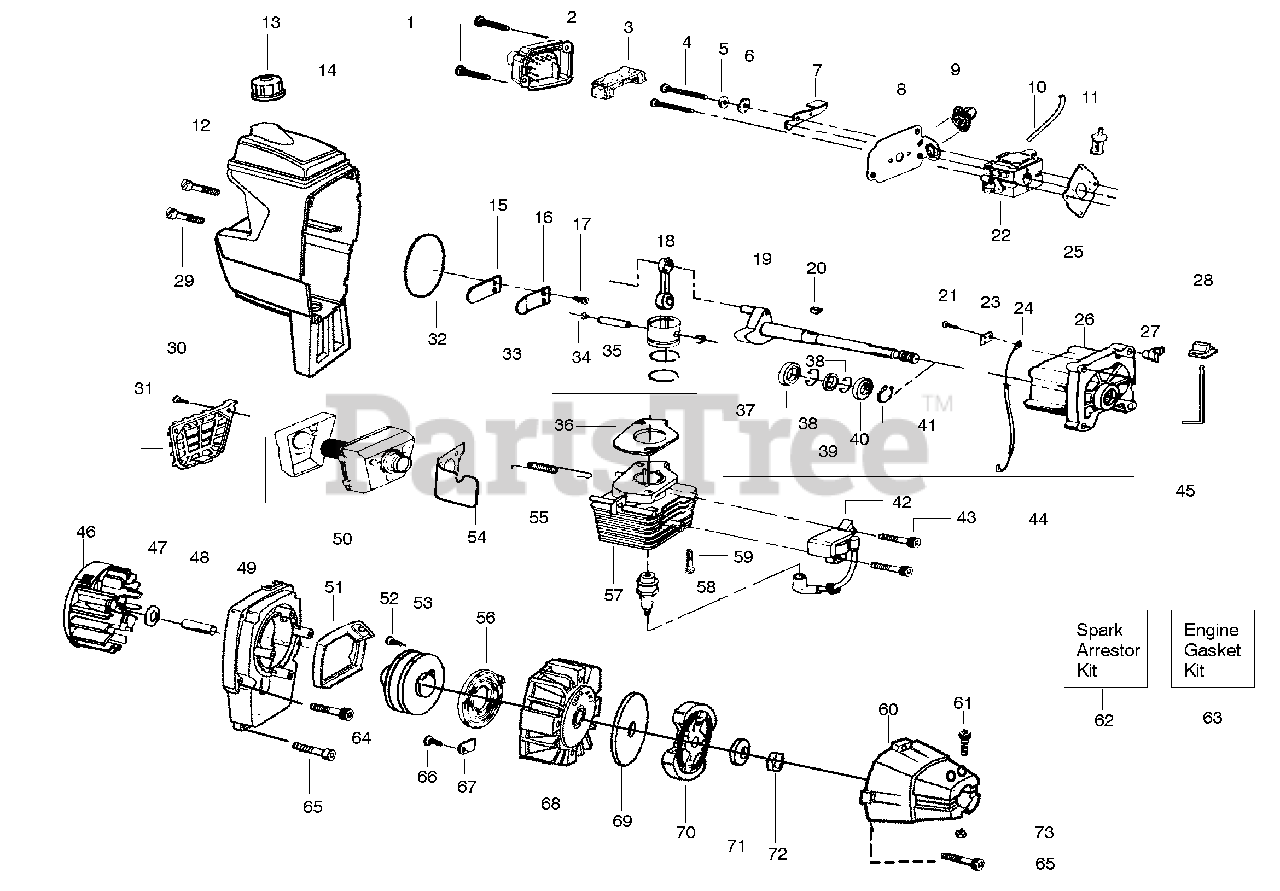

WT 3100 - Poulan Wheeled Trimmer (2008-06) Engine Parts Diagram

Wheeled Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530015650

Screw

$

$

Not available

2

Electrolux/AYP 530054589

Cover-Air Filter

$

$

Not available

3

Electrolux/AYP 530054627

Foam-Air Filter

$4.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 530038103

Shutter-Choke

$

$

Not available

8

Electrolux/AYP 530054594

Plate-Choke

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530047721

Assy-Bulb

$6.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530069599

Kit-Fuel Line

$7.49

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 530014347

Assy-Fuel Cap.

$8.99

$

In Stock, Qty 5

0

14

Electrolux/AYP 530054651

Assy-Shroud/Tank

$

$

Not available

15

Electrolux/AYP 530027593

Valve-Reed

$6.49

$

In Stock, only 4 left!

0

16

Electrolux/AYP 530054596

Stop-Reed Valve

$

$

Not available

17

Electrolux/AYP 530016064

Screw

$4.99

$

In Stock, Qty 7

0

18

Electrolux/AYP 530010960

Assy-Connecting Rod

$18.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530010934

Assy-Crankshaft

$34.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530071332

Kit-Carburetor Ass'y. (WT-583)
(Superseded to 530071638)

$80.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530071638

Kit-Carburetor Ass'y. (WT-629)

$80.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530027546

Insulator-Switch

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530027547

Assy-Leadwire

$

$

Not available

25

Electrolux/AYP 530069276

Gasket-Carb.(kit)

$

$

Not available

26

Electrolux/AYP 530012514

Assy-Crankcase.
(Superseded to 545081901)

Note: (Incls. 37-40)

$

$

Not available

27

Electrolux/AYP 530027545

Ramp-Switch

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530038309

Cover-Switch

$4.99

$

In Stock, Qty 8

0

29

Electrolux/AYP 530015771

Screw

$6.49

$

In Stock, Qty 6

0

30

Electrolux/AYP 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530027781

Guard-Muffler

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530069276

O-ring-C'case(kit)

$

$

Not available

33

Electrolux/AYP 530071999

Kit-Piston

$36.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530012595

Piston Ring (2)

$

$

Not available

36

Electrolux/AYP 530069276

Gasket-Cyl. (kit)

$

$

Not available

37

Electrolux/AYP 530032103

Bearing-Inner
(Superseded to 545081601)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530015787

Ring-Retaining

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 530019158

Seal-Crankshaft

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530032102

Bearing-Outer

$

$

Not available

41

Electrolux/AYP 530015789

Retaining Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530039134

Module-Ignition

$

$

Not available

43

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, Qty 5

0

44

Electrolux/AYP 530071705

Assy-C'case/C'shaft

Note: (Incls.19, 26 & 37-41)

$

$

Not available

45

Electrolux/AYP 530027959

Spring-Switch

$

$

Not available

46

Electrolux/AYP 530039189

Assy-Flywheel

$

$

Not available

47

Electrolux/AYP 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530027511

Spacer-Clutch

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530027948

Housing-Fan

$15.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530069310

Kit-Muffler

$

$

Not available

51

Electrolux/AYP 530054723

Assy-Retainer/Eyelet

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530016392

Screw

$4.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 530071387

Kit-Starter Pulley

Note: (Incls. 52)

$

$

Not available

54

Electrolux/AYP 530053346

Heat Shield/Air Dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

55

Electrolux/AYP 530036409

Spring-Muffler

$

$

Not available

56

Electrolux/AYP 530027531

Spring-Starter
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

57

Electrolux/AYP 530071581

Kit-Cylinder

$78.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

59

Electrolux/AYP 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 530014017

Assy-Clutch Housing

$36.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 952701612

Kit-Spark Arrestor

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 530069276

Kit-Engine Gasket

Note: (Incls. 25, 32 & 36)

$

$

Not available

64

Electrolux/AYP 530016315

Screw

$2.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 530015770

Screw
(Superseded to 530016406)

$6.49

$

In Stock, only 1 left!

0

66

Electrolux/AYP 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 530014009

Assy-Pulley Housing

$

$

Not available

69

Electrolux/AYP 530094189

Washer-Clutch

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 530069254

Kit-Clutch Ass'y.

$

$

Not available

71

Electrolux/AYP 530015796

Washer-Bevel

$3.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 530016320

Nut

$

$

Not available

73

Electrolux/AYP 530015768

Locknut.

$6.49

$

In Stock, only 2 left!

0
