WT30 C (G300) - Honda Water Pump, Made in Japan (SN: G300-1212874 - G300-9999999) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

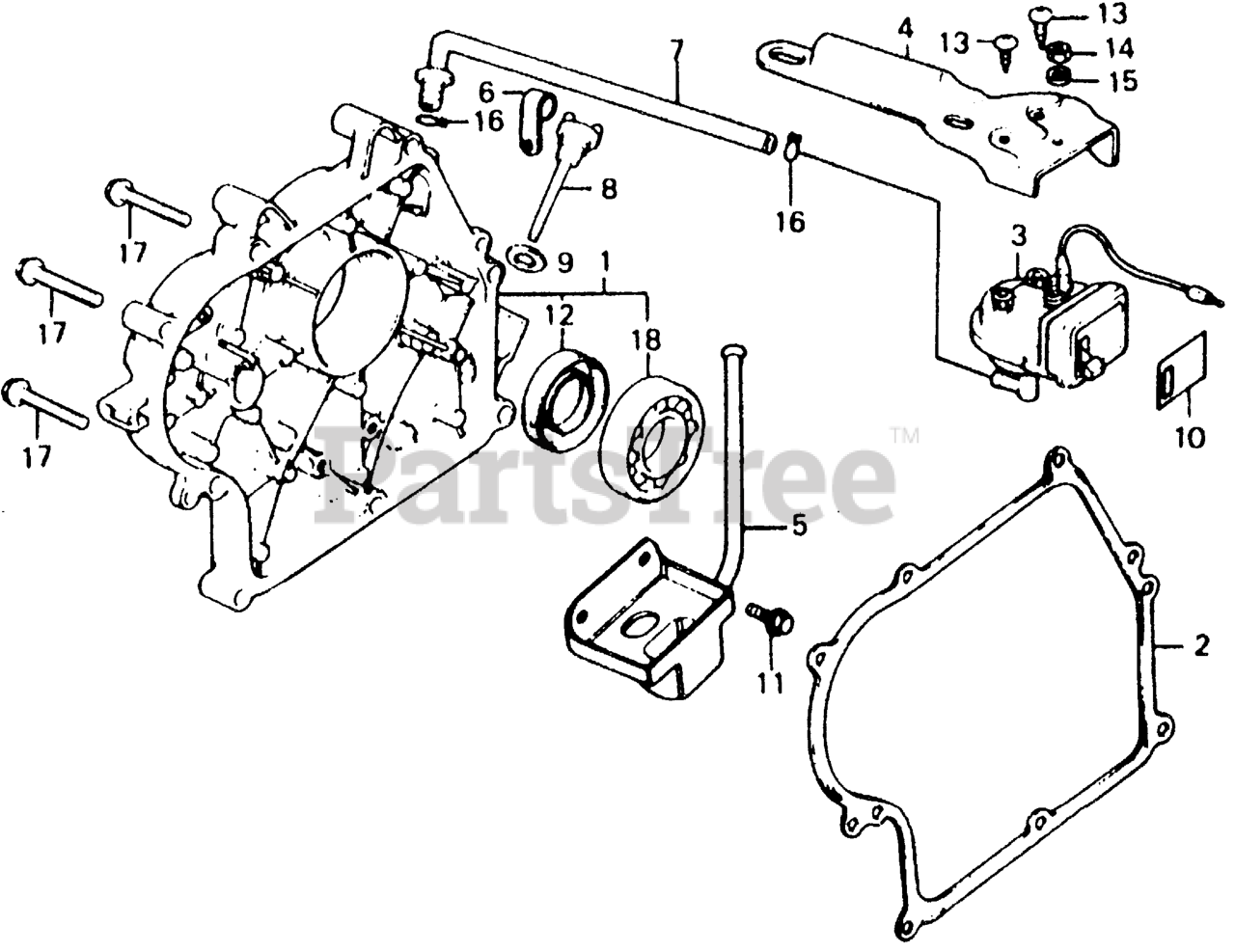

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11310-889-850

COVER, CRANKCASE (WKZ-TYPE)

$

$

Not available

2

Honda 11381-889-800

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 4452298).

$15.99

$

Usually ships in 3-6 days

0

3

Honda 15520-883-881

SWITCH ASSY., UNIT (Honda Code 1237536).

$98.99

$

Usually ships in 3-6 days

0

4

Honda 15521-883-890

BRACKET, UNIT SWITCH (Honda Code 1108166).

$34.99

$

Usually ships in 3-6 days

0

5

Honda 15525-889-892

CUP, OIL (Honda Code 1114818).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 15529-889-890

CLAMP, TUBE (Honda Code 1114826).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 15530-889-891

SEE PART DETAILS - PRI; TUBE, OIL ALERT (Honda Code 1203975).

$26.99

$

Usually ships in 3-6 days

0

8

Honda 15620-890-000

CAP, OIL FILLER (Honda Code 0755025).

$

$

Not available

9

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Use from Engine SN 1391010.

$5.49

$

In Stock, Qty 7

0

10

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH) (Honda Code 0636811).

$4.99

$

In Stock, Qty 10

0

11

Honda 90061-161-000

BOLT, FLANGE (6X16) (Honda Code 0810069).

$3.99

$

Usually ships in 3-6 days

0

12

Honda 91201-889-003

SEE PART DETAILS - PRI; OIL SEAL (30X45X8)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 93903-25180

SEE PART DETAILS - PRI; SCREW, TAPPING (5X10) (Honda Code 0565218).

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94001-050800S

NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$1.99

$

In Stock, Qty 20+

0

17

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$28.99

$

Usually ships in 3-6 days

0
