WT30 X C (GC04) - Honda Water Pump, Made in Japan (SN: GC04-1000001 - GC04-9999999) WT30X CYLINDER Parts Diagram

Water Pump, Made in Japan

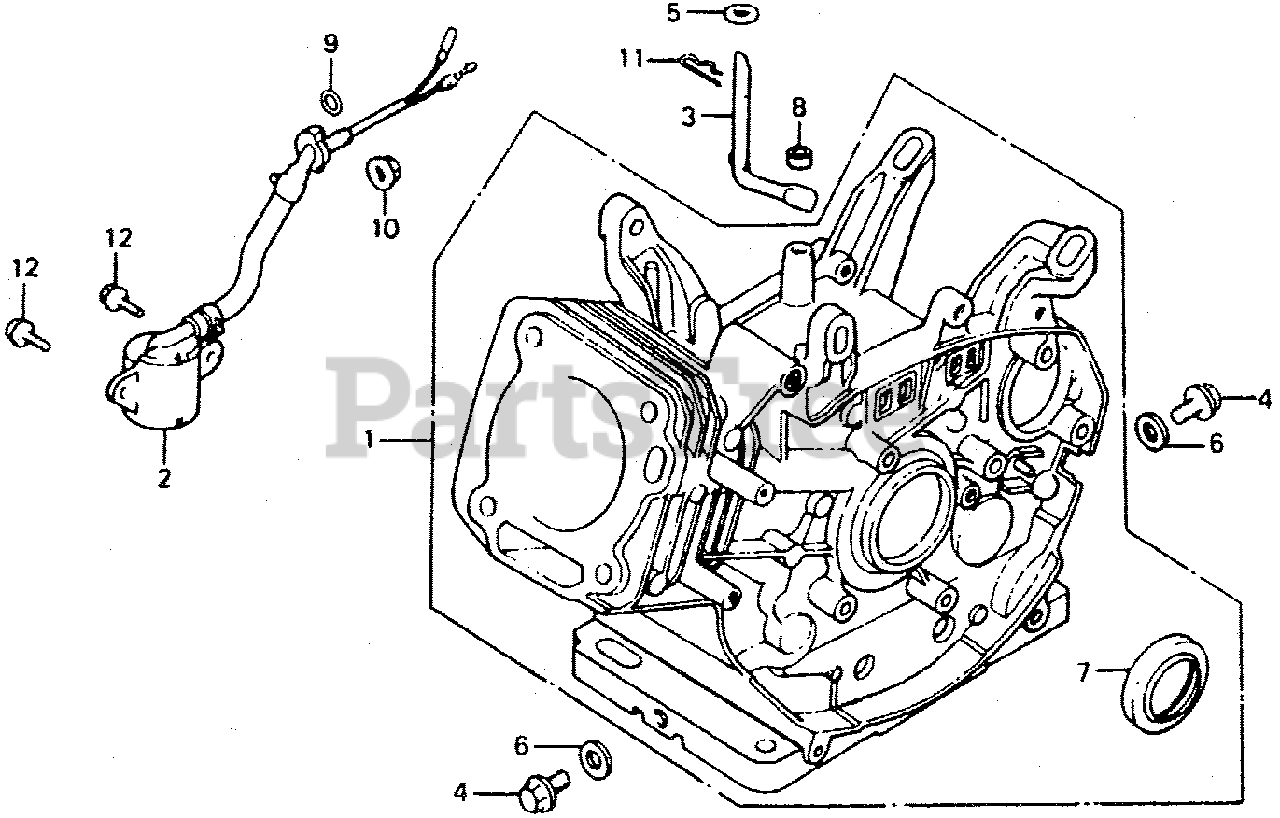

WT30X CYLINDER Parts Diagram

  • Title

NI

Honda 06165-ZE2-000

SEE PART DETAILS - SUP; GOVERNOR KIT (STD)
(Superseded to 06165-ZE2-020)

$20.99

$

Usually ships in 3-6 days

0

NI

Honda 06165-ZE2-010

SEE PART DETAILS - SUP; GOVERNOR KIT (STD)
(Superseded to 06165-ZE2-020)

$20.99

$

Usually ships in 3-6 days

0

NI

Honda 06165-ZE2-020

SEE PART DETAILS - PRI; GOVERNOR KIT (STD)

$20.99

$

Usually ships in 3-6 days

0

1

Honda 12000-ZE2-406

SEE PART DETAILS - PRI; CYLINDER ASSY.

$779.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-043)

$69.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

$69.99

$

In Stock, only 2 left!

0

3

Honda 16541-ZE2-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

4

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$5.99

$

In Stock, only 2 left!

0

5

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM)

$3.99

$

In Stock, only 1 left!

0

7

Honda 91201-890-003

OIL SEAL (30X46X8)

$12.99

$

In Stock, only 1 left!

0

8

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.99

$

In Stock, only 2 left!

0

8

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.99

$

In Stock, only 2 left!

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

10

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

11

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

12

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 18

0
