WT30 X C (GC04) - Honda Water Pump, Made in Japan (SN: GC04-1000001 - GC04-9999999) WT30X CYLINDER HEAD Parts Diagram

Water Pump, Made in Japan

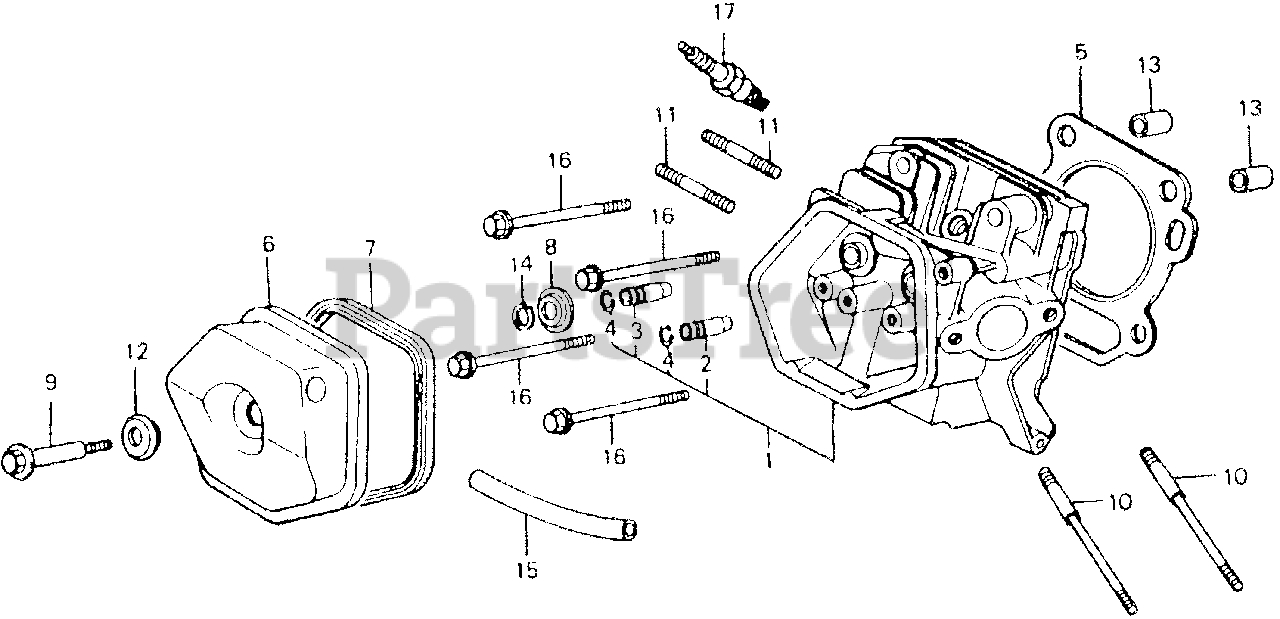

WT30X CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE2-030

SEE PART DETAILS - PRI; CYLINDER HEAD

$

$

Not available

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OS)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE2-801)

$13.99

$

In Stock, only 1 left!

0

6

Honda 04108-ZE2-000

SEE PART DETAILS - PRI; COVER KIT, HEAD

$

$

Not available

7

Honda 12391-ZE2-000

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD COVER
(Superseded to 12391-ZE2-020)

Note: Use up to Engine SN 1086328.

$10.99

$

In Stock, Qty 20+

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER

$10.99

$

In Stock, Qty 20+

0

8

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$3.49

$

In Stock, only 4 left!

0

9

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90042-ZE2-000

BOLT, STUD (8X123)

$8.49

$

In Stock, only 3 left!

0

11

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD

$3.99

$

Usually ships in 3-6 days

0

11

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32)

$2.99

$

In Stock, Qty 7

0

12

Honda 90441-ZE2-010

WASHER, HEAD COVER

$5.99

$

In Stock, Qty 5

0

13

Honda 94301-12200

PIN A, DOWEL (12X20)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 94510-11000

CIRCLIP (OUTER) (11MM)

$0.99

$

Usually ships in 3-6 days

0

15

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (11X105)

$35.99

$

In Stock, only 1 left!

0

16

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$3.99

$

In Stock, only 4 left!

0

17

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

17

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

17

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, only 1 left!

0
