WT40 XK2 AC/A (WACJ) - Honda Water Pump, Made in Japan (SN: WACJ-1100001 - WACJ-9999999) CASING@IMPELLER (WT40XK2/XK3) Parts Diagram

Water Pump, Made in Japan

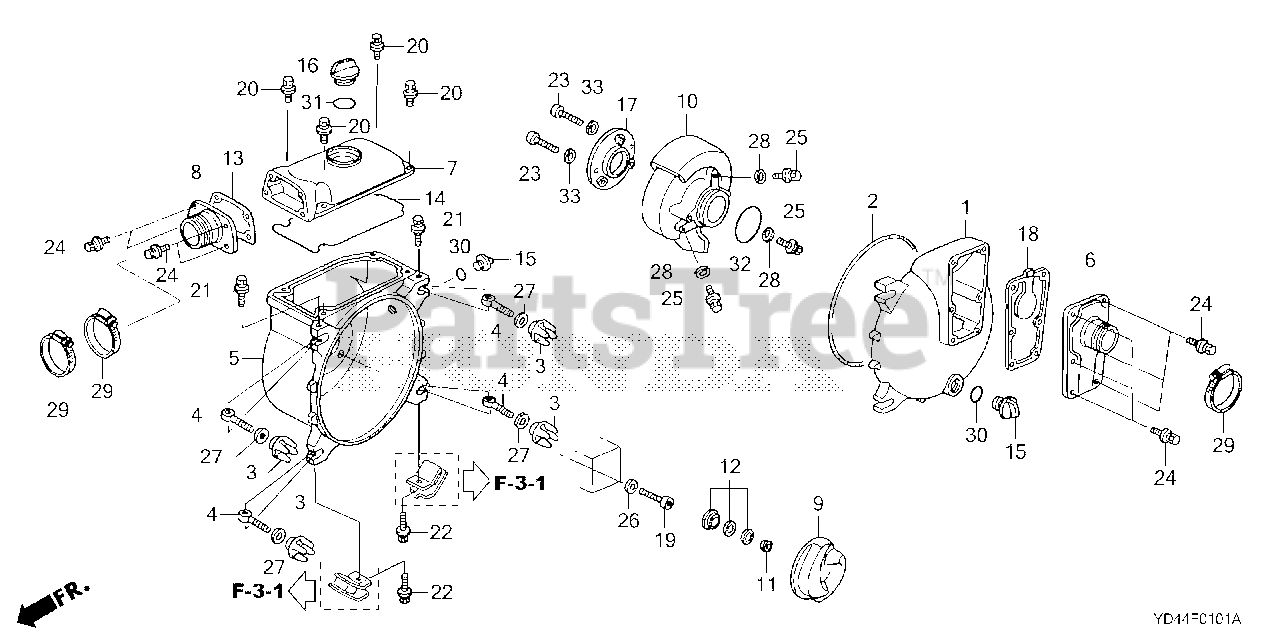

CASING@IMPELLER (WT40XK2/XK3) Parts Diagram

  • Title

1

Honda 63511-YG2-013

COVER, FR.

$291.99

$

Usually ships in 3-6 days

0

2

Honda 63512-YG0-003

GASKET, FR. COVER

$9.99

$

In Stock, only 1 left!

0

3

Honda 63523-YG0-003

KNOB, FR. COVER

$19.99

$

Usually ships in 3-6 days

0

4

Honda 63524-YG0-003

BOLT, FR. COVER SETTING

$9.99

$

Usually ships in 3-6 days

0

5

Honda 78101-YG2-023

CASING

$244.99

$

Usually ships in 3-6 days

0

6

Honda 78103-YG2-013

INLET

$180.99

$

Usually ships in 3-6 days

0

7

Honda 78104-YG2-003

OUTLET

$55.99

$

Usually ships in 3-6 days

0

8

Honda 78105-YG2-003

OUTLET

$143.99

$

Usually ships in 3-6 days

0

9

Honda 78106-YG2-003

IMPELLER

$784.99

$

Usually ships in 3-6 days

0

10

Honda 78107-YG2-003

SEE PART DETAILS - SUP; CASE, VOLUTE
(Superseded to 78107-YG2-023)

Note: Use up to Frame SN 1105131.

$628.99

$

Usually ships in 3-6 days

0

10

Honda 78107-YG2-023

SEE PART DETAILS - PRI; CASE, VOLUTE

$628.99

$

Usually ships in 3-6 days

0

10

Honda 78107-YG2-023

SEE PART DETAILS - PRI; CASE, VOLUTE

Note: Use from Frame SN 1105132.

$628.99

$

Usually ships in 3-6 days

0

11

Honda 78122-YG2-003

WASHER, SHIM

$2.99

$

Usually ships in 3-6 days

0

12

Honda 78130-YG1-003

SEAL ASSY., MECHANICAL

$182.99

$

In Stock, only 1 left!

0

13

Honda 78136-YG2-003

GASKET, OUTLET

$16.99

$

Usually ships in 3-6 days

0

14

Honda 78137-YG0-003

GASKET, HEAD

$6.99

$

In Stock, only 1 left!

0

15

Honda 78184-YG0-003

CAP, PLUG (32MM)

$5.49

$

In Stock, only 3 left!

0

16

Honda 78187-YG0-003

CAP, PLUG (40MM)

$9.99

$

In Stock, Qty 8

0

17

Honda 78194-YG2-003

SEE PART DETAILS - SUP; PLATE, WEAR
(Superseded to 78194-YG2-013)

Note: Use up to Frame SN 1105131.

$49.99

$

Usually ships in 3-6 days

0

17

Honda 78194-YG2-013

SEE PART DETAILS - PRI; PLATE, WEAR

$49.99

$

Usually ships in 3-6 days

0

18

Honda 78313-YG2-003

GASKET, HOSE COUPLING

$17.99

$

In Stock, only 1 left!

0

19

Honda 90110-YG2-003

BOLT, SOCKET (8X50)

$2.99

$

In Stock, Qty 8

0

20

Honda 90102-YG0-003

BOLT-WASHER (10X30)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90103-YG0-003

BOLT-WASHER (12X45)

$2.99

$

In Stock, Qty 11

0

22

Honda 90103-YG2-003

BOLT-WASHER (12X50)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90101-YG1-811

SEE PART DETAILS - PRI; BOLT, SOCKET (8X35)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90104-YG2-003

SEE PART DETAILS - SUP; BOLT, SOCKET (8X35)
(Superseded to 90101-YG1-811)

Note: Use up to Frame SN 1120494.

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90108-YG2-003

BOLT-WASHER (12X35)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90109-YG2-003

BOLT-WASHER (6X20)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90504-YG0-003

WASHER (8MM) (AL.)

$2.99

$

In Stock, only 4 left!

0

27

Honda 90502-YG0-003

WASHER, PLAIN

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90503-YG2-003

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 90601-YG2-003

BAND

$13.99

$

Usually ships in 3-6 days

0

30

Honda 91351-YG0-003

O-RING (32MM)

$2.49

$

In Stock, Qty 6

0

31

Honda 91352-YG0-003

O-RING (40MM)

$2.49

$

In Stock, only 3 left!

0

32

Honda 91353-YG2-003

O-RING

$6.49

$

Usually ships in 3-6 days

0

33

Honda 22254-ZN4-003

WASHER, CLUTCH (8MM)

Note: Use from Frame SN 1120495.

$1.99

$

Usually ships in 3-6 days

0
