WV 190 - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: D00001 - E05370) WV190 Engine & Fan Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

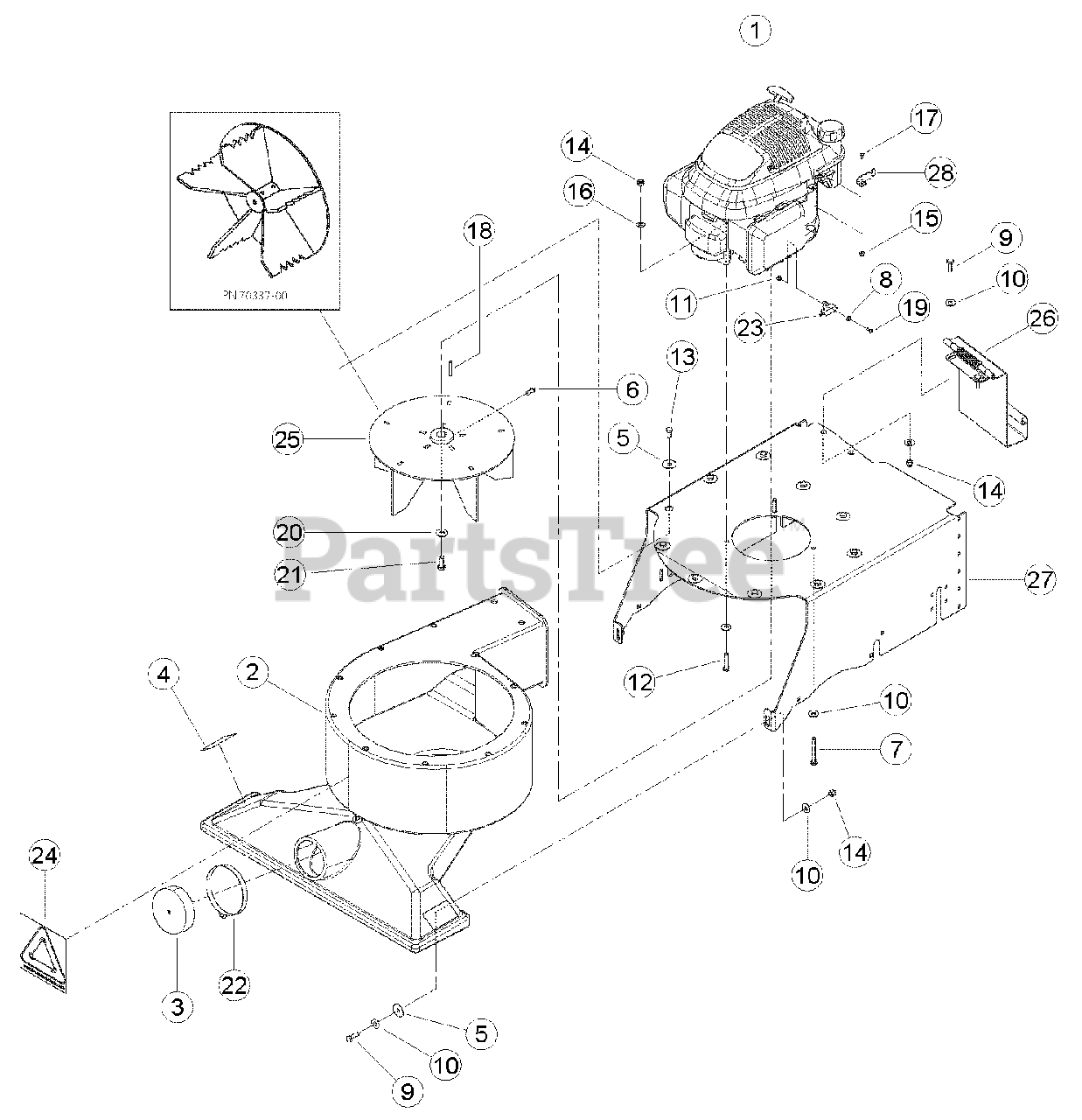

WV190 Engine & Fan Parts Diagram

  • Title

1

ENGINE, 5.5 HP HONDA GCV (FOR SERVICE SEE ENGINE OWNER"S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER)

$

$

Not available

2

Bear Cat 13816-00

HOUSING, FAN W/INTAKE
(Superseded to 73714-00)

$417.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13850-00

CAP, ROUND VINYL (4 X 1)

$20.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13890-00

DECAL, DANGER

$9.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

7

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

12

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

13

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

16

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

18

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/4 LONG PLAIN

$1.49

$

Usually ships in 3-7 days

0

20

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

21

Bear Cat 15697-00

BOLT, 3/8 X 1 HHCS GR5 NF ZP

$

$

Not available

22

Bear Cat 16196

CLAMP, 4 IN. HOSE

$

$

Not available

24

Bear Cat 31390-00

DECAL, COLLECT IT

$36.99

$

Usually ships in 3-7 days

0

25

WELDMENT, BEARVAC ROTOR (WAS 73612-00, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 70337-00)

$

$

Not available

26

Bear Cat 73645-00

ASSEMBLY, EXHAUST DOOR

$241.99

$

Usually ships in 3-7 days

0

27

76685-35

SUPPORT, BEARVAC FRAME

$

$

Not available
