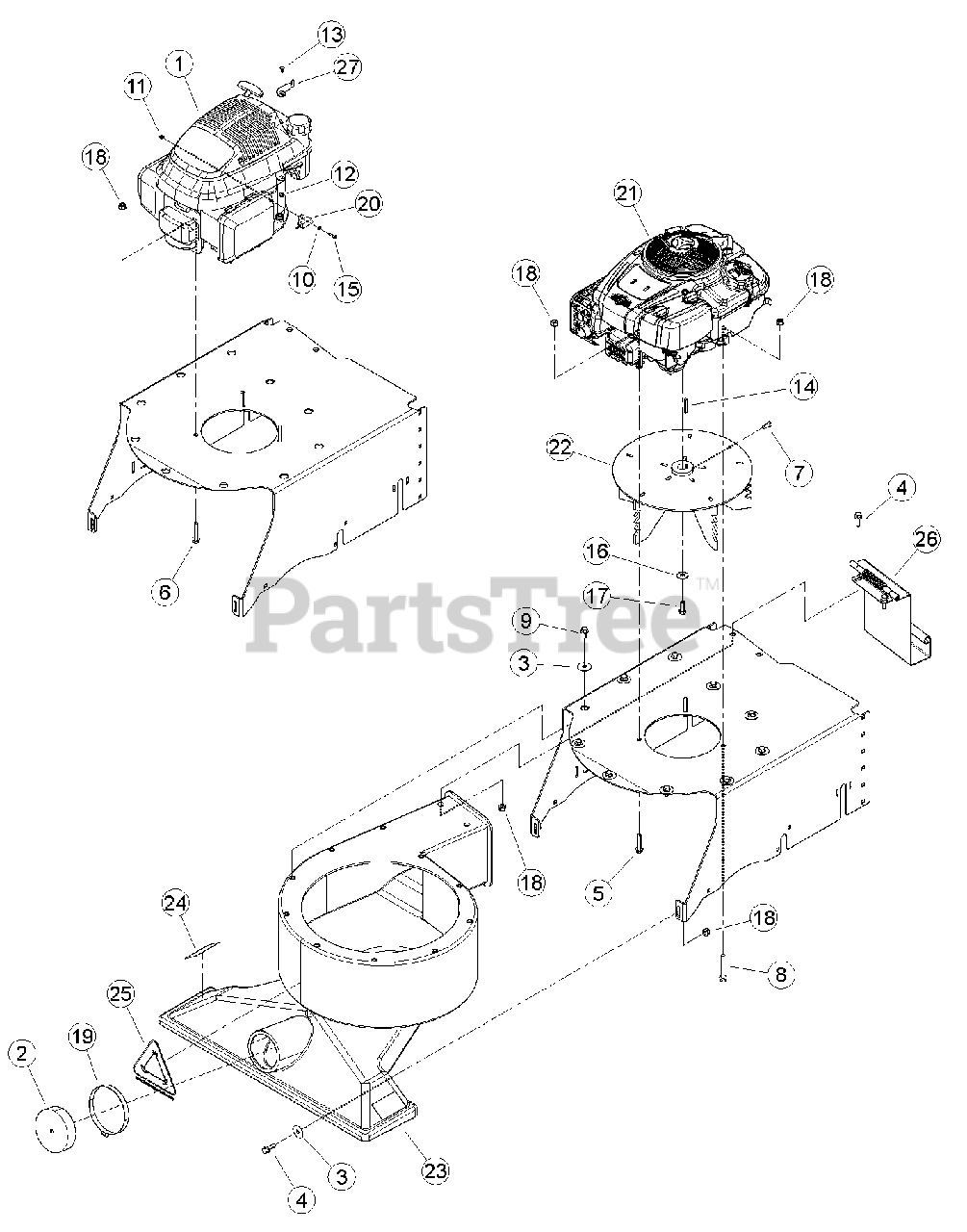

WV 190 - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: H07102 & Above) Engine (Push) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

Engine (Push) Parts Diagram

  • Title

1

ENGINE, 5.5 HP HONDA GCV (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST HONDA INDUSTRIAL ENGINE DEALER) (WV160 ONLY)

$

$

Not available

2

Bear Cat 13850-00

CAP, ROUND VINYL

$20.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC (WV190 ONLY)

$

$

Not available

6

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC (WV160 ONLY)

$3.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

8

15138-00

BOLT, 5/16 X 2-1/2 FLANGE NC (WV190 ONLY)

$

$

Not available

9

15160-00

BOLT, 5/16 X 5/8 FLANGE NC

$

$

Not available

10

Bear Cat 15209

WASHER, #8 SAE (WV160 ONLY)

$

$

Not available

11

15255

NUT, 8-32 NYLOCK (WV160 ONLY)

$

$

Not available

12

15397

NUT, 10/24 NYLOCK TYPE NM ZP (WV160 ONLY)

$

$

Not available

13

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP (WV160 ONLY)

$

$

Not available

14

Bear Cat 15434

KEY, SQUARE 3/16" X 1-1/2" LG PLN

$1.49

$

Usually ships in 3-7 days

0

15

15550

SCREW, MCH 8-32 X 3/4 PHP RDHD (WV160 ONLY)

$

$

Not available

16

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

17

Bear Cat 15697-00

BOLT, 3/8 X 1" NF GR8 ZP HHCS

$

$

Not available

18

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

19

Bear Cat 16196

CLAMP, 4" HOSE

$

$

Not available

20

Bear Cat 31342-00

SWITCH, HONDA ENGINE KILL (WV160 ONLY)

$45.99

$

Usually ships in 3-7 days

0

21

ENGINE, BRIGGS VERT 190CC 850 SERIES (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER) (WV190 ONLY)

$

$

Not available

22

Bear Cat 70337-00

WELDMENT, BEARVAC ROTOR

$550.99

$

Usually ships in 3-7 days

0

23

Bear Cat 70747-00

ASSEMBLY, FAN INTAKE HOUSING W/ DECALS
(Superseded to 73714-00)

Note: (INCLUDES ITEMS 24 & 25)

$417.99

$

Usually ships in 3-7 days

0

24

Bear Cat 13890-00

DECAL, DANGER

$9.99

$

Usually ships in 3-7 days

0

25

31541-00

LOGO, COLLECT IT (WHITE)

$

$

Not available

26

Bear Cat 73645-00

ASSEMBLY, EXHAUST DOOR

$241.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76696-12

PLATE, HONDA BRAKE HOLDER (WV160 ONLY)

$

$

Not available
