WV 190 S - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: D00001 - E05370) WV160S & WV190S Drive (SN: D07811 AND BELOW) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

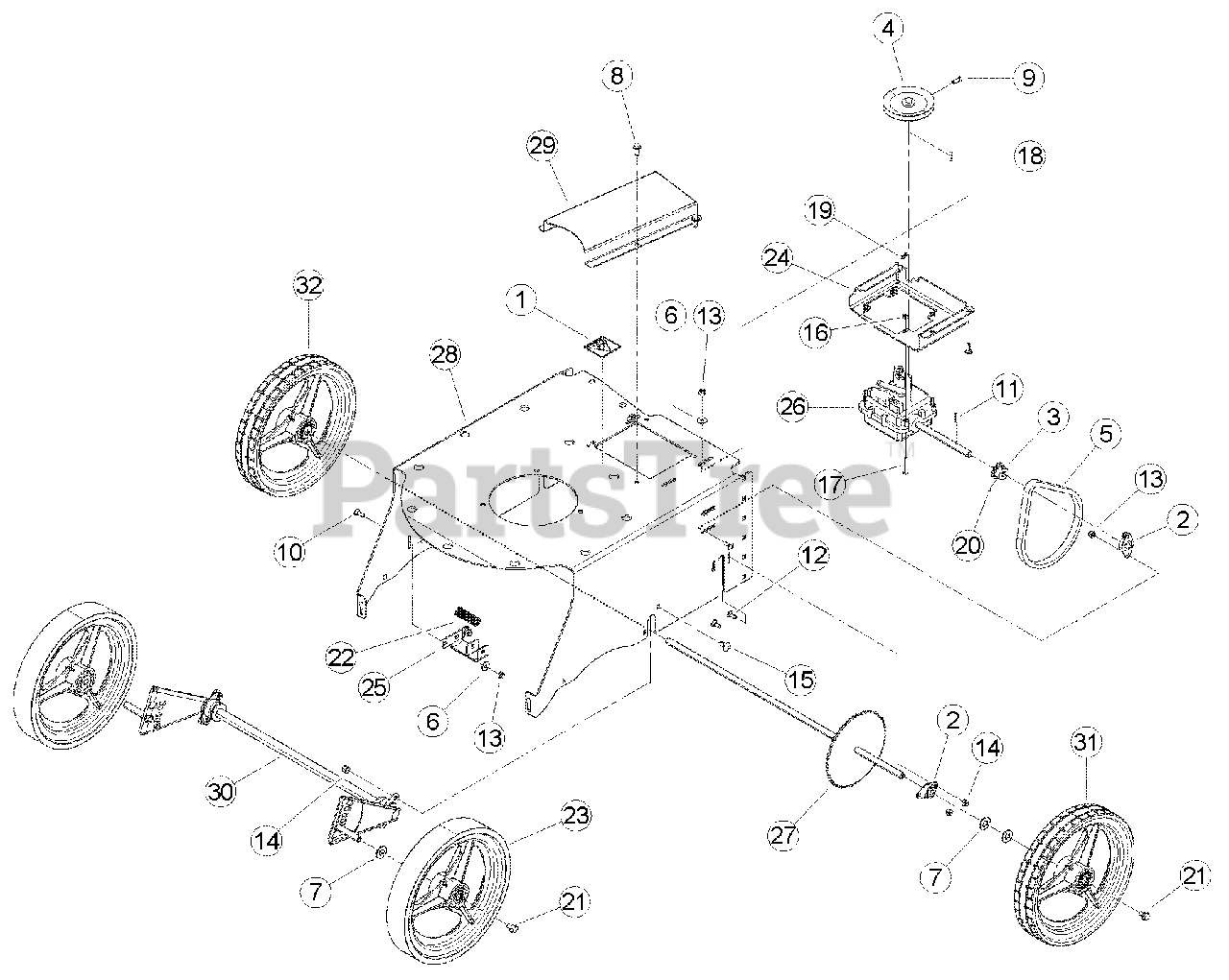

WV160S & WV190S Drive (SN: D07811 AND BELOW) Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12574

BEARING, 1/2 FLANGE

$21.99

$

Usually ships in 3-7 days

0

3

Bear Cat 13853-00

SPROCKET, 35 B10

$54.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13854-00

PULLEY, 4 O.D. X 12 MM BORE

$89.99

$

Usually ships in 3-7 days

0

5

Bear Cat 13871-00

CHAIN, #35 X 62 PITCH W/ CONN. LINK

$27.99

$

Usually ships in 3-7 days

0

6

15030

WASHER, 1/4 FLAT

$

$

Not available

7

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD

$

$

Not available

9

15180

SCREW, 1/4 X 5/8 SQ HD SET

$

$

Not available

10

15238

BOLT, 1/4 X 3/4 CRG

$

$

Not available

11

15266

PIN, 1/8 X 7/8 SPRING

$

$

Not available

12

Bear Cat 15348

BOLT, 1/4 X 5/8 CRG

$

$

Not available

13

Bear Cat 15355

NUT, 1/4 NYLOCK

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NYLOCK

$

$

Not available

15

15359

BOLT, 5/16 X 5/8 CRG

$

$

Not available

16

15397

NUT, #10 X 24 NYLOCK

$

$

Not available

17

Bear Cat 15594

SCREW, #10 X 24 X 1-1/2 PAN PHP ZP

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15598

KEY, 4 MM SP X 20 MM

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15602

WASHER, #6 SAE FLAT

$0.99

$

Usually ships in 3-7 days

0

20

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

21

Bear Cat 15854-00

BOLT, 5/16-18 X 1/2 GR5 HH SER/FLN

$1.49

$

Usually ships in 3-7 days

0

22

17257

SPRING, COMPRESS LC-072J-6

$

$

Not available

23

Bear Cat 31337-00

WHEEL ASSEMBLY, BEARVAC PUSH

$129.99

$

Usually ships in 3-7 days

0

24

WELDMENT, TRANSMISSION MOUNT (WAS 73621-12, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77746-12)

$

$

Not available

25

Bear Cat 73623-12

WELDMENT, BEARVAC HEIGHT ADJ.

$

$

Not available

26

TRANSMISSION, 3 SPEED BEARVAC (WAS 73629-00, REPLACED AND SUPERSEDED. FOR SERVICE (SN: D07811 AND BELOW) ORDER KIT #77750-00)

$

$

Not available

27

Bear Cat 73634-12

WELDMENT, SP LONG AXLE

$135.99

$

Usually ships in 3-7 days

0

28

Bear Cat 73641-35

SUPPORT, BEARVAC FRAME
(Superseded to 70751-00)

$372.99

$

Usually ships in 3-7 days

0

29

Bear Cat 73642-12

GUARD, BEARVAC BELT

$65.99

$

Usually ships in 3-7 days

0

30

Bear Cat 75532-12

WELDMENT, AXLE PIVOT

$

$

Not available

31

Bear Cat 76691-00

WHEEL, BEARVAC SP LEFT

$223.99

$

Usually ships in 3-7 days

0

32

Bear Cat 76692-00

WHEEL, BEARVAC SP RIGHT

$223.99

$

Usually ships in 3-7 days

0
