WV 190 S - Bear Cat Walk-Behind Vacuum, 190cc Briggs & Stratton (SN: E06542 - H07101) WV160S & WV190S Drive (Self-Propelled) (SN: E06542 - E07082) Parts Diagram

Walk-Behind Vacuum, 190cc Briggs & Stratton

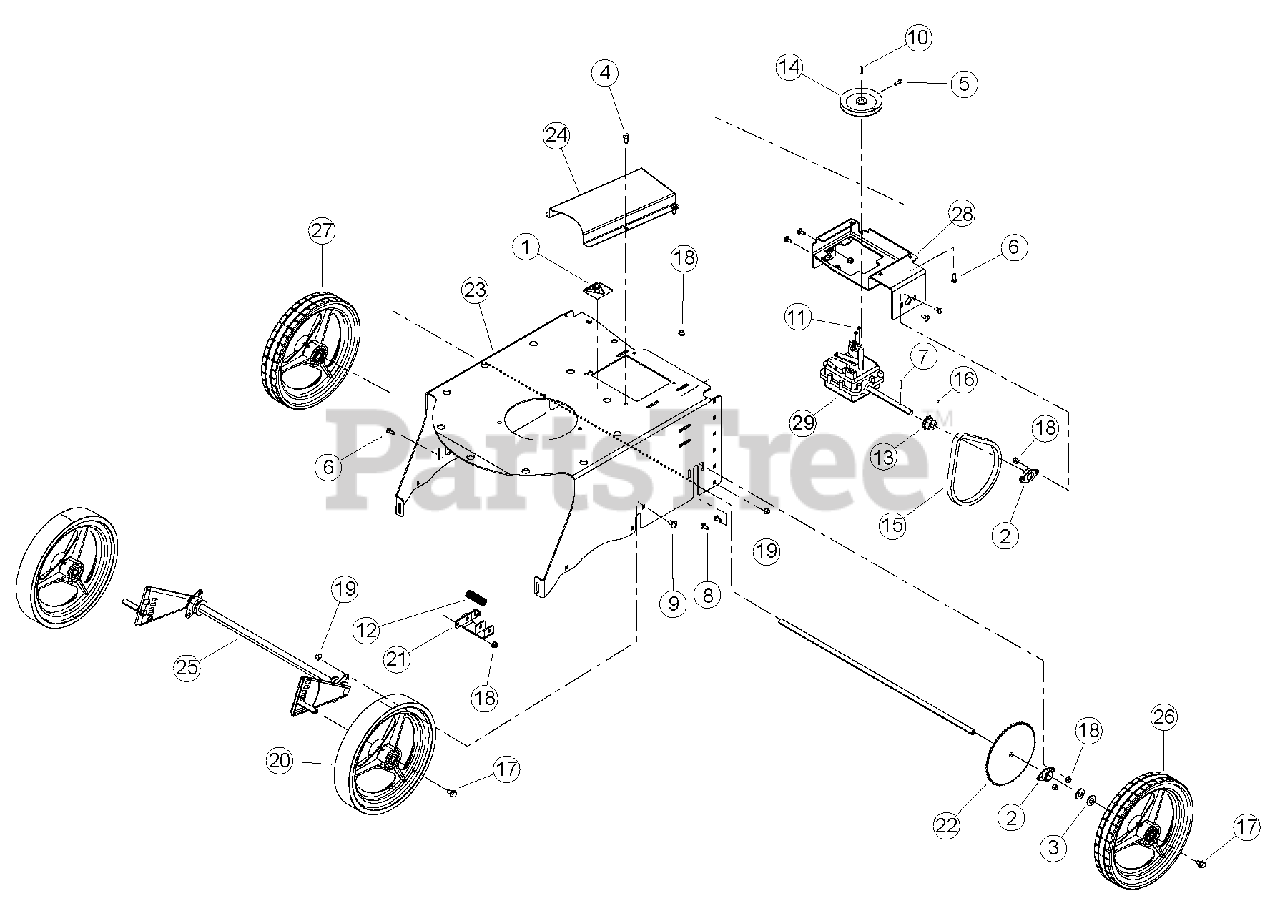

WV160S & WV190S Drive (Self-Propelled) (SN: E06542 - E07082) Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12574

BEARING, 1/2 FLANGE

$24.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$0.99

$

Usually ships in 3-7 days

0

4

15176

SCREW, 11/32 X 7/8 HWH AB THREAD

$

$

Not available

5

15180

SCREW, 1/4 X 5/8 SQ HD SET

$

$

Not available

6

15238

BOLT, 1/4 X 3/4 CRG

$

$

Not available

7

15266

PIN, 1/8 X 7/8 SPRING

$

$

Not available

8

Bear Cat 15348

BOLT, 1/4 X 5/8 CRG

$

$

Not available

9

15359

BOLT, 5/16 X 5/8 CRG

$

$

Not available

10

Bear Cat 15598

KEY, 4 MM SP X 20 MM

$2.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15602

WASHER, #6 SAE FLAT

$0.99

$

Usually ships in 3-7 days

0

12

17257

SPRING, COMPRESS LC-072J-6

$

$

Not available

13

Bear Cat 13853-00

SPROCKET, 35 B10

$57.99

$

Usually ships in 3-7 days

0

14

Bear Cat 13854-00

PULLEY, 4 O.D. X 12 MM BORE

$93.99

$

Usually ships in 3-7 days

0

15

Bear Cat 13871-00

CHAIN, #35 X 62 PITCH W/ CONN. LINK

$28.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15680-00

SCREW, #8-32 X 3/16 KNR CUP PT

$1.49

$

Usually ships in 3-7 days

0

17

Bear Cat 15854-00

BOLT, 5/16-18 X 1/2 GR5 HH SER/FLN

$1.49

$

Usually ships in 3-7 days

0

18

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

20

Bear Cat 31337-00

WHEEL ASSEMBLY, BEARVAC PUSH

$136.99

$

Usually ships in 3-7 days

0

21

Bear Cat 73623-12

WELDMENT, BEARVAC HEIGHT ADJ.

$

$

Not available

22

Bear Cat 73634-12

WELDMENT, SP LONG AXLE

$150.99

$

Usually ships in 3-7 days

0

23

SUPPORT, BEARVAC FRAME (REPLACED AND SUPERSEDED PN 73641-35. FOR SERVICE ORDER PN 70751-00)

$

$

Not available

24

Bear Cat 73642-12

GUARD, BEARVAC BELT

$68.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75532-12

WELDMENT, AXLE PIVOT

$

$

Not available

26

Bear Cat 76691-00

WHEEL, BEARVAC SP LEFT

$234.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76692-00

WHEEL, BEARVAC SP RIGHT

$234.99

$

Usually ships in 3-7 days

0

28

77746-12

WELDMENT, TRANSMISSION MOUNT

$

$

Not available

29

Bear Cat 77749-00

TRANSMISSION, 3 SPEED BEARVAC

$318.99

$

Usually ships in 3-7 days

0
