X 1036 B - Electrolux/AYP Lawn Tractor (1992) FRONT AXLE Parts Diagram

Lawn Tractor

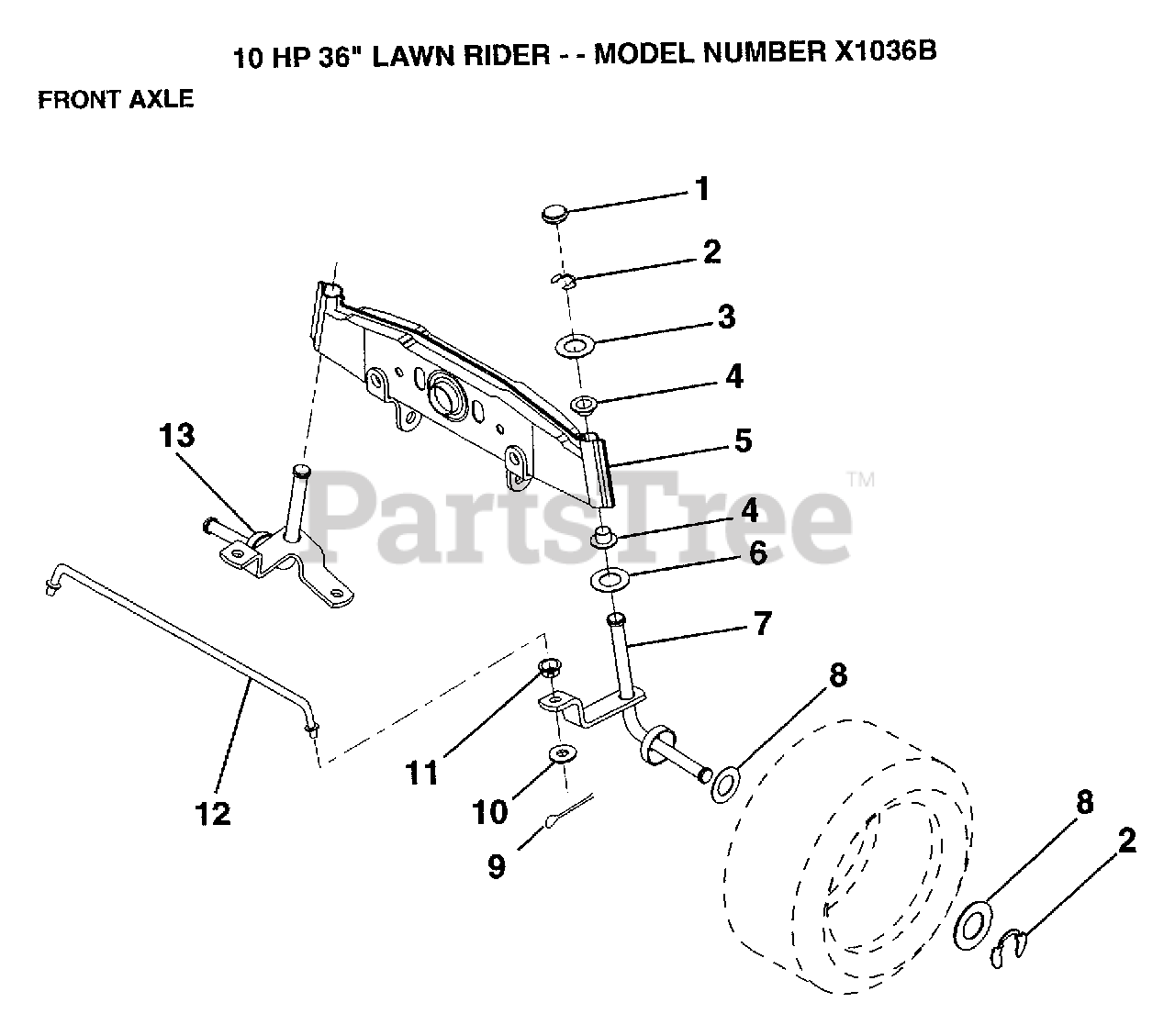

FRONT AXLE Parts Diagram

  • Title

2

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$3.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 121922X

NYLINER
(Superseded to 532121922)

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 121914X

AXLE FRONT
(Superseded to 532121914)

$

$

Not available

6

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 121919X

SPINDLE RH
(Superseded to 532121919)

$

$

Not available

8

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 126847X

BUSHING.DRAGLINK
(Superseded to 532126847)

$4.99

$

In Stock, Qty 15

0

12

Electrolux/AYP 121924X

ROD TIE
(Superseded to 532121924)

$

$

Not available

13

Electrolux/AYP 121916X

SPINDLE LH
(Superseded to 532121916)

$

$

Not available
