X 1236 B - Electrolux/AYP Lawn Tractor (1991) FRONT AXLE Parts Diagram

Lawn Tractor

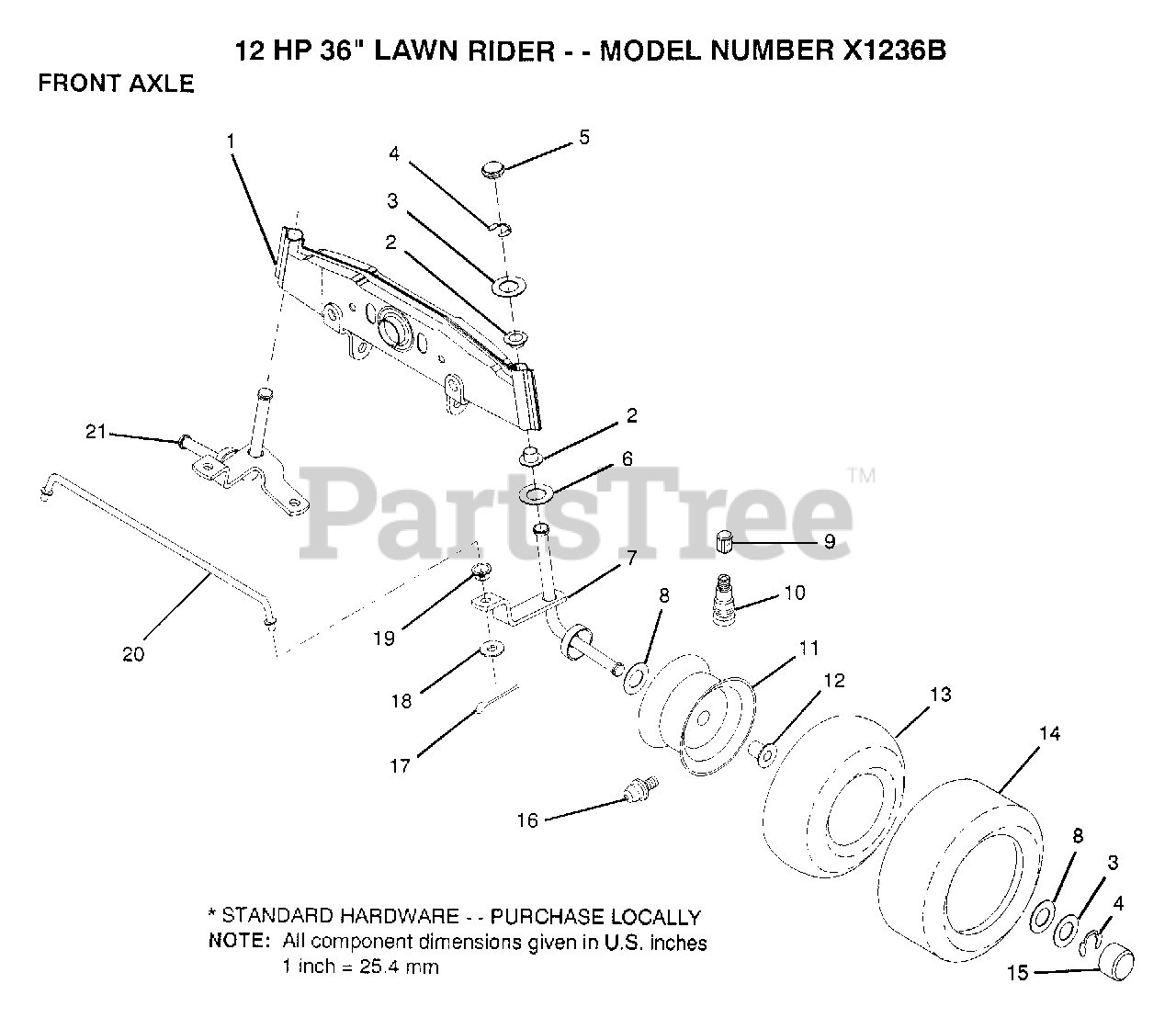

FRONT AXLE Parts Diagram

  • Title

1

Electrolux/AYP 128543

"AXLE,FRT"

$

$

Not available

2

Electrolux/AYP 121922X

NYLINER
(Superseded to 532121922)

$8.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$2.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 121919X

SPINDLE RH
(Superseded to 532121919)

$

$

Not available

8

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$2.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$5.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$4.99

$

In Stock, Qty 15

0

11

Electrolux/AYP 122394X475

SUB= 137237X475

$

$

Not available

12

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$9.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$23.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 123410X

TIRE
(Superseded to 532123410)

$59.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 126847X

BUSHING.DRAGLINK
(Superseded to 532126847)

$5.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 121924X

ROD TIE
(Superseded to 532121924)

$

$

Not available

21

Electrolux/AYP 121916X

SPINDLE LH
(Superseded to 532121916)

$

$

Not available
