X 12D38 B - Electrolux/AYP Lawn Tractor (1992) MOWER Parts Diagram

Lawn Tractor

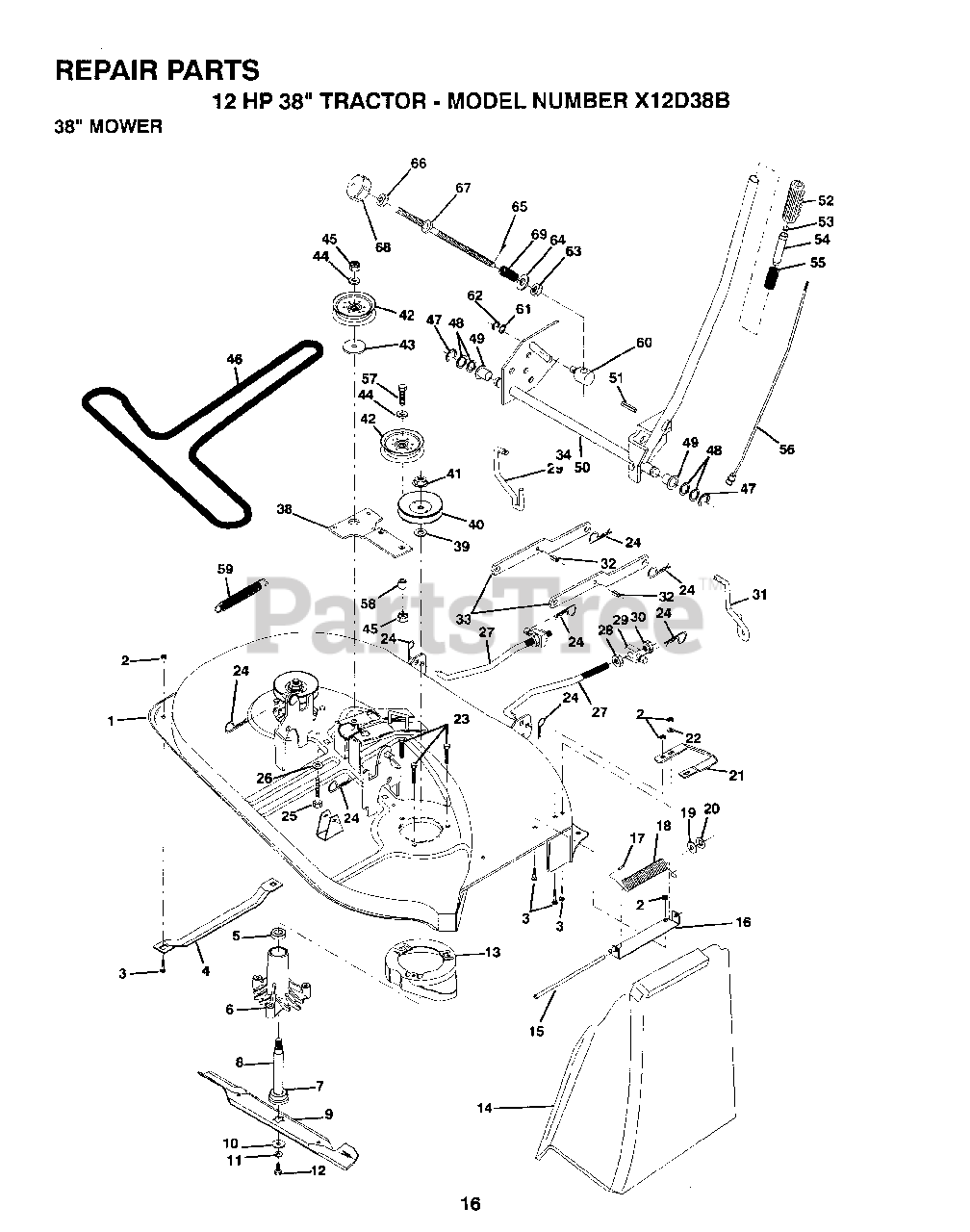

MOWER Parts Diagram

  • Title
1

Electrolux/AYP 129365

SUB= 145775

$

$

Not available

2

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

5

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$10.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$31.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$26.99

$

In Stock, Qty 11

0

8

Electrolux/AYP 133172

SUB= 137646

$

$

Not available

9

Electrolux/AYP 127842

SUB= 138497

$

$

Not available

10

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.49

$

In Stock, Qty 6

0

11

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

12

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$3.99

$

In Stock, Qty 17

0

13

Electrolux/AYP 128961

SUB= 140329

$

$

Not available

14

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

15

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$8.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 105896X

SUB= 137607
(Superseded to 532105896)

$

$

Not available

17

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

19

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 128772

RUNNER RH
(Superseded to 532128772)

$

$

Not available

22

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 78158

SUB= 17580520

$

$

Not available

24

Murray 4939M

SUB= 85902

$

$

Not available

25

Electrolux/AYP 74600636

BOLT
(Superseded to 874600636)

$

$

Not available

26

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

30

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 135388

LIFT LINK RH

$

$

Not available

32

Electrolux/AYP 135563

"PIN,SPRING"
(Superseded to 532135563)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

34

Electrolux/AYP 134619

LINK LIFT LH
(Superseded to 532134619)

$34.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 133840

IDLER ARM ASSY
(Superseded to 532133840)

$

$

Not available

39

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 129206

SUB= 153532
(Superseded to 532129206)

$

$

Not available

41

$

$

Not available

42

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 14

0

44

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 131290

BELT-V.88.12.MW
(Superseded to 532144200)

$42.99

$

In Stock, Qty 20+

0

47

$

$

Not available

48

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

49

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.49

$

In Stock, Qty 10

0

50

$

$

Not available

51

Electrolux/AYP 105767X

PIN-GROOVE LT
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

52

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$6.99

$

In Stock, only 2 left!

0

53

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

54

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

55

Electrolux/AYP 122512X

SUB= 532122512

$

$

Not available

56

$

$

Not available

57

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 132823

SUB= 532132823
(Superseded to 532132823)

$7.49

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 131950

SPRING.EXTENSION
(Superseded to 532131950)

$8.99

$

In Stock, Qty 9

0

60

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$21.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

62

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, only 2 left!

0

65

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

66

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

67

Electrolux/AYP 126971X

SUB= 532126971
(Superseded to 532126971)

$7.49

$

Usually ships in 3-10 days

0

68

$

$

Not available

69

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

Electrolux/AYP 133754

SUB= 136262

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$44.99

$

In Stock, Qty 20+

0
