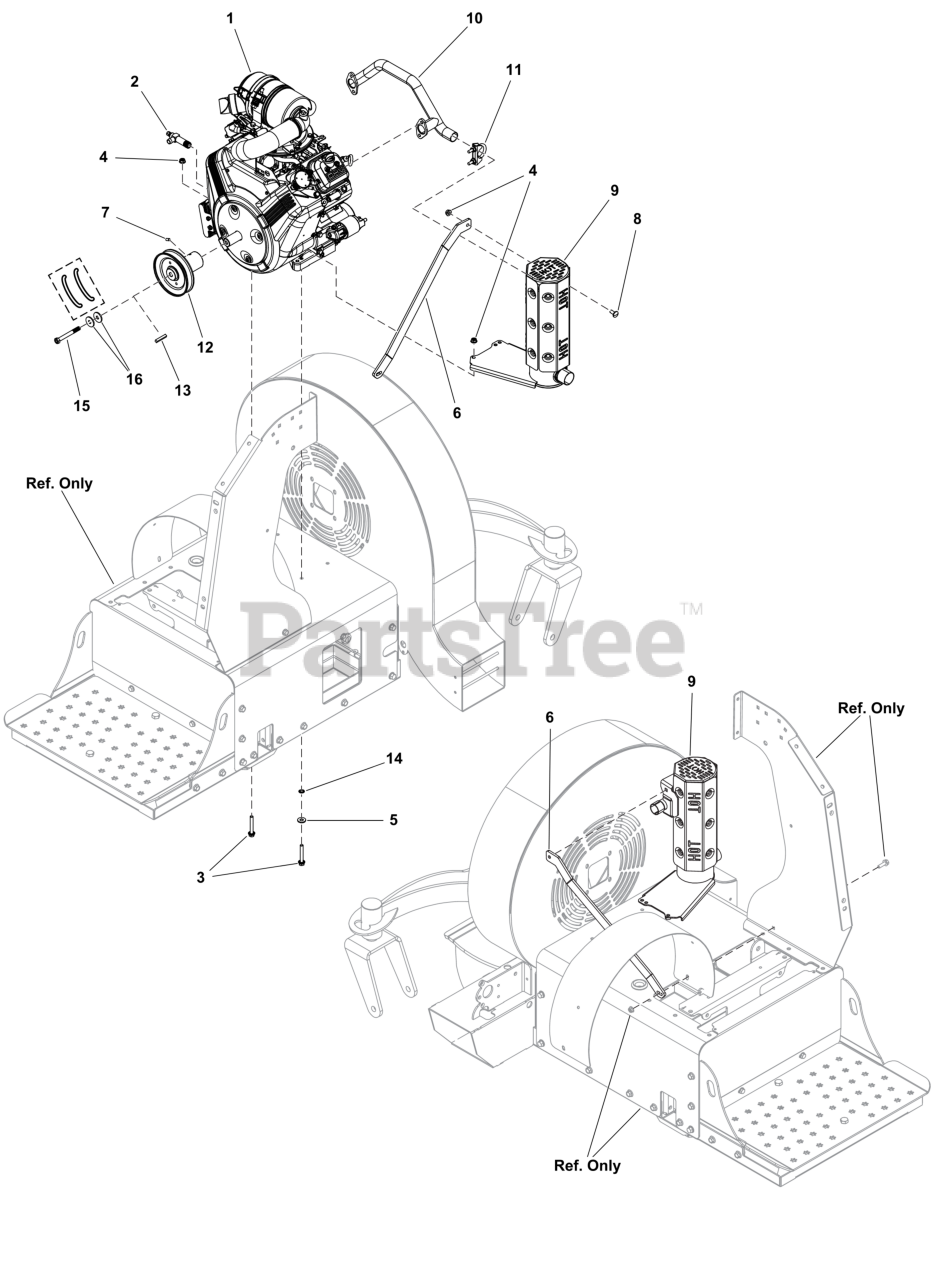

X 3001 (5902130) - Ferris Hurricane Series Stand-On Blower Engine Group S/N: 4002350151 and Above Parts Diagram

Hurricane Series Stand-On Blower

Engine Group S/N: 4002350151 and Above Parts Diagram

  • Title

1

ENGINE, HORIZONTAL SHAFT, Briggs & Stratton, 386447

Note: (Refer to Note: *)

$

$

Not available

2

Ferris 5107284FS

VALVE, OIL DRAIN SHUT OFF

$46.99

$

Usually ships in 2-12 days

0

3

Ferris 5107304FS

BOLT

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, only 3 left!

0

5

Ferris 5025337FS

WASHER

$4.49

$

In Stock, only 2 left!

0

6

PLATE, MUFFLER BRACKET, FB2000/X3000-BLK

Note: (Included with item #9.)

$

$

Not available

7

Ferris 5107269FS

SET SCREW

$2.49

$

In Stock, only 2 left!

0

8

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

9

Ferris 84011463

KIT, Muffler

Note: (Includes item #6.)

$

$

Currently unavailable

10

Ferris 5109325FS

MANIFOLD

$85.99

$

In Stock, only 3 left!

0

11

Ferris 5107405FS

CLAMP, MUFFLER

$6.99

$

Usually ships in 2-12 days

0

12

Ferris 84008751

PULLEY

$

$

Currently unavailable

13

Ferris 5022726YP

KEY 1/4 SQ X 1 1/2

$5.49

$

In Stock, Qty 5

0

14

Ferris 5025188SM

WASHER, 5/16" INT. TO

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 01X144MA

BOLT, 3/8-24 NF x 3-1/4" Hex Head, GR 8

$

$

Currently unavailable

16

Ferris 5025693FS

WASHER, Beveled

$3.49

$

Usually ships in 2-12 days

0
