X 750 - Husqvarna Early Entry Saw (2009-06) Handle Assembly Parts Diagram

Early Entry Saw

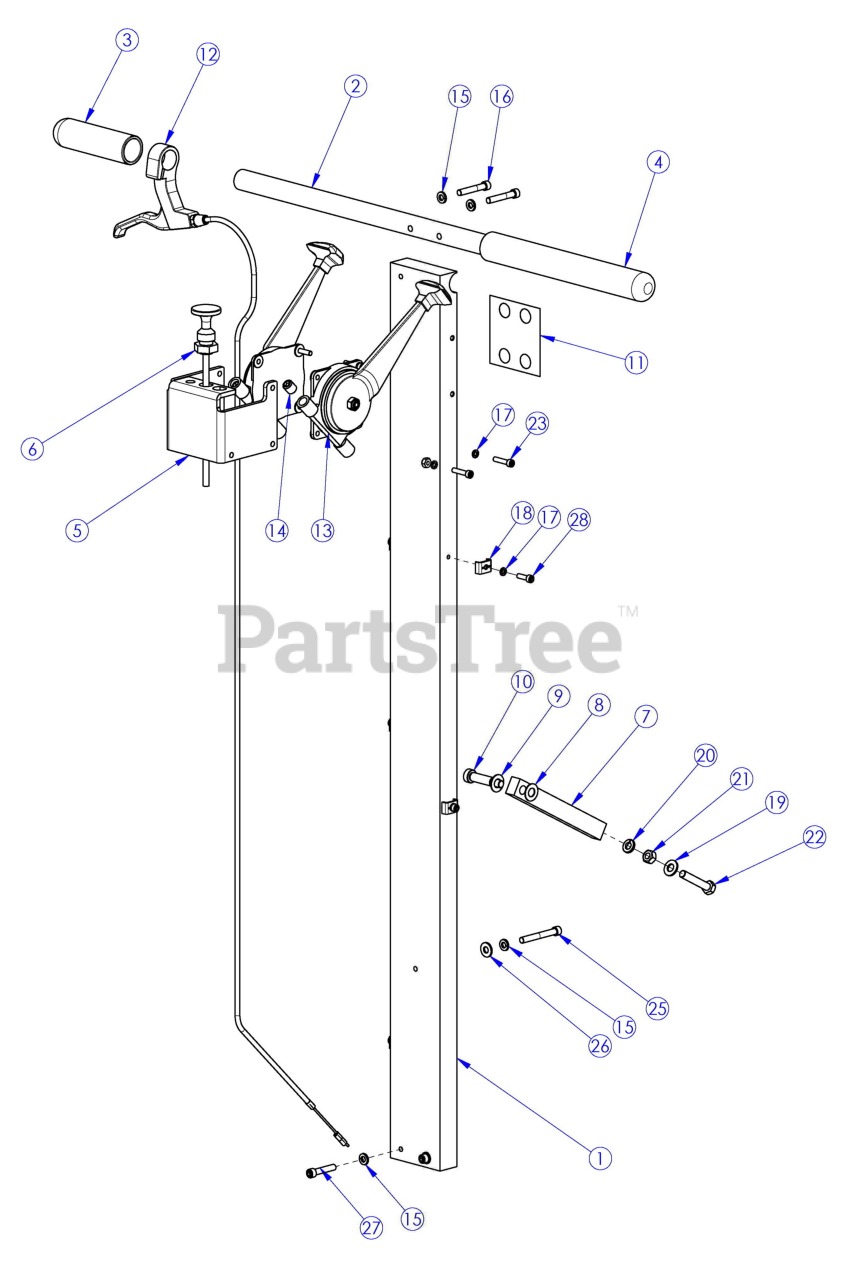

Handle Assembly Parts Diagram

  • Title

1

Husqvarna 510346001

Handle, X750

$

$

Not available

2

Husqvarna 505816501

Handle Bar

$70.99

$

Usually ships in 3-10 days

0

3

Husqvarna 505802801

Grip, Foam Handle, 4.5"L Black

$46.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505813201

Grip, Foam Handle, 9.5"L Black

$

$

Not available

5

Husqvarna 505816801

Bracket, Control Mount

$62.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505842901

Lock Throttle W/Cable
(Superseded to 587990601)

$117.99

$

In Stock, only 1 left!

0

7

Husqvarna 505818101

Pump Release Arm

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505634501

Washer, 3/8" Delrin

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 505634201

Washer, 3/8"X .03"Thk Flat S.S.

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 505820701

Shsb, 3/8 X 1 1/4

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510341401

Label, Guide/Speed Control
(Superseded to 510 34 13-01)

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505482703

Kit, Blade Release, X750

$173.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505823601

Control Lever Assy

$277.99

$

In Stock, only 2 left!

0

14

Husqvarna 505822401

Set Screw, Cup .438-20 X .500

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 505632801

Washer, Split 1/4" S.S.

$3.49

$

In Stock, only 2 left!

0

16

Husqvarna 505728801

Shcs 1/4-20 X 1 1/2 S.S.

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505633101

Washer, Split #10 S.S.

$3.49

$

In Stock, Qty 8

0

18

Husqvarna 505648901

Clamp, Metal

$63.99

$

In Stock, Qty 6

0

19

Husqvarna 505632101

Washer, 5/16" Flat Sae Cad
(Superseded to 539990188)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 505633001

Washer, Split 5/16" S.S.

$1.99

$

In Stock, Qty 6

0

21

Husqvarna 505723501

Nut, 5/16-18 Hex, Gr5 Zinc
(Superseded to 539990196)

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 505728501

HHB 5/16-18 X 1.75 Gr8

$1.99

$

In Stock, only 1 left!

0

23

Husqvarna 505772801

Shcs 10-32 X 7/8 Blk

$3.49

$

In Stock, only 1 left!

0

24

Husqvarna 505822201

Nut, Nyloc, #10-32 S.S.

$1.99

$

In Stock, only 4 left!

0

25

Husqvarna 505728901

Shcs 1/4-20 X 2 S.S.

$15.99

$

In Stock, only 2 left!

0

26

Husqvarna 505632001

Washer, 1/4" Flat S.S.

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 505628001

Shcs 1/4-20 X 1 1/4 S.S.

$3.49

$

In Stock, only 3 left!

0

28

Husqvarna 505729701

Shcs 10-32 X 5/8 S.S.

$3.49

$

In Stock, only 1 left!

0
