X F300 A - Electrolux/AYP Tiller BELT GUARD AND PULLEY Parts Diagram

Tiller

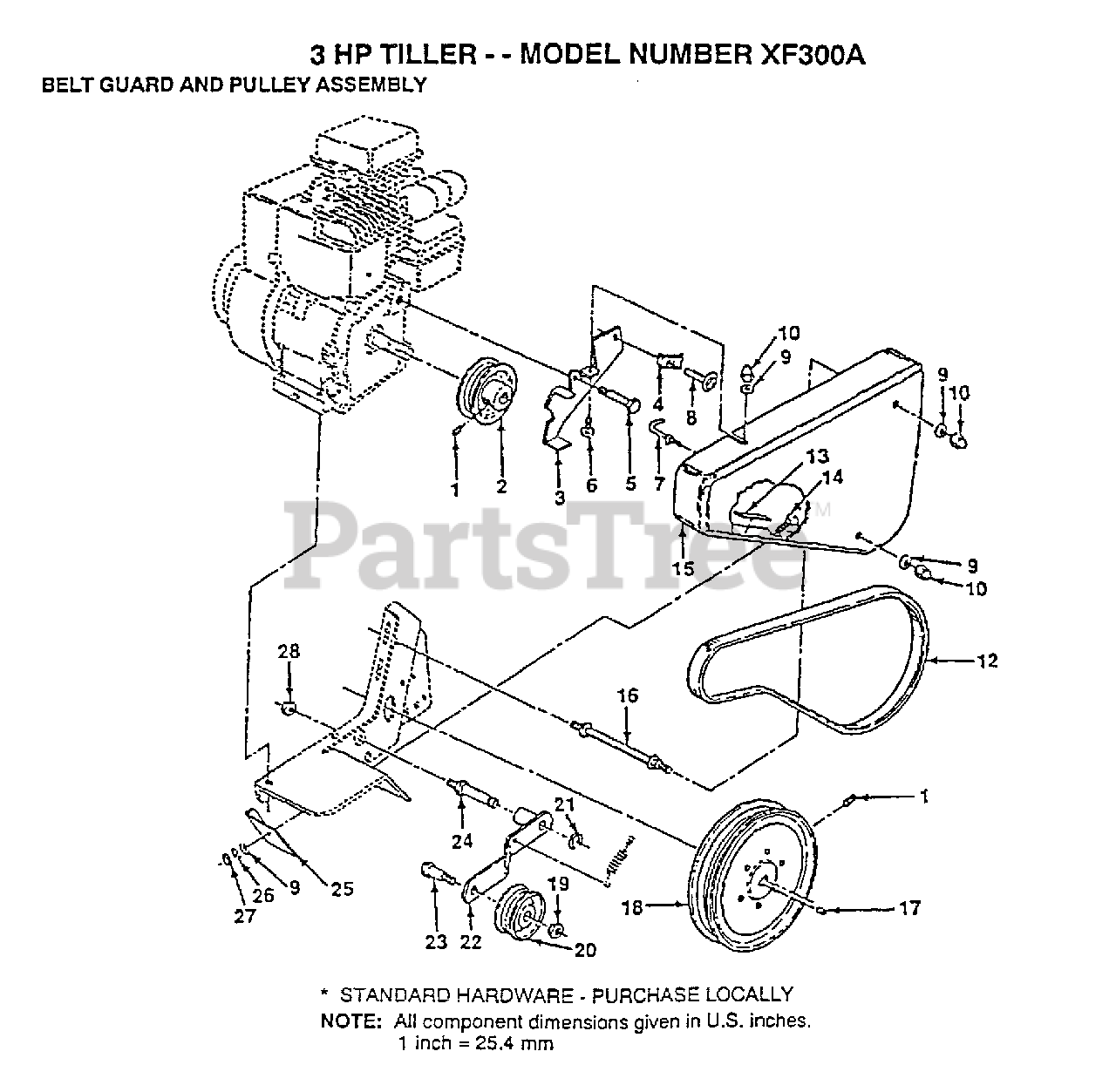

BELT GUARD AND PULLEY Parts Diagram

  • Title

1

Electrolux/AYP 23230506

SET SCREW
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 7417J

PULLEY

$

$

Not available

3

Electrolux/AYP 122955X

BRKT ASSY

$5.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

5

Electrolux/AYP 74770812

SCREW

$2.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 121463X

KEEPER BELT

$

$

Not available

8

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

9

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 104213X

NUT-CAP TI
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 9179R

SUB= TH3H390
(Superseded to 583784801)

$30.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 72140406

BOLT T
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121613X475

"GRD,BELT"

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 110528X

BOLT TI
(Superseded to 583660001)

$14.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 2649M

KEY T
(Superseded to 532002649)

$4.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 9174R

TRANS SHEAVE RT

$

$

Not available

19

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

20

Electrolux/AYP 9178R

SUB= 75673

$

$

Not available

21

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 674A30

IDLER ARM TI

$

$

Not available

23

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

24

Electrolux/AYP 106968X

SHAFT IDLER TI
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 105358X

SHIELD-DIRT TI
(Superseded to 583645201)

$2.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

27

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 127689

DECAL

$

$

Not available
