XC 1122 B - Poulan Lawn Tractor (1991) TRANSAXLE FOOTE - MODEL NUMBER 4360-7 Parts Diagram

Lawn Tractor

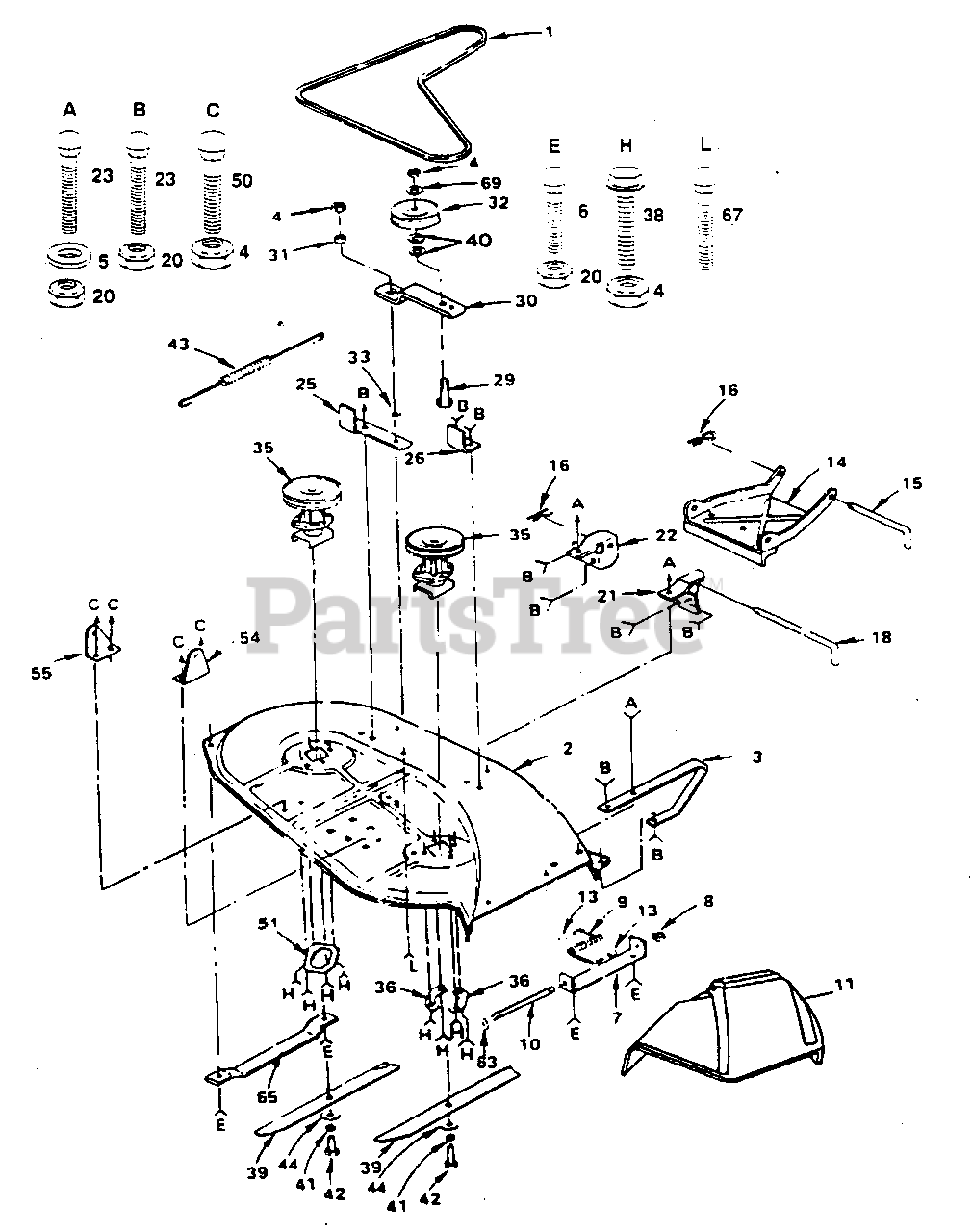

TRANSAXLE FOOTE - MODEL NUMBER 4360-7 Parts Diagram

  • Title

1

Electrolux/AYP 532120458

Housing, Upper

$

$

Not available

2

Electrolux/AYP 532002274

Screw, Tapping, Lg. 1/4-20 x .734

$

$

Not available

3

Electrolux/AYP 532068003

Ball, Detent

$

$

Not available

4

Electrolux/AYP 532105904

Spring, Detent

$

$

Not available

5

Electrolux/AYP 532105905

Screw, Set

$

$

Not available

6

Electrolux/AYP 532120460

Assembly, Shifter

$

$

Not available

7

Electrolux/AYP 532120461

O-Ring

$

$

Not available

8

Electrolux/AYP 532120462

Washer, Plain .505 x .942 x .006

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Electrolux/AYP 532120463

Washer, Plain .505 x .942 x .010

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Electrolux/AYP 532120464

Washer, Plain .505 x .942 x .015

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Electrolux/AYP 532120465

Washer, Plain .505 x .942 x .020

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Electrolux/AYP 532120466

Washer, Plain .505 x .942 x .026

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Electrolux/AYP 532083818

Washer, Plain .505 x .942 x .030

Note: Use in combinations to maintain proper clearances.

$

$

Not available

8

Electrolux/AYP 532120467

Washer, Plain .505 x .942 x .040

Note: Use in combinations to maintain proper clearances.

$

$

Not available

9

Electrolux/AYP 532002286

Ring, Retaining

$

$

Not available

10

Electrolux/AYP 532002267

Ring, Retaining
(Superseded to 812000028)

$7.49

$

In Stock, Qty 13

0

11

Electrolux/AYP 532003413

Washer, Plain .632 x 1.00 x .010

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002233

Washer, Plain .632 x 1.00 x .020

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002232

Washer, Plain .632 x 1.00 x .026
(Superseded to 2232J)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002231

Washer, Plain .632 x 1.00 x .031

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002230

Washer, Plain .632 x 1.00 x .036

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002229

Washer, Plain .632 x 1.00 x .041

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002228

Washer, Plain .632 x 1.00 x .046
(Superseded to 583729101)

Note: Use in combinations to maintain proper clearances.

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532002227

Washer, Plain .632 x 1.00 x .050

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532002226

Washer, Plain .632 x 1.00 x .060

Note: Use in combinations to maintain proper clearances.

$

$

Not available

11

Electrolux/AYP 532105906

Washer, Plain .632 x 1.00 x .082

Note: Use in combinations to maintain proper clearances.

$

$

Not available

12

Electrolux/AYP 532006725

O-Ring

$

$

Not available

13

Electrolux/AYP 532120415

Washer, Plain .632 x 1.38 x .046

$2.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532002257

Key, Woodruff #9

$

$

Not available

15

Electrolux/AYP 532110077

Assembly, Kit, Input Shaft

$

$

Not available

16

Electrolux/AYP 532110078

Pinion, Bevel, 14 Teeth
(Superseded to 532167148)

$

$

Not available

17

Electrolux/AYP 532105909

Ring, Retaining

$

$

Not available

18

Electrolux/AYP 532105910

Chain, 24 Pitches

$

$

Not available

19

Electrolux/AYP 532105911

Bearing, Flange
(Superseded to 105911X)

$

$

Not available

20

Electrolux/AYP 532108976

Gear, Spur, 14 Teeth

$

$

Not available

21

Electrolux/AYP 532105913

Collar, Clutch

$

$

Not available

22

Electrolux/AYP 532120468

Key, Clutch

$

$

Not available

23

Electrolux/AYP 532002242

Key, Woodruff

$

$

Not available

24

Electrolux/AYP 532120469

Shaft, Intermediate

$

$

Not available

25

Electrolux/AYP 532002244

Key, Woodruff #61

$

$

Not available

26

Electrolux/AYP 532105916

Ring, Retaining

$2.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532120470

Sprocket, 18 Teeth
(Superseded to 120470X)

$

$

Not available

28

Electrolux/AYP 532110070

Spacer

$

$

Not available

29

Electrolux/AYP 532108977

Gear, Spur, 37 Teeth

$

$

Not available

30

Electrolux/AYP 532109254

Gear, Spur, 35 Teeth

$

$

Not available

31

Electrolux/AYP 532120405

Gear, Spur, 30 Teeth

$

$

Not available

32

Electrolux/AYP 532108980

Gear, Spur, 25 Teeth

$

$

Not available

33

Electrolux/AYP 532120406

Gear, Spur, 22 Teeth

$

$

Not available

34

Electrolux/AYP 532108455

Gear, Spur, 19 Teeth

$

$

Not available

35

Electrolux/AYP 532105925

Washer, Plain .640 x 1.37 x .061

$

$

Not available

36

Electrolux/AYP 532002232

Washer, Plain .632 x 1.00 x .026
(Superseded to 2232J)

$

$

Not available

37

Electrolux/AYP 532108978

Spacer .630 x 1.00 x .169

$

$

Not available

38

Electrolux/AYP 532110079

Assembly, Gear, Combination 12 Teeth and 35 Teeth

$

$

Not available

39

Electrolux/AYP 532120471

Shaft, Idler

$

$

Not available

40

Electrolux/AYP 532120472

Spacer .635 x.875 x .755

$

$

Not available

41

Electrolux/AYP 532105928

Sprocket, 9 Teeth

$21.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532110084

Gear, Bevel, 42 Teeth
(Superseded to 532167148)

$

$

Not available

43

Electrolux/AYP 532108983

Washer, Plain .758 x 1.12 x .010

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532105930

Washer, Plain .758 x 1.12 x .015

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532105931

Washer, Plain .758 x 1.12 x .020

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532105932

Washer, Plain .758 x 1.12 x .025

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532124916

Washer, Plain .758 x 1.12 x .020

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532106097

Washer, Plain .758 x 1.12 x .025

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532002264

Washer, Plain .758 x 1.12 x .031

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532106098

Washer, Plain .758 x 1.12 x .035

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532002265

Washer, Plain .758 x 1.12 x .040

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532106586

Washer, Plain .758 x 1.12 x .045

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532106587

Washer, Plain .758 x 1.12 x .050

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532106588

Washer, Plain .758 x 1.12 x .055

Note: Use in combinations to maintain proper clearances.

$

$

Not available

43

Electrolux/AYP 532002263

Washer, Plain .758 x 1.12 x .062

Note: Use in combinations to maintain proper clearances.

$

$

Not available

44

Electrolux/AYP 532120473

Shaft, Drive

$

$

Not available

45

Electrolux/AYP 532105933

Gear, Spur, 12 Teeth
(Superseded to 532108977)

$

$

Not available

46

Electrolux/AYP 532106151

Gear, Spur, 15 Teeth

$

$

Not available

47

Electrolux/AYP 532120407

Gear, Spur, 20 Teeth

$

$

Not available

48

Electrolux/AYP 532106589

Gear, Spur, 25 Teeth

$

$

Not available

49

Electrolux/AYP 532120408

Gear, Spur, 28 Teeth

$

$

Not available

50

Electrolux/AYP 532105937

Gear, Spur, 31 Teeth

$

$

Not available

51

Electrolux/AYP 532002226

Washer, Plain .632 x 1.00 x .060

$

$

Not available

52

Electrolux/AYP 532002272

Seal, Felt

$

$

Not available

53

Electrolux/AYP 532002263

Washer, Plain .758 x 1.25 x .062

$

$

Not available

54

Electrolux/AYP 532120474

Axle, L.H.
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532110081

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

56

Electrolux/AYP 532105941

Ring, Retaining

$

$

Not available

57

Electrolux/AYP 532110071

Gear, Spur, 32 Teeth

$151.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532120952

Shaft, Cross

$

$

Not available

59

Electrolux/AYP 532110082

Gear, Miter, 15 Teeth
(Superseded to 532169651)

$

$

Not available

60

Electrolux/AYP 532120475

Axle, R.H.

$

$

Not available

61

Electrolux/AYP 532120476

Housing, Lower

$

$

Not available

62

Electrolux/AYP 532120961

Puck, Friction

$

$

Not available

63

Electrolux/AYP 532007294

Disc, Brake

$

$

Not available

64

Electrolux/AYP 532108989

Spacer

$

$

Not available

65

Electrolux/AYP 532120953

Jaw, Brake
(Superseded to 532164670)

$

$

Not available

66

Electrolux/AYP 532120954

Pin, Dowel

$

$

Not available

67

Electrolux/AYP 532120955

Screw, Tapping, Lg. 5/16-18 x 2.25

$

$

Not available

68

Electrolux/AYP 532108992

Lever, Actuating

$

$

Not available

69

Electrolux/AYP 532108996

Washer, Plain .321 x 1.00 x .055

$

$

Not available

70

Electrolux/AYP 532120956

Bracket, Anti-Rotation

$

$

Not available

71

Electrolux/AYP 873810500

Locknut 5/16-24
(Superseded to 873610500)

$

$

Not available

72

Electrolux/AYP 532106596

Screw, Tapping, Lg. 5/16-18 x 1.44

$

$

Not available

73

Electrolux/AYP 532120993

Washer, Plain .343 x .81 x .059

$

$

Not available

74

Electrolux/AYP 532120951

Puck, Friction

$

$

Not available

75

Electrolux/AYP 532120416

Grease
(Superseded to 532126976)

$47.99

$

Usually ships in 3-10 days

0
