XC 1182H B - Poulan Lawn Tractor (1991) TRANSAXLE Parts Diagram

Lawn Tractor

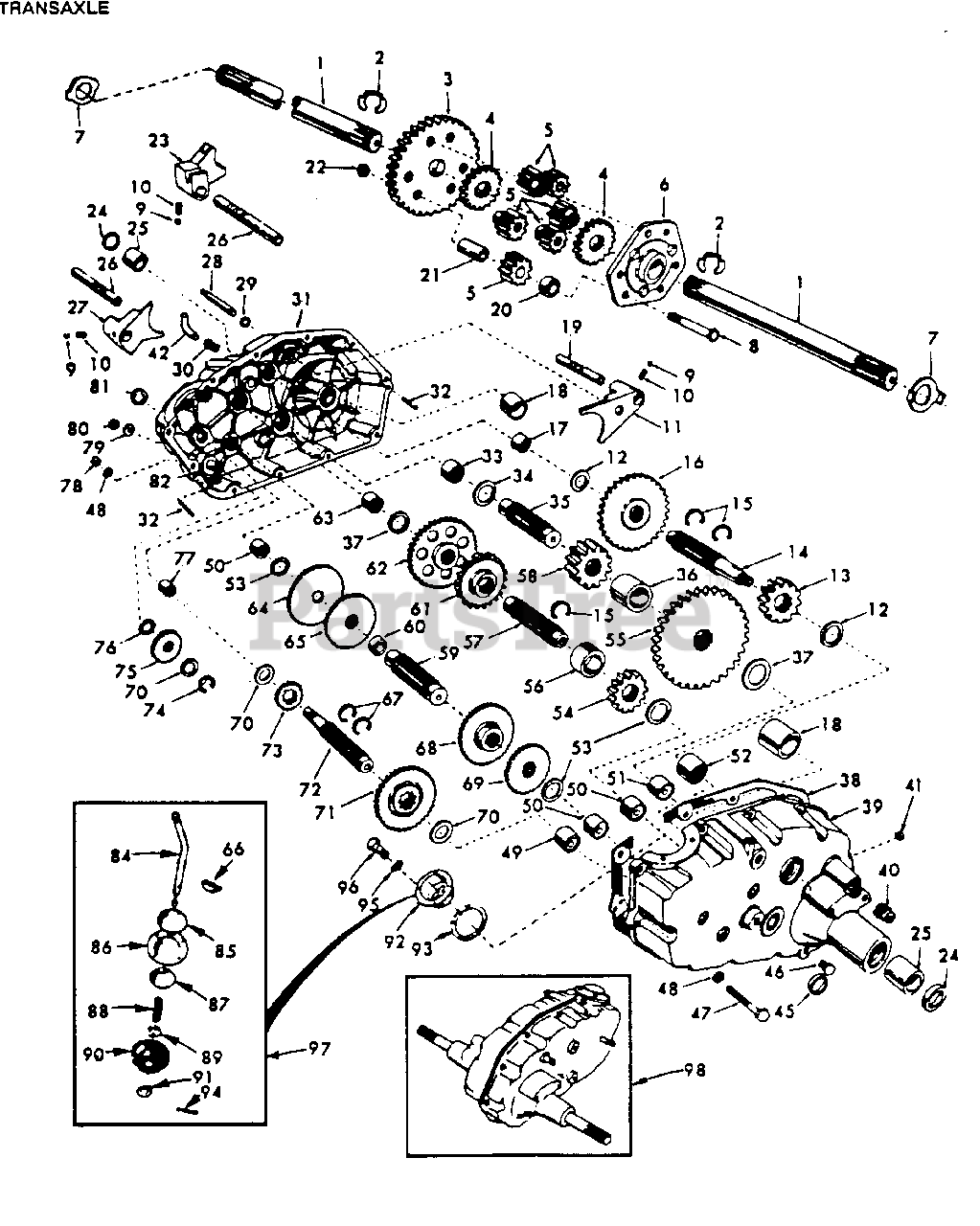

TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 532124662

Axle Shaft
(Superseded to 532004197)

$72.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 812000034

Retaining Ring

$

$

Not available

3

Electrolux/AYP 532004199

Final Drive Gear
(Superseded to 532184956)

$

$

Not available

4

Electrolux/AYP 532004216

Differential Gear

$12.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532004215

Differential Pinion

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532004217

Differential Carrier

$23.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124674

Axle Thrust Washer
(Superseded to 532006256)

$

$

Not available

8

Electrolux/AYP 874020652

Hex Bolt 3/8-24 x 3-1/4 (1" Thread Length)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532124697

Steel Ball
(Superseded to 532100482)

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 532124676

Spring Shift Fork Detent
(Superseded to 532006272)

$

$

Not available

11

Electrolux/AYP 532004985

Shift Fork, High-Low Range

$

$

Not available

12

Electrolux/AYP 532124931

Thrust Bearing Race
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532124667

4th Reduction Pinion
(Superseded to 532004212)

$8.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532124661

3rd Reduction Gear Shaft
(Superseded to 532004196)

$

$

Not available

15

Electrolux/AYP 532124677

Snap Ring, Crescent Type
(Superseded to 532006276)

$

$

Not available

16

Electrolux/AYP 532124679

High-Low Range Gears
(Superseded to 532063363)

$51.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532008118

Needle Bearing

$8.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532124705

Sintered Iron Bearing
(Superseded to 532008740)

$

$

Not available

19

Electrolux/AYP 532122238

Shift Fork Shaft, High-Low Range

$8.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532004218

Differential Pinion Spacer

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532124673

Differential Pinion Bushing
(Superseded to 532006252)

$5.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532124701

Gripco Centerlock Nut 3/8-24
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532004986

Shift Fork, L.H.
(Superseded to 4986R)

$

$

Not available

24

Electrolux/AYP 532124698

Oil Seal
(Superseded to 532007393)

$6.49

$

In Stock, Qty 7

0

25

Electrolux/AYP 532124709

Sintered Iron Bearing
(Superseded to 532000992)

$

$

Not available

26

Electrolux/AYP 532124672

Shift Fork Shaft
(Superseded to 532006216)

$

$

Not available

27

Electrolux/AYP 532006262

Shift Fork, R.H.

$28.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532122254

Shift Shaft, High-Low Range

$

$

Not available

29

Electrolux/AYP 532006269

Oil Seal

$

$

Not available

30

Electrolux/AYP 532005855

Pressure Relief Valve

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532122162

Gearcase, Rvs Idler Shaft & Bearings, R.H.

Note: (Inc. 17, 18, 25, 33,50,63,76,77,82)

$

$

Not available

32

Electrolux/AYP 532006277

Dowel Pin

$

$

Not available

33

Electrolux/AYP 532004225

Needle Bearing

$14.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532007396

Thrust Bearing Race

$

$

Not available

35

Electrolux/AYP 532004198

4th Reduction Gear Shaft

$31.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532004200

4th Reduction Gear Spacer

$

$

Not available

37

Electrolux/AYP 532007395

Thrust Bearing Race

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532121878

Gearcase Gasket

$

$

Not available

39

Electrolux/AYP 532122163

Gearcase & Bearings, L.H.

Note: (Includes Key Numbers 18, 25, 49, 50 (2), 51 and 52)

$

$

Not available

40

Electrolux/AYP 813320400

Pipe Plug 1/2-14 N.P.T.

$

$

Not available

41

Electrolux/AYP 874780526

Hex Bolt 5/16-18 UNC x 1-5/8 Grade 5

$

$

Not available

42

Electrolux/AYP 813170100

Elbow, Street, 90ø

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532006271

Oil Seal

$

$

Not available

46

Electrolux/AYP 813060200

Pipe Plug 1/4-18 N.P.T.

$

$

Not available

47

Electrolux/AYP 874780524

Hex Bolt 5/16-18 x 1-1/2 Grade 5
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

48

Electrolux/AYP 810140500

Washer, Lock, Extra Heavy 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532004895

Needle Bearing

$17.99

$

In Stock, Qty 20+

0

50

Electrolux/AYP 532004222

Needle Bearing

$8.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 532001529

Needle Bearing
(Superseded to 1529R)

$

$

Not available

52

Electrolux/AYP 532008119

Needle Bearing

$21.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532004220

Thrust Bearing Race

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 532004209

3rd Reduction Pinion, Low
(Superseded to 4209R)

$

$

Not available

55

Electrolux/AYP 532124668

4th Reduction Gear
(Superseded to 532004213)

$42.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532004442

3rd Reduction Pinion Spacer

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 532004195

2nd Reduction Gear Shaft

$46.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532004214

Final Drive Pinion

$

$

Not available

59

Electrolux/AYP 532004194

1st Reduction Gear Shaft

$26.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532007528

1st Reduction Shaft Spacer

$

$

Not available

61

Electrolux/AYP 532124666

3rd Reduction Plnion Hlgh
(Superseded to 532004208)

$14.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532124665

2nd Reduction Gear

$

$

Not available

63

Electrolux/AYP 532007398

Needle Bearing

$

$

Not available

64

Electrolux/AYP 532124664

Low Speed Gear and 2nd Reduct??on Pinion Cluster
(Superseded to 532004203)

$

$

Not available

65

Electrolux/AYP 532004204

Reverse Gear

$

$

Not available

66

Electrolux/AYP 532002898

Key (Hi-Pro) 1/8 x 17/32

$

$

Not available

67

Electrolux/AYP 532004926

Snap Ring, Crescent Type

$2.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532004205

Intermediate Speed Gear

$

$

Not available

69

Electrolux/AYP 532004206

High Speed Gear
(Superseded to 583750601)

$

$

Not available

70

Electrolux/AYP 532001370

Thrust Bearing Race

$6.49

$

In Stock, Qty 17

0

71

Electrolux/AYP 532124681

Intermediate and High Speed Cluster Pinions
(Superseded to 532063369)

$31.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 532000208

Input Shaft

$103.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 532004201

Low Speed Pinion

$

$

Not available

74

Electrolux/AYP 812000002

E-Ring

$7.49

$

In Stock, Qty 11

0

75

Electrolux/AYP 532001153

Reverse Idler Gear

$

$

Not available

76

Electrolux/AYP 532007392

Reverse Idler Thrust Washer
(Superseded to 532124862)

$

$

Not available

77

Electrolux/AYP 532003990

Needle Bearing

$

$

Not available

78

Electrolux/AYP 873220500

Hex Nut 5/16-18

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 532001167

Sealing Washer

$2.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 873360700

Hex Jam Nut 7/16-20

$5.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 532124675

Oil Seal
(Superseded to 532006270)

$

$

Not available

82

Electrolux/AYP 532124696

Reverse Idler Shaft
(Superseded to 532007384)

$

$

Not available

84

Electrolux/AYP 532005384

Gear Shift Lever, Bent

$24.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 532002978

Gear Shift Cap
(Superseded to 2978J)

$

$

Not available

86

Electrolux/AYP 532124682

Gear Shift Ball Cover and Pin
(Superseded to 532063385)

$

$

Not available

87

Electrolux/AYP 532124704

Shift Lever Guide Ball, Keyed
(Superseded to 532008739)

$21.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532004924

Spring

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 819151516

Washer 15/32 x 15/16 x 16 Gauge
(Superseded to 734117801)

$

$

Not available

90

Electrolux/AYP 532110542

Shift Mechanism Seal

$10.99

$

In Stock, only 4 left!

0

91

Electrolux/AYP 819181511

Washer 9/16 x 15/16 x 12 Gauge

$2.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 532000075

Gear Shift Gate and Reinforcement

$

$

Not available

93

Electrolux/AYP 532006274

Shift Ball Cover Gasket

$6.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 876020412

Cotter Pin 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

95

Electrolux/AYP 810040500

Washer, Lock 5/16

$4.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 874760514

Hex Bolt 5/16 x 18 UNC x 7/8

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 532124678

Gear Shift Lever Assembly

$

$

Not available

98

Electrolux/AYP 532122420

Transaxle Assembly (Less Brake Drum and Shift Lever)

$

$

Not available
