XC 1182HB - Poulan Pro Lawn Tractor MOWER LIFT Parts Diagram

Lawn Tractor

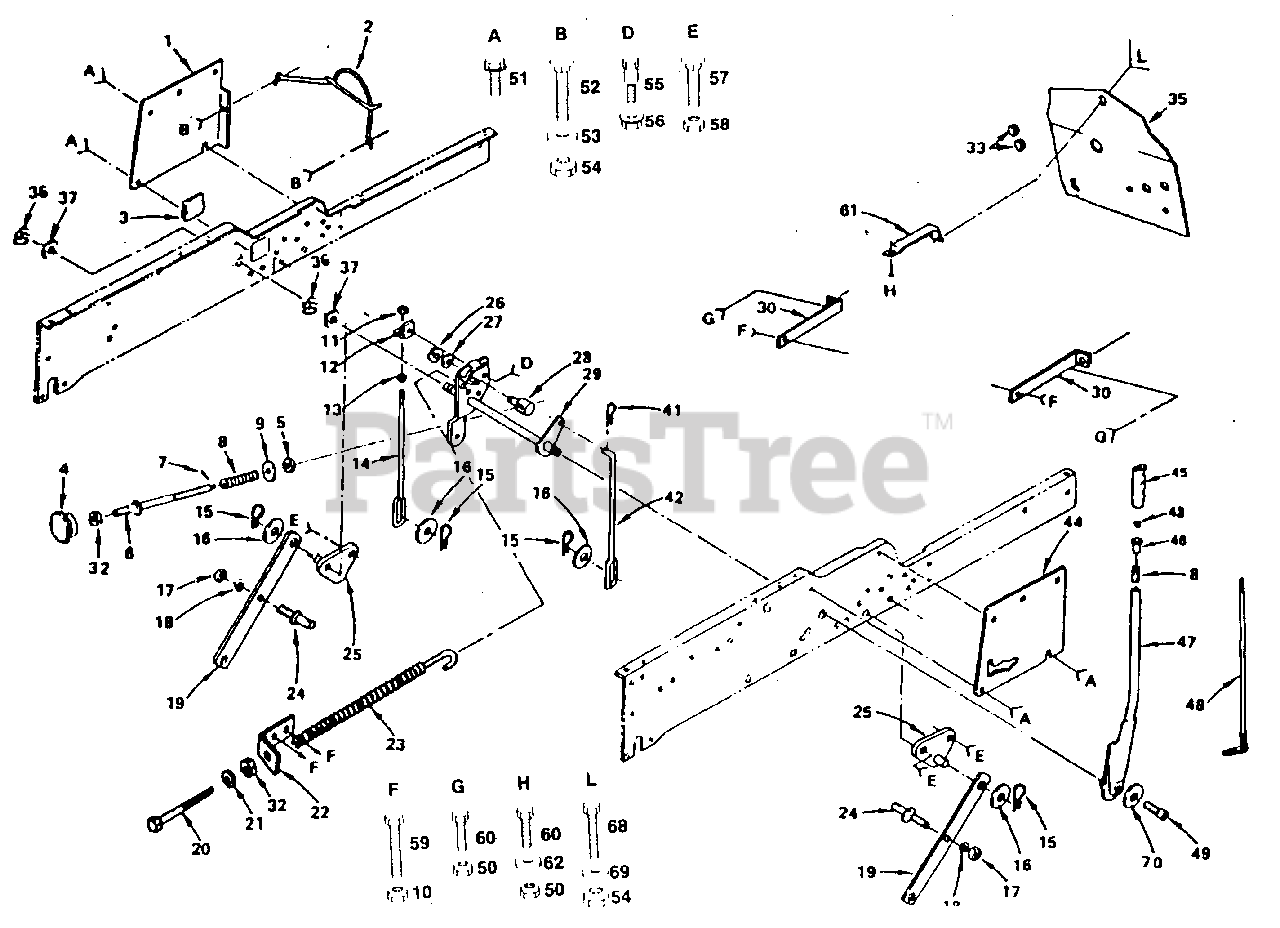

MOWER LIFT Parts Diagram

  • Title

1

Poulan 532121046

Panel, Side, L.H.

$

$

Not available

2

Poulan 532126651

Guard Assembly, Belt, Engine (AYP part number)

$

$

Not available

3

Poulan 532121794

Cover, Access (AYP part number)
(Superseded to 121794X)

$

$

Not available

4

Poulan 532121891

Handle, Adjust, Lift (AYP part number)
(Superseded to 121891X)

$

$

Not available

5

Poulan 532110807

Nut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 532110811

Rod, Adjust, Lift (AYP part number)
(Superseded to 110811X)

$

$

Not available

7

Poulan 876020308

Pin, Cotter (AYP part number)
(Superseded to 532003145)

$

$

Not available

8

Poulan 532124874

Spring (AYP part number)
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

9

Poulan 819131016

Washer 13/32 x 5/8 x 16 Ga. (AYP part number)

$6.49

$

In Stock, only 2 left!

0

10

Poulan 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

11

Poulan 873800600

Locknut, Hex w/Washer 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 532007594

Bracket, Lift, L.H. (AYP part number)

$

$

Not available

13

Poulan 873220600

Nut, Hex 3/8-16 (AYP part number)

$6.49

$

In Stock, only 4 left!

0

14

Poulan 532007596

Link, Lift, L.H. (AYP part number)
(Superseded to 7596J)

$

$

Not available

15

Poulan 532124960

Retainer, Spring (AYP part number)
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 819171616

Washer 17/32 x 1 x 16 Ga. (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 873220800

Nut, Hex 1/2-13 (AYP part number)
(Superseded to 873350800)

$

$

Not available

18

Poulan 810040800

Washer, Lock 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532105429

Arm, Suspension (AYP part number)

$

$

Not available

20

Poulan 532005328

Bolt, Adjust, Spring, Assist (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

21

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 9

0

22

Poulan 532124670

Bracket, Spring, Assist (AYP part number)
(Superseded to 532085902)

$

$

Not available

23

Poulan 532124687

Spring Assembly, Assist, Lift (AYP part number)
(Superseded to 532674247)

$

$

Not available

24

Poulan 532105413

Stud, Pivot Center (AYP part number)

$

$

Not available

25

Poulan 532105501

Bracket, Suspension (AYP part number)

$

$

Not available

26

Poulan 812000037

Klip Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 819151216

Washer 15/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 19151216)

$

$

Not available

28

Poulan 532110810

Trunnion, Stop Depth

$21.99

$

Usually ships in 3-10 days

0

29

Poulan 532120137

Shaft, Lift (AYP part number)

$

$

Not available

30

Poulan 532110904

Bracket, Shield, Heat Side (AYP part number)

$

$

Not available

32

Poulan 873350600

Nut, Hex Jam 3/8-16 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

33

Poulan 532110436

Grommet (AYP part number)
(Superseded to 532009151)

$

$

Not available

35

Poulan 532124220

Base, Shield, Heat

$

$

Not available

36

Poulan 812000022

Klip Ring (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

37

Poulan 819292016

Washer 29/32 x 1-1/4 x 16 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532124670

Retainer, Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

42

Poulan 532105503

Link, Lift, R.H. (AYP part number)

$

$

Not available

43

Poulan 532124526

Button, Plunger (AYP part number)
(Superseded to 532125925)

$

$

Not available

44

Poulan 532121045

Panel, Side, R.H.

$

$

Not available

45

Poulan 532109413

Grip, Handle (AYP part number)
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

46

Poulan 532122364

Plunger, Lever, Lift (AYP part number)
(Superseded to 532125925)

$

$

Not available

47

Poulan 532121002

Lever Assembly, Lift (AYP part number)
(Superseded to 532123096)

$

$

Not available

48

Poulan 532121006

Rod Assembly, Lever (AYP part number)

$34.99

$

Usually ships in 3-10 days

0

49

Poulan 874780624

Bolt, Hex 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$

$

Not available

50

Poulan 873680400

Locknut 1/4-20 (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

51

Poulan 817490608

Screw, Hex Washer Thd. 3/8-16 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 872140508

Bolt, Carrlage 5/16-18 x 1 (AYP part number)
(Superseded to 595901501)

$3.99

$

In Stock, Qty 17

0

53

Poulan 819111610

Washer 11/32 x 1 x 10 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 73680500

Locknut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

55

Poulan 532007901

Bolt, Shoulder (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

56

Poulan 873900400

Nut, Hex Flange 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

57

Poulan 872140606

Bolt, Carrlage 3/8-16 x 3/4 (AYP part number)

$

$

Not available

58

Poulan 873930600

Nut, Centerlock 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

59

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 874780408

Bolt, Hex 1/4-20 x 1/2 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

61

Poulan 532124290

Brace, Heat Shield

$

$

Not available

62

Poulan 819090816

Washer 9/32 x 1/2 x 16 Ga. (AYP part number)

$

$

Not available

68

Poulan 874760512

Bolt, Hex 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

69

Poulan 819111216

Washer 11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

70

Poulan 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0
