XE 750 PAR - Poulan Pro Walk-Behind Mower GEARCASE ASSEMBLY Parts Diagram

Walk-Behind Mower

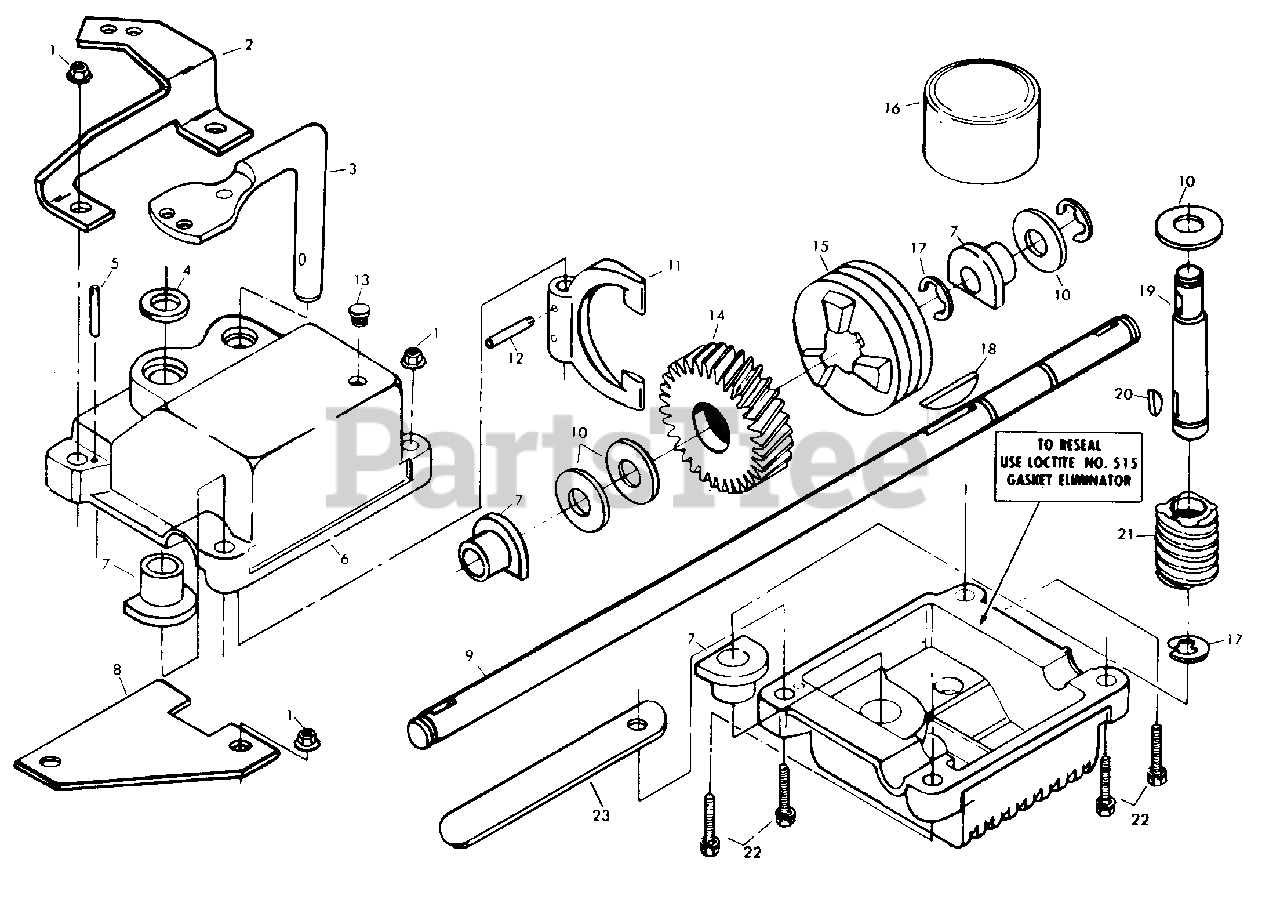

GEARCASE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532053838

Keps Locknut (AYP part number)
(Superseded to 873640400)

$

$

Not available

2

Poulan 532085178

Adjusting Bracket (AYP part number)
(Superseded to 532085177)

$9.99

$

Usually ships in 3-10 days

0

3

Poulan 532088386

Shifter Assembly (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

4

Poulan 532057072

Seal

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 532057388

Grooved Pin (AYP part number)

$

$

Not available

6

Poulan 532048032

Gear Case Halves (Inc. Upper & Lower Halves) (AYP part number)

Note: (Incl. Ref. 4, 5, 7)

$

$

Not available

7

Poulan 532077881

Bearing (AYP part number)

$30.99

$

In Stock, only 1 left!

0

8

Poulan 532077039

Spring Bracket (AYP part number)
(Superseded to 81585X004)

$

$

Not available

9

Poulan 532750430

Drive Shaft (AYP part number)

$

$

Not available

10

Poulan 532057079

Hardened Washer (AYP part number)

$6.49

$

In Stock, Qty 19

0

11

Poulan 532075144

Yoke Clutch (AYP part number)

$

$

Not available

12

Poulan 532087822

Grooved Pin (AYP part number)

$

$

Not available

13

Poulan 532086447

Plug (AYP part number)

$

$

Not available

14

Poulan 532083659

Helical Gear (AYP part number)
(Superseded to 532133804)

$

$

Not available

15

Poulan 532750436

Jaw Clutch (AYP part number)

$

$

Not available

16

Poulan 532750355

Grease (AYP part number)
(Superseded to 532006066)

$

$

Not available

17

Poulan 532053753

E-Ring (AYP part number)
(Superseded to 812000003)

$

$

Not available

18

Poulan 532850848

Hi-Pro Key (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532083720

Worm Shaft (AYP part number)

$18.99

$

Usually ships in 3-10 days

0

20

Poulan 532065692

Woodruff Key #3 (AYP part number)

$

$

Not available

21

Poulan 532083680

Worm (AYP part number)
(Superseded to 532154753)

$

$

Not available

22

Poulan 532050950

Hex Head Mach. Screw (AYP part number)
(Superseded to 532002276)

$

$

Not available

23

Poulan 532751046

Identification Tag

$

$

Not available
