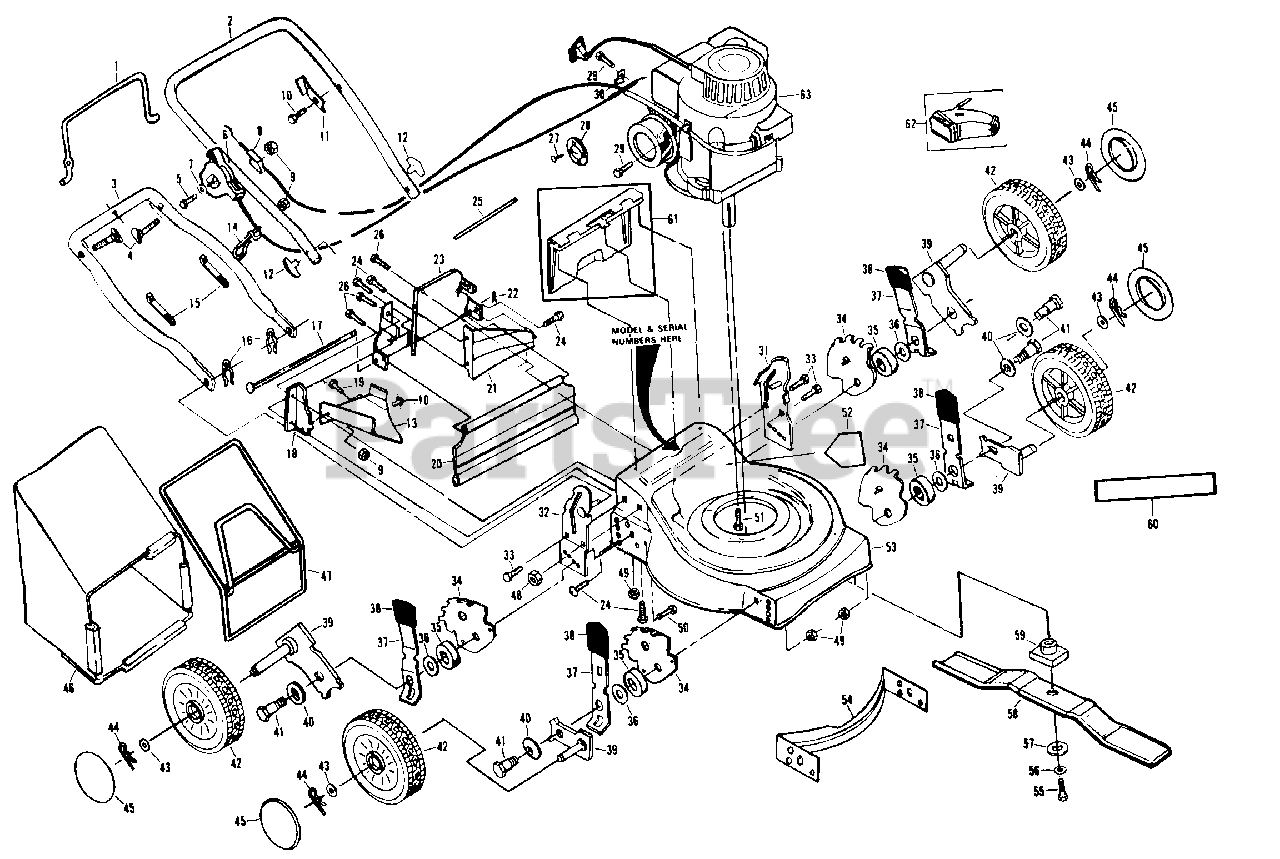

XE 835 AR - Poulan Pro Walk-Behind Mower MOWER ASSEMBLY, ENGINE B/S 92502 Parts Diagram

Walk-Behind Mower

MOWER ASSEMBLY, ENGINE B/S 92502 Parts Diagram

  • Title

1

Poulan 532800633

Control Bar (AYP part number)

$

$

Not available

2

Poulan 532850975

Upper Handle (AYP part number)

$

$

Not available

3

Poulan 532800481

Lower Handle (AYP part number)
(Superseded to 532125214)

$

$

Not available

4

Poulan 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

5

Poulan 532085692

Machine Screw (AYP part number)
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532851461

Throttle Control (AYP part number)

$

$

Not available

7

Poulan 532085723

Flat Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 532851250

Engine Zone Cable (AYP part number)
(Superseded to 532851669)

$18.99

$

Usually ships in 3-10 days

0

9

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 532750097

Hex Washer Head Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

11

Poulan 532850734

Up-Stop Bracket (AYP part number)
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

12

Poulan 532063688

Handle Knob (AYP part number)
(Superseded to 532136376)

$

$

Not available

13

Poulan 532088554

Discharge Baffle (AYP part number)
(Superseded to 532133335)

$

$

Not available

14

Poulan 532800357

Rope Guide (AYP part number)
(Superseded to 532132001)

$18.99

$

In Stock, Qty 8

0

15

Poulan 532066426

Wire Tie (AYP part number)
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532051793

Hairpin Cotter (AYP part number)

$7.49

$

In Stock, only 1 left!

0

17

Poulan 532088664

Skirt Rod (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 532750433

Side Baffle (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 532058609

Machine Screw (AYP part number)

$

$

Not available

20

Poulan 532700062

Rear Skirt (AYP part number)
(Superseded to 532140657)

$

$

Not available

21

Poulan 532700273

Rear Baffle (AYP part number)
(Superseded to 532125035)

$9.49

$

Usually ships in 3-10 days

0

22

Poulan 532700279

Retainer Clip (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532800995

Back Plate (AYP part number)

$

$

Not available

24

Poulan 532054583

Hex Tapping Screw (AYP part number)

$

$

Not available

25

Poulan 532750655

Hinge Rod (Door) (AYP part number)

$

$

Not available

26

Poulan 532081283

Self Tapping Screw (AYP part number)
(Superseded to 81283)

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 532093705

Screw (AYP part number)
(Superseded to 532069485)

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

28

Poulan 532223389

Muffler Deflector

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

29

Poulan 532107488

Thread Rolling Screw (AYP part number)

$

$

Not available

30

Poulan 532022372

Cable Clamp

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

31

Poulan 532800489

Handle Bracket Assembly (Left) (AYP part number)

$

$

Not available

32

Poulan 532800488

Handle Bracket Assembly (Right)

$

$

Not available

33

Poulan 532055187

Thread Cutting Screw (AYP part number)
(Superseded to 817000512)

$6.49

$

In Stock, Qty 20+

0

34

Poulan 532850984

Wheel Adjusting Bracket (AYP part number)

$

$

Not available

35

Poulan 532084920

Spacer (AYP part number)
(Superseded to 532146630)

$6.49

$

In Stock, Qty 5

0

36

Poulan 532088348

Flat Washer (AYP part number)

$7.49

$

In Stock, only 4 left!

0

37

Poulan 532850856

Selector Spring (AYP part number)
(Superseded to 532700331)

$4.99

$

In Stock, Qty 11

0

38

Poulan 532087877

Selector Knob (AYP part number)

$6.49

$

In Stock, only 3 left!

0

39

Poulan 532085022

Axle Arm Assembly (AYP part number)
(Superseded to 532085021)

$14.99

$

Usually ships in 3-10 days

0

40

Poulan 532062335

Belleville Washer (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

41

Poulan 532084921

Shoulder Bolt (AYP part number)
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

42

Poulan 532850957

Wheel Assembly (AYP part number)
(Superseded to 532146248)

$

$

Not available

43

Poulan 532052160

Flat Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 532077400

Hubcap (AYP part number)

$7.49

$

In Stock, only 2 left!

0

46

Poulan 532800563

Grassbag Assembly

$

$

Not available

47

Poulan 532088614

Catcher Frame Assembly

$54.99

$

In Stock, only 1 left!

0

48

Poulan 532063124

Locknut (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

49

Poulan 532074400

Locknut (AYP part number)
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 532066238

Carriage Bolt (AYP part number)
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

51

Poulan 532850998

Hex Head Thread Rolling Screw (AYP part number)
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

52

Poulan 532085463

Danger Decal (AYP part number)

$

$

Not available

53

Poulan 532800994

Housing Assembly (AYP part number)

Note: (Incl. Ref. #52)

$

$

Not available

54

Poulan 532700277

Front Baffle (AYP part number)

$

$

Not available

55

Poulan 532851084

Hex Head Screw
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

56

Poulan 532850263

Helical Washer (AYP part number)
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

57

Poulan 532851074

Hardened Washer (AYP part number)

$4.99

$

In Stock, Qty 20+

0

58

Poulan 532850972

20" Blade
(Superseded to 532145106)

$14.99

$

In Stock, Qty 8

0

59

Poulan 532850977

Blade Adapter (AYP part number)
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

60

Poulan 532800644

"Poulan" Decal (AYP part number)

$

$

Not available

61

Poulan 532048138

Rear Door Kit (AYP part number)
(Superseded to 147613)

Note: (Incl. Ref. 25)

$

$

Not available

63

Poulan 532800656

Engine - Briggs/Stratton Model No. 92502 Type No. 3190-01, Owners Manual (AYP part number)

Note: Not Shown.

$

$

Not available
