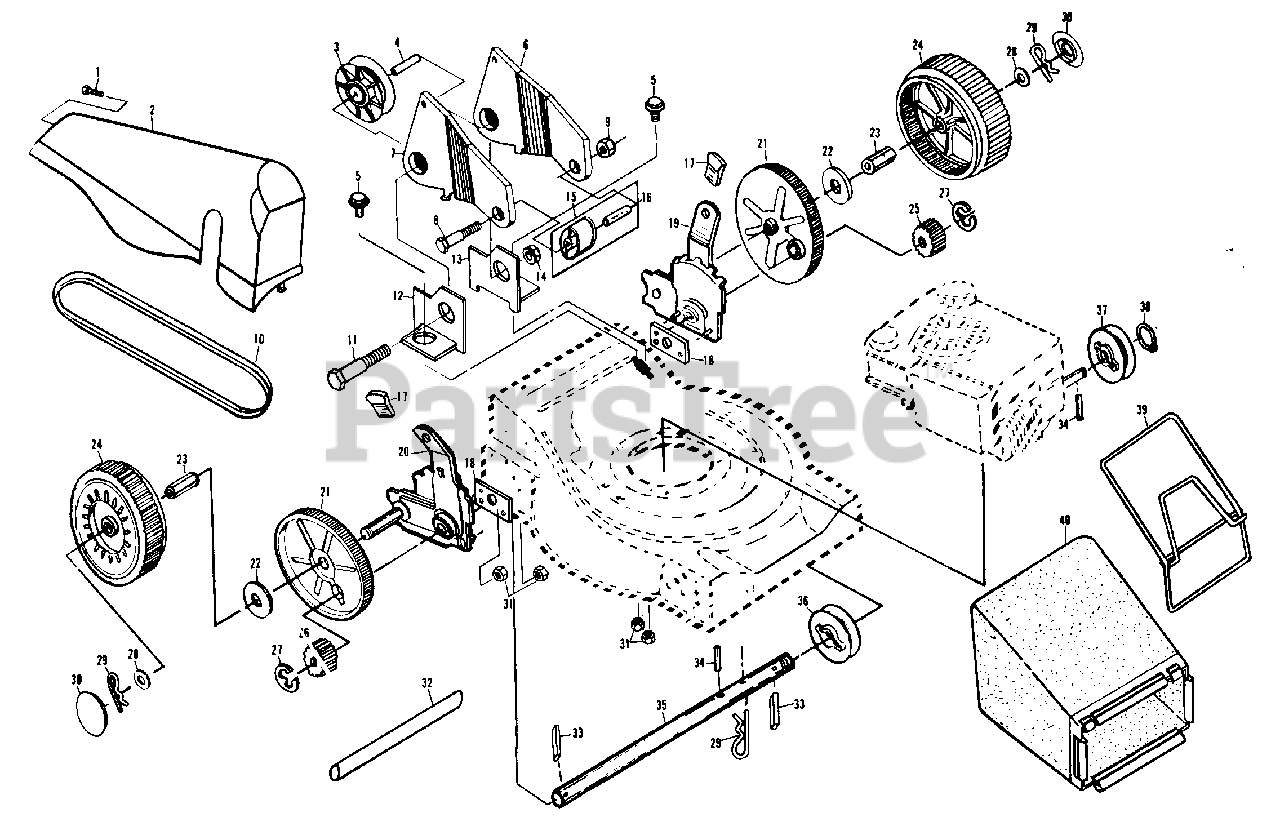

XE 840PAR - Poulan Pro Lawn Tractor DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Poulan 532750097

Hex Washer Head Screw (AYP part number)
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

2

Poulan 532850043

Drive Cover (AYP part number)

$

$

Not available

3

Poulan 532088516

Idler Pulley (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 532850037

Pulley Spacer (AYP part number)

$

$

Not available

5

Poulan 532065231

Hex Head Machine Screw (AYP part number)

$

$

Not available

6

Poulan 532850033

Idler Bracket (Left) (AYP part number)

$

$

Not available

7

Poulan 532850035

Idler Bracket (Right) (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 532053109

Hex Head Bolt (AYP part number)
(Superseded to 74760424)

$

$

Not available

9

Poulan 532050962

Hex Locknut (AYP part number)

$

$

Not available

10

Poulan 532850028

Drive Belt

$24.99

$

Usually ships in 3-10 days

0

11

Poulan 532050884

Hex Head Bolt (AYP part number)
(Superseded to 874760524)

$1.49

$

Usually ships in 3-10 days

0

12

Poulan 532850031

Pivot Bracket (Right) (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 532850029

Pivot Bracket (Left) (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 532063124

Locknut (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 532048160

Idler Assembly Kit (Inc. 16) (AYP part number)

$

$

Not available

16

Poulan 532088576

Idler Spacer (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

17

Poulan 532077865

Selector Knob (AYP part number)
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

18

Poulan 532850049

Spacer Plate (AYP part number)

$

$

Not available

19

Poulan 532850982

Selector Assembly (Left) (AYP part number)

$

$

Not available

20

Poulan 532850983

Selector Assembly (Right) (AYP part number)

$

$

Not available

21

Poulan 532088080

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

22

Poulan 532067725

Washer (AYP part number)

$7.49

$

In Stock, Qty 20+

0

23

Poulan 532088446

Wheel Bushing (AYP part number)

$

$

Not available

24

Poulan 532850707

Wheel & Tire Assembly (AYP part number)

$

$

Not available

25

Poulan 532850016

Drive Pinion (Left) (AYP part number)
(Superseded to 532165096)

$

$

Not available

26

Poulan 532850017

Drive Pinion (Right) (AYP part number)
(Superseded to 532165097)

$12.99

$

Usually ships in 3-10 days

0

27

Poulan 532053753

E-Ring (AYP part number)
(Superseded to 812000003)

$

$

Not available

28

Poulan 532052160

Flat Washer (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 532085179

Retainer Clip (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

30

Poulan 532800544

Hubcap (AYP part number)

$

$

Not available

31

Poulan 532063601

Locknut (AYP part number)
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 532850373

Drive Shaft Cover (AYP part number)

$

$

Not available

33

Poulan 532850018

Drive Pawl (AYP part number)

$

$

Not available

34

Poulan 532088028

Roll Pin (AYP part number)
(Superseded to 532851980)

$

$

Not available

35

Poulan 532850025

Drive Shaft (AYP part number)

$

$

Not available

36

Poulan 532088082

Driven Pulley (AYP part number)

$

$

Not available

37

Poulan 532850027

Drive Pulley

$

$

Not available

38

Poulan 532058334

Retaining Ring (AYP part number)
(Superseded to 532002286)

$

$

Not available

39

Poulan 532088614

Catcher Frame

$54.99

$

In Stock, only 1 left!

0

40

Poulan 532800563

Grass Bag Assembly

$

$

Not available
