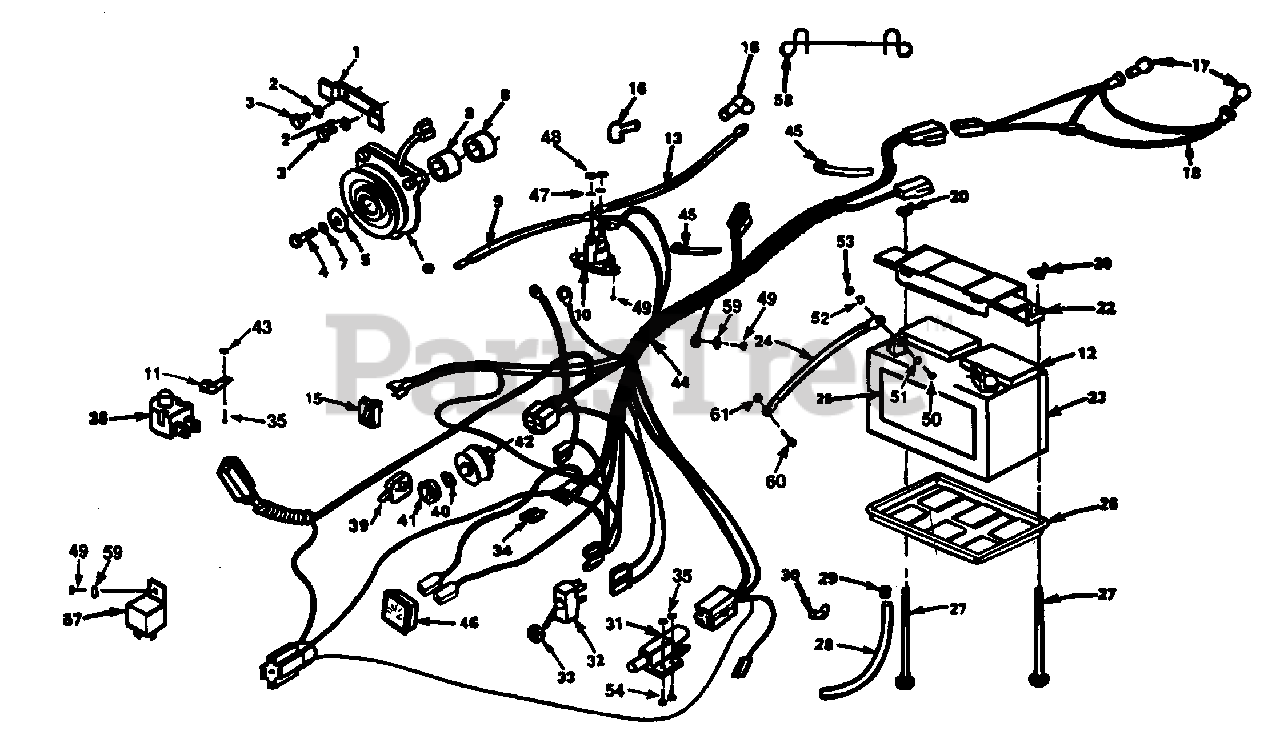

XEG 1182HAR - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532110882

Clutch Stop (AYP part number)

$

$

Not available

2

Poulan 810040600

Lock Washer (AYP part number)
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

3

Poulan 874780612

Hex Bolt (AYP part number)

$7.49

$

In Stock, only 2 left!

0

4

Poulan 874610724

Hex Bolt (AYP part number)

$

$

Not available

5

Poulan 532108252

Washer (AYP part number)

$

$

Not available

6

Poulan 532109550

Electric Clutch (AYP part number)

$

$

Not available

7

Poulan 810040700

Lock Washer (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 532106367

Clutch Spacer (AYP part number)

$

$

Not available

9

Poulan 532124770

Battery Cable (AYP part number)
(Superseded to 532185464)

$11.99

$

Usually ships in 3-10 days

0

10

Poulan 532109081

Solenoid (AYP part number)
(Superseded to 532109946)

$24.99

$

In Stock, Qty 20+

0

11

Poulan 532004171

Insulated Clip (AYP part number)
(Superseded to 532124967)

$

$

Not available

12

Poulan 532121264

Battery Caps (AYP part number)

$

$

Not available

13

Poulan 532005115

Starter Cable (AYP part number)
(Superseded to 532005114)

$

$

Not available

15

Poulan 532110712

Light Switch (AYP part number)

$8.99

$

In Stock, Qty 11

0

16

Poulan 532124783

Terminal Cover (AYP part number)
(Superseded to 532131563)

$8.99

$

Usually ships in 3-10 days

0

17

Poulan 532007662

Light Bulb (AYP part number)
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

18

Poulan 532110859

Light Socket Harness (AYP part number)

$

$

Not available

20

Poulan 532123198

Wing Nut (AYP part number)
(Superseded to 532146525)

$

$

Not available

22

Poulan 532102476

Terminal Guard (AYP part number)
(Superseded to 532150109)

$

$

Not available

23

Poulan 532121537

Battery (AYP part number)
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

24

Poulan 532124773

Ground Cable (AYP part number)
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

25

Poulan 532121549

Battery Decal (AYP part number)

$

$

Not available

26

Poulan 532124886

Battery Tray (AYP part number)
(Superseded to 532007603)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 872240460

Carriage Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 532100541

Plastic Tube (AYP part number)
(Superseded to 532007697)

$

$

Not available

29

Poulan 532109596

Hose Clamp (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532100207

Clip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 532104445

Interlock Switch (AYP part number)

$17.99

$

In Stock, only 1 left!

0

32

Poulan 532109626

P.T.O. Switch (AYP part number)

$

$

Not available

33

Poulan 532004022

Hex Nut (AYP part number)

$

$

Not available

34

Poulan 532006347

30 Amp Fuse (AYP part number)
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 873951000

No. 10-32 Keps Nut (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 532121305

Seat Switch (AYP part number)
(Superseded to 532421062)

$10.99

$

In Stock, Qty 18

0

39

Poulan 532122147

Key (AYP part number)

$

$

Not available

40

Poulan 532109788

Ignition Nut (AYP part number)
(Superseded to 532124211)

$4.99

$

In Stock, only 1 left!

0

41

Poulan 532109787

Ignition Bezel (AYP part number)
(Superseded to 532147626)

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 532125104

Ignition Switch (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

43

Poulan 874641008

Slot Pan Hd. Screw (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

44

Poulan 532124219

Ignition Harness

$

$

Not available

45

Poulan 532124756

Tie Cable (AYP part number)
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

46

Poulan 532122822

Ammeter (AYP part number)

$18.99

$

In Stock, only 1 left!

0

47

Poulan 810090400

Lock Washer (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

48

Poulan 873350400

Hex Jam Nut (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

49

Poulan 817190408

Thd. Cutting Washer Hd. Hex Screw (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

50

Poulan 874760412

Hex Bolt 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 5

0

51

Poulan 819091016

Washer (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 12

0

52

Poulan 810040400

Lock Washer 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

53

Poulan 873220400

Hex Nut 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

54

Poulan 871031008

Washer Hd. Hex Screw (AYP part number)
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

57

Poulan 532109748

Relay Assembly (AYP part number)

$34.99

$

In Stock, only 1 left!

0

58

Poulan 532121465

Wire Tie (AYP part number)

$

$

Not available

59

Poulan 811050600

Ext. Tooth Lock Washer (AYP part number)
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

60

Poulan 873680600

Crownlock Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

61

Poulan 874760612

Fin. Hex Bolt (AYP part number)

$4.99

$

In Stock, Qty 19

0

Poulan 532124229

Owner's Manual (English) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532124230

Owner's Manual (French) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532101539

Tractor 15 degree Slope Instruction Sheet (English) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532101572

Tractor 15 degree Slope Instruction Sheet (French) (AYP part number)

Note: Not Shown.

$

$

Not available
