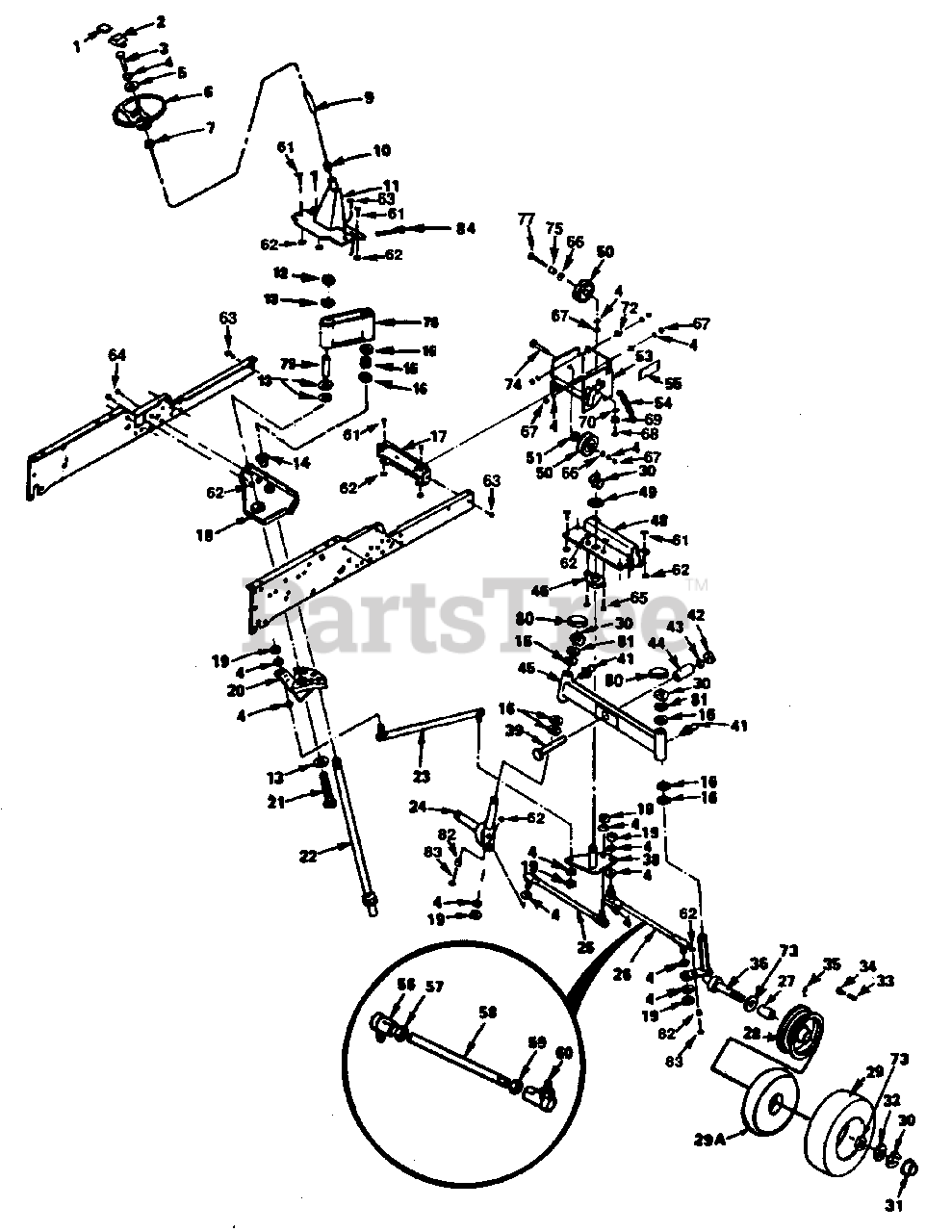

XEG 1182HAR - Poulan Pro Lawn Tractor STEERING Parts Diagram

Lawn Tractor

STEERING Parts Diagram

  • Title

1

Poulan 532124234

Steering Wheel Decal (AYP part number)

$

$

Not available

2

Poulan 532100710

Steering Wheel Insert (AYP part number)

$

$

Not available

3

Poulan 874780616

Hex Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 810040600

Lock Washer 3/8 (AYP part number)
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

5

Poulan 819133808

Washer 13/32 x 2-3/8 x 8 Ga. (AYP part number)
(Superseded to 583789501)

$

$

Not available

6

Poulan 532100713

Steering Wheel (AYP part number)
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

7

Poulan 532100711

Steering Adapter (AYP part number)
(Superseded to 532186737)

$7.99

$

In Stock, Qty 20+

0

9

Poulan 532100714

Steering Sleeve (AYP part number)

$

$

Not available

10

Poulan 532009038

Bearing (AYP part number)
(Superseded to 9038R)

$

$

Not available

11

Poulan 532101274

Steering Support Assembly (AYP part number)

$

$

Not available

12

Poulan 873680800

Locknut (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

13

Poulan 819172610

Washer (AYP part number)
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 532104239

Flanged Bearing (AYP part number)

$12.99

$

Usually ships in 3-10 days

0

15

Poulan 812000034

Klip Ring (AYP part number)

$

$

Not available

16

Poulan 532124931

Thrust Bearing (AYP part number)
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

17

Poulan 532005213

Frame Front Bracket (AYP part number)

$

$

Not available

18

Poulan 532102439

Steering Support Bracket (AYP part number)
(Superseded to 532104240)

$

$

Not available

19

Poulan 873610600

Hex Nut 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 532120424

Sector Assembly (AYP part number)

$

$

Not available

21

Poulan 874780880

Hex Bolt (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

22

Poulan 532102458

Steering Shaft (AYP part number)

$

$

Not available

23

Poulan 532110497

Drag Link (AYP part number)
(Superseded to 110497X)

$

$

Not available

24

Poulan 532106046

L.H. Spindle (AYP part number)

$

$

Not available

26

Poulan 532109849

Tie Rod (AYP part number)

$

$

Not available

27

Poulan 532009040

Bearing

$6.49

$

In Stock, Qty 20+

0

28

Poulan 532124731

8" Front Rim Assembly (AYP part number)

$

$

Not available

29

Poulan 532003938

Tire (AYP part number)
(Superseded to 532122075)

$87.99

$

Usually ships in 3-10 days

0

29A

Poulan 532008134

Tube (not furnished with tractor) (AYP part number)

$67.99

$

Usually ships in 3-10 days

0

30

Poulan 812000029

Klip Ring (AYP part number)

$3.99

$

In Stock, Qty 20+

0

31

Poulan 532104757

Front Hub Cap (AYP part number)

$3.99

$

In Stock, Qty 20+

0

32

Poulan 532121748

Washer (AYP part number)

$3.49

$

In Stock, Qty 20+

0

33

Poulan 532059192

Valve Cap (AYP part number)

$7.49

$

In Stock, only 1 left!

0

34

Poulan 532065139

Valve Stem (AYP part number)

$10.99

$

In Stock, Qty 20+

0

35

Poulan 532000278

Grease Fitting (AYP part number)

$6.49

$

In Stock, Qty 20+

0

36

Poulan 532106045

R.H. Spindle (AYP part number)

$

$

Not available

38

Poulan 532108137

Bellcrank Assembly (AYP part number)

$

$

Not available

39

Poulan 874781044

Hex Bolt (AYP part number)

$

$

Not available

41

Poulan 532124836

Grease Fitting (AYP part number)
(Superseded to 532006855)

$7.49

$

In Stock, only 3 left!

0

42

Poulan 873221000

Hex Nut 5/8-11 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 810041000

Lock Washer 5/8 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

44

Poulan 532005298

Axle Pivot Tube (AYP part number)

$

$

Not available

45

Poulan 532124686

Front Axle Assembly (AYP part number)

$

$

Not available

46

Poulan 532005292

Bellcrank Bushing (AYP part number)
(Superseded to 532140342)

$

$

Not available

48

Poulan 532005284

Axle Bracket (AYP part number)

$

$

Not available

49

Poulan 819292016

Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 532124858

Idler Pulley (AYP part number)

$

$

Not available

51

Poulan 819133808

Washer (AYP part number)
(Superseded to 583789501)

$

$

Not available

53

Poulan 532120542

Idler Bracket Assembly (AYP part number)

$

$

Not available

54

Poulan 532007190

Extension Spring (AYP part number)

$

$

Not available

55

Poulan 532108367

Instruction Decal (AYP part number)

$

$

Not available

56

Poulan 532109851

L.H. Thd. Tie Rod Joint

$31.99

$

Usually ships in 3-10 days

0

57

Poulan 873700600

L.H. Hex Jam Nut (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 532007919

Tie Rod (AYP part number)
(Superseded to 532121159)

$

$

Not available

59

Poulan 873360600

Hex Jam Nut (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 532109850

R.H. Thd. Tie Rod Joint (AYP part number)
(Superseded to 532121160)

$24.99

$

In Stock, only 2 left!

0

61

Poulan 874760612

Hex Bolt (AYP part number)

$4.99

$

In Stock, Qty 17

0

62

Poulan 873680600

Lock Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

63

Poulan 817490612

Thd. Rolling Washer Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

64

Poulan 874780616

Hex Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 874760616

Hex Bolt 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 819131413

Washer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

67

Poulan 873220600

Hex Nut 3/8-16 (AYP part number)

$6.49

$

In Stock, only 3 left!

0

68

Poulan 874930516

Hex Bolt (AYP part number)
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 532100644

Clutch Handle Bushing (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 819111416

Washer (AYP part number)
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

71

Poulan 873680500

Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

72

Poulan 532106615

Idler Bracket Mounting Pin (AYP part number)
(Superseded to 532677928)

$6.49

$

Usually ships in 3-10 days

0

73

Poulan 532121749

Washer (AYP part number)

$3.49

$

In Stock, Qty 20+

0

74

Poulan 874760632

Hex Bolt (AYP part number)
(Superseded to 874930632)

$6.49

$

Usually ships in 3-10 days

0

75

Poulan 532102933

Split Spacer (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

76

Poulan 532121177

Collar Weld Assembly (AYP part number)

$

$

Not available

77

Poulan 874760636

Bolt (AYP part number)

$6.49

$

In Stock, only 1 left!

0

79

Poulan 532120199

Tube (AYP part number)

$9.99

$

Usually ships in 3-10 days

0

80

Poulan 532121232

Dust Cap Cover (AYP part number)

$3.99

$

In Stock, Qty 20+

0

81

Poulan 532121748

Washer (AYP part number)

$3.49

$

In Stock, Qty 20+

0

82

Poulan 532110946

Spindle Stop (AYP part number)

$

$

Not available

83

Poulan 874520632

Hex Bolt (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 876020816

Cotter Pin (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
