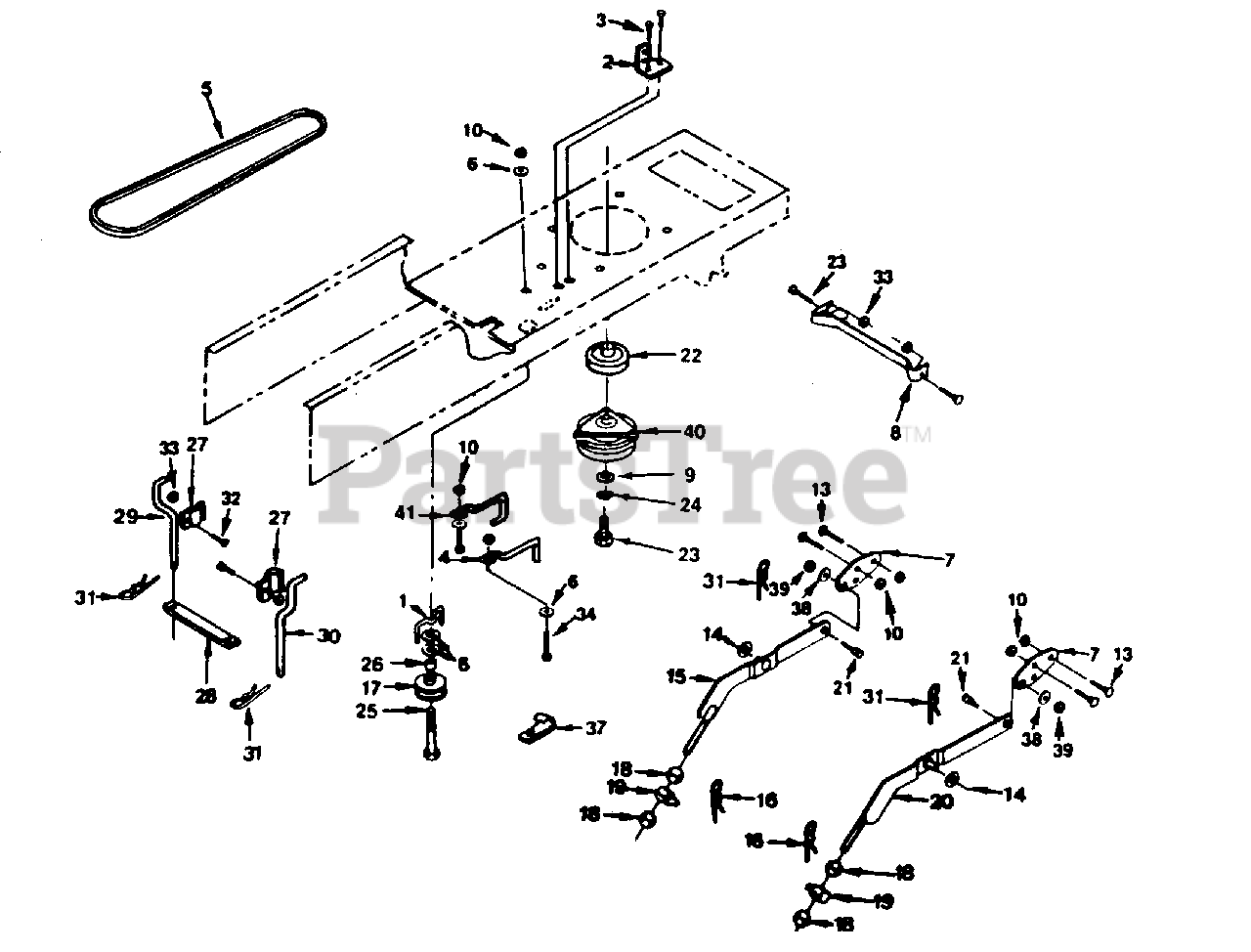

XEL 1122AR - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Poulan 532109070

Belt Keeper (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 532108236

Switch Bracket (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

3

Poulan 817021008

Tapping Hex Screw (AYP part number)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532105730

R.H. Engine Belt Keeper (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 532125907

Drive V-Belt (AYP part number)

$36.99

$

In Stock, Qty 20+

0

6

Poulan 819131312

Washer (AYP part number)
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 532105864

Suspension Bracket (AYP part number)

$

$

Not available

8

Poulan 532109169

Clutch Retainer (AYP part number)
(Superseded to 532109172)

$

$

Not available

9

Poulan 532108252

Washer (AYP part number)

$

$

Not available

10

Poulan 873680600

Crownlock Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

12

Poulan 874610764

Hex Bolt 7/16-20 x 4 (AYP part number)
(Superseded to 871130768)

$

$

Not available

13

Poulan 872140606

Sq. Neck Round Hd. Bolt (AYP part number)

$

$

Not available

14

Poulan 819171516

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

15

Poulan 532121599

L.H. Suspension Arm Assembly (AYP part number)

$

$

Not available

16

Poulan 532009135

Spring Retainer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532123674

Flat Idler (AYP part number)

$31.99

$

In Stock, only 2 left!

0

18

Poulan 873220800

Hex Nut 1/2-13 (AYP part number)
(Superseded to 873350800)

$

$

Not available

19

Poulan 532106308

Lower Lift Trunnion (AYP part number)
(Superseded to 532130171)

$

$

Not available

20

Poulan 532121598

R.H. Suspension Arm Assembly (AYP part number)

$

$

Not available

21

Poulan 532105848

Shoulder Bolt (AYP part number)

$

$

Not available

22

Poulan 532109841

Engine Pulley (AYP part number)
(Superseded to 532136905)

$42.99

$

Usually ships in 3-10 days

0

23

Poulan 872140506

Carriage Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 810040700

Lock Washer (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 874760644

Hex Bolt 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 532004470

Spacer (AYP part number)
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 532106190

Clamp (AYP part number)

$

$

Not available

28

Poulan 532123770

Locater Strap (AYP part number)

$

$

Not available

29

Poulan 532123662

L.H. Belt Keeper (AYP part number)

$

$

Not available

30

Poulan 532123663

R.H. Belt Keeper (AYP part number)

$

$

Not available

31

Poulan 532004921

Retainer Spring (AYP part number)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 874760512

Hex Bolt 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

33

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 874760616

Hex Bolt 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532110739

Spring Washer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 873980600

Flange Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 532108218

El??c??tric Clutch (AYP part number)
(Superseded to 532142600)

$

$

Not available

41

Poulan 532121218

L.H. Engine Belt Keeper (AYP part number)

$

$

Not available
