XEL 1122AR - Poulan Pro Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

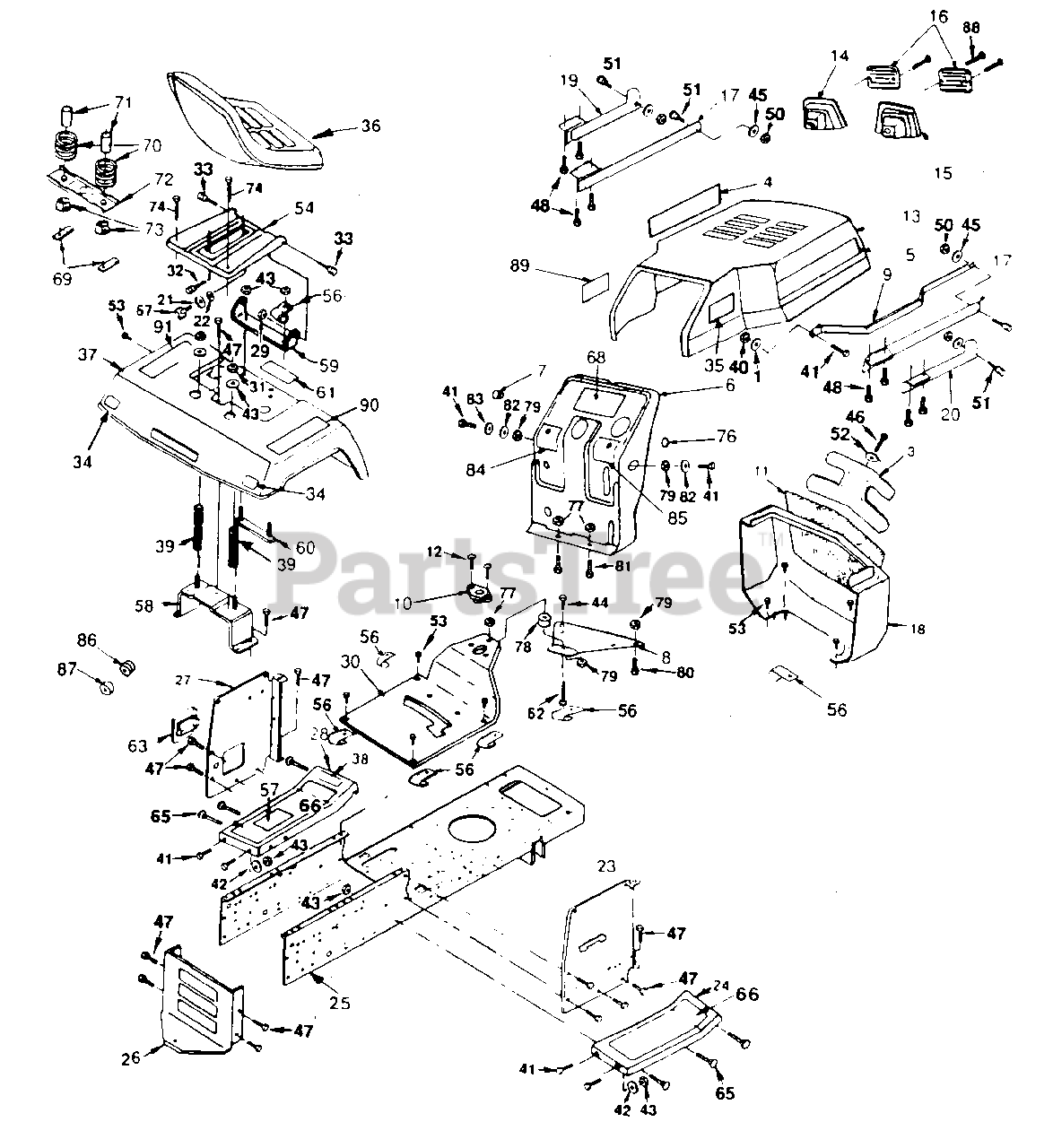

ENCLOSURES Parts Diagram

  • Title

1

Poulan 819131416

Washer (AYP part number)
(Superseded to 819131414)

$6.49

$

In Stock, Qty 5

0

2

Poulan 532125710

Decal (AYP part number)

$

$

Not available

3

Poulan 532124227

Grill Insert

$103.99

$

Usually ships in 3-10 days

0

4

Poulan 532125714

L.H. Poulan Hood Decal (AYP part number)

$

$

Not available

5

Poulan 532125715

R.H. Poulan Hood Decal (AYP part number)

$

$

Not available

6

Poulan 532122341

Dash (AYP part number)

$

$

Not available

7

Poulan 532008022

Dash Plug (AYP part number)

$

$

Not available

8

Poulan 532106965

Battery Support Plate (AYP part number)

$

$

Not available

9

Poulan 532122196

Grill Brace (AYP part number)

$

$

Not available

10

Poulan 532001554

Steering Bushing (AYP part number)
(Superseded to 532155108)

$7.49

$

In Stock, Qty 10

0

11

Poulan 532101234

Grill Screen (AYP part number)

$

$

Not available

12

Poulan 817431008

Hex Screw (AYP part number)
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 532124909

Hood (AYP part number)

$

$

Not available

14

Poulan 532124910

L.H. Bezel (AYP part number)

$

$

Not available

15

Poulan 532125069

R.H. Bezel (AYP part number)

$

$

Not available

16

Poulan 532109671

Lens (AYP part number)

$

$

Not available

17

Poulan 532124921

Rear Hinge Strap Assembly (AYP part number)

$

$

Not available

18

Poulan 532124920

Grill Assembly

$

$

Not available

19

Poulan 532124918

L.H. Hinge Strap Assembly (AYP part number)

$

$

Not available

20

Poulan 532125095

R.H. Hinge Strap Assembly (AYP part number)

$

$

Not available

21

Poulan 819171912

Washer (AYP part number)

$7.49

$

In Stock, only 2 left!

0

22

Poulan 810040800

Lock Washer 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532110828

R.H. Dash Panel (AYP part number)

$

$

Not available

24

Poulan 532125037

R.H. Footrest (AYP part number)

$

$

Not available

25

Poulan 532124355

Chassis (AYP part number)

$

$

Not available

26

Poulan 532121306

Drawbar (AYP part number)
(Superseded to 532137275)

$

$

Not available

27

Poulan 532124118

L.H. Dash Panel (AYP part number)
(Superseded to 124118X)

$

$

Not available

28

Poulan 532125041

L.H. Footrest (AYP part number)
(Superseded to 532102326)

$

$

Not available

29

Poulan 873680500

Locknut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

30

Poulan 124587014

Saddle (AYP part number)

$

$

Not available

31

Poulan 819131614

Washer (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 532121144

Shoulder Bolt (AYP part number)
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 532105529

Shoulder Bolt (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, Qty 10

0

34

Poulan 532106202

Reflector (AYP part number)

$

$

Not available

35

Poulan 532124272

R.H. HP Decal (AYP part number)

$

$

Not available

36

Poulan 532121442

Seat (AYP part number)
(Superseded to 532127514)

$

$

Not available

37

Poulan 532125077

Fender (AYP part number)

$

$

Not available

38

Poulan 532004900

Clutch/Brake Decal (AYP part number)

$

$

Not available

39

Poulan 532124181

Seat Spring (AYP part number)
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

40

Poulan 873680600

Crownlock Nut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

41

Poulan 874760612

Hex Bolt 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, Qty 19

0

42

Poulan 819131312

Washer (AYP part number)
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 873680600

Locknut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 874760616

Hex Bolt 3/8-16 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 819090816

Washer (AYP part number)

$

$

Not available

46

Poulan 817511208

Slotted Hex Screw (AYP part number)

$

$

Not available

47

Poulan 817490612

Washer Hd. Hex Screw (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

48

Poulan 817411310

Special Washer Hd. Hex Screw (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 532124549

Shoulder Bolt (AYP part number)

$

$

Not available

50

Poulan 873680400

Locknut (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

51

Poulan 532124815

Shoulder Bolt (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 532008019

Washer (AYP part number)

$

$

Not available

53

Poulan 817490608

Washer Hd. Hex Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 532121247

Seat Pan (AYP part number)
(Superseded to 532131451)

$

$

Not available

56

Poulan 532124996

Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

57

Poulan 532109199

Ground Drive V-Belt Decal (AYP part number)

$

$

Not available

58

Poulan 532105509

Fender Bracket Assembly (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

59

Poulan 532105513

Pivot Seat Bracket (AYP part number)
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

60

Poulan 532105511

Fender Strap Assembly (AYP part number)
(Superseded to 532140675)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 532106974

Caution Decal (AYP part number)

$

$

Not available

62

Poulan 874760532

Hex Bolt (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

63

Poulan 532121794

Access Cover (AYP part number)
(Superseded to 121794X)

$

$

Not available

65

Poulan 872140606

Carriage Bolt 3/8-16 x 3/4 (AYP part number)

$

$

Not available

66

Poulan 532108256

Footrest Pad (AYP part number)

$

$

Not available

67

Poulan 532120068

Seat Knob (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

68

Poulan 532123175

Dash Decal (AYP part number)

$

$

Not available

69

Poulan 532121251

Foam Strip (AYP part number)

$

$

Not available

70

Poulan 532121250

Spring (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

71

Poulan 532121249

Spacer (AYP part number)

$6.49

$

In Stock, Qty 5

0

72

Poulan 532121246

Switch Bracket (AYP part number)
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

73

Poulan 532121248

Snap Bushing (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

74

Poulan 872170410

Carriage Bolt (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

75

Poulan 532123976

Flange Locknut (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

76

Poulan 532005479

Dash Plug (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 873510500

Keps Nut (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

78

Poulan 532121236

Spacer (AYP part number)

$

$

Not available

79

Poulan 873510600

Keps Nut (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 874760620

Hex Bolt (AYP part number)

$7.49

$

In Stock, only 3 left!

0

81

Poulan 874180512

Machine Screw (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

82

Poulan 819131316

Washer (AYP part number)

$4.99

$

In Stock, Qty 9

0

83

Poulan 811050600

Ext. Tooth Lock Washer (AYP part number)
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

84

Poulan 532125772

Clutch Attachment Decal (AYP part number)

$

$

Not available

85

Poulan 532125771

Lift Attachment Decal (AYP part number)

$

$

Not available

86

Poulan 532110436

Split Grommet (AYP part number)
(Superseded to 532009151)

$

$

Not available

87

Poulan 532009151

Grommet (AYP part number)

$

$

Not available

88

Poulan 817990808

Pan Head Screw (AYP part number)

$

$

Not available

89

Poulan 532124271

L.H. HP Decal (AYP part number)

$

$

Not available

90

Poulan 532125712

R.H. Fender Decal (AYP part number)

$

$

Not available

91

Poulan 532125711

L.H. Fender Decal (AYP part number)

$

$

Not available

92

Poulan 817490616

Hex Screw (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0
