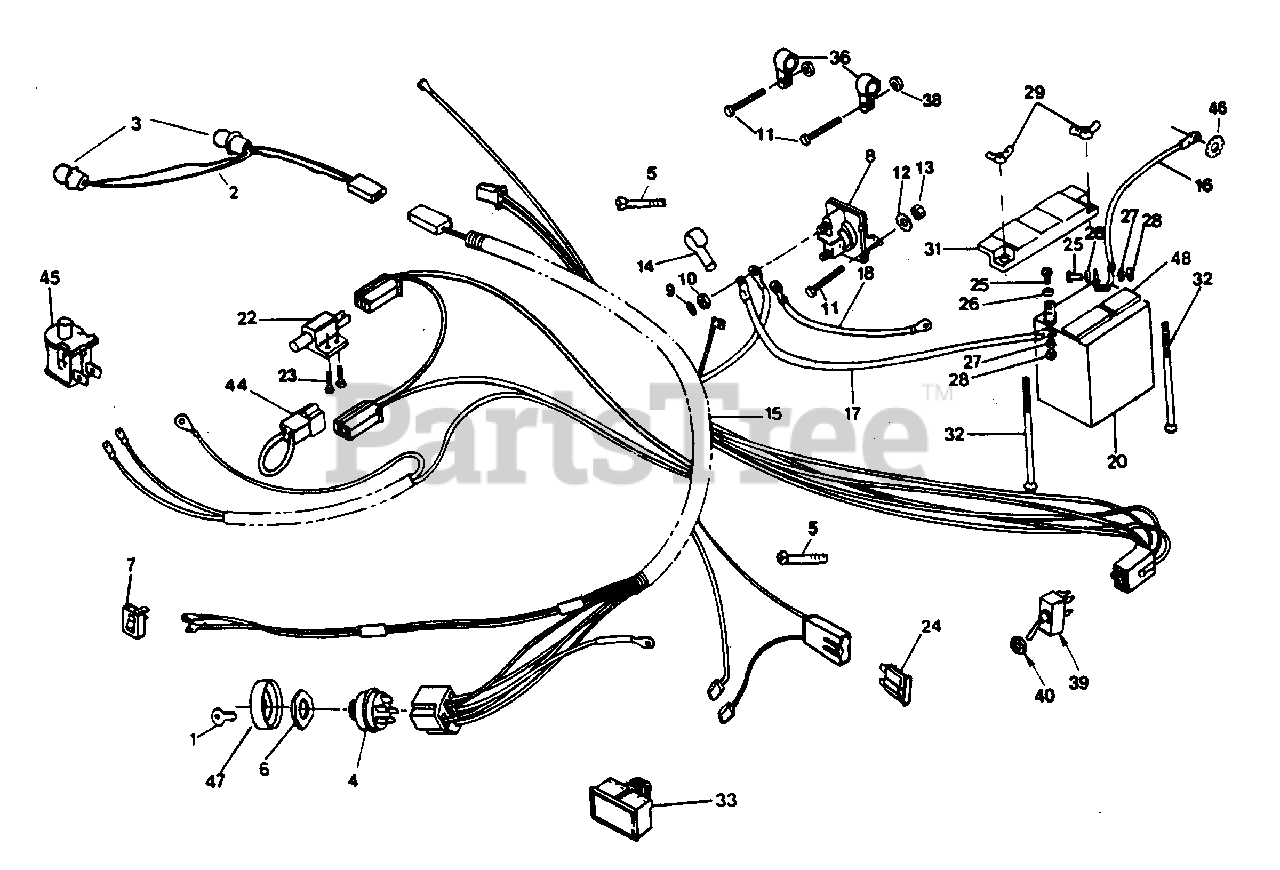

XEY 1142AR - Poulan Pro Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532122147

Set Key (AYP part number)

$

$

Not available

2

Poulan 532110859

Light Socket Harness (AYP part number)

$

$

Not available

3

Poulan 532004152

Light Bulb (AYP part number)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532125104

Ignition Switch (AYP part number)
(Superseded to 532365402)

$31.99

$

In Stock, only 4 left!

0

5

Poulan 532124756

Cable Tie (AYP part number)
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 532109788

Hex Nut (AYP part number)
(Superseded to 532124211)

$4.99

$

In Stock, only 1 left!

0

7

Poulan 532110712

Light Switch (AYP part number)

$8.99

$

In Stock, Qty 11

0

8

Poulan 532109801

Solenoid (AYP part number)

$

$

Not available

9

Poulan 810090400

Lock Washer (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

10

Poulan 873350400

Jam Nut 1/4-20 (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

11

Poulan 874780408

Hex Bolt 1/4-20 x 1/2 Gr. 5 (AYP part number)
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0

12

Poulan 811050400

Lock Washer, Ext. Tooth (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

13

Poulan 873510400

Keps Nut (AYP part number)
(Superseded to 873640400)

$

$

Not available

14

Poulan 532124783

Terminal Cover (AYP part number)
(Superseded to 532131563)

$8.99

$

Usually ships in 3-10 days

0

15

Poulan 532124071

Ignition Harness

$

$

Not available

16

Poulan 532124773

Battery Cable (AYP part number)
(Superseded to 532420700)

$8.99

$

In Stock, only 1 left!

0

17

Poulan 532108423

Battery Cable (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 532124770

Ground Cable (AYP part number)
(Superseded to 532185464)

$11.99

$

Usually ships in 3-10 days

0

20

Poulan 532121537

Battery Pack (AYP part number)
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

22

Poulan 532104445

Interlock Switch (AYP part number)

$17.99

$

In Stock, only 1 left!

0

23

Poulan 817021008

Tap Washer Hex Screw (AYP part number)

$4.99

$

In Stock, Qty 20+

0

24

Poulan 532108824

30 Amp Fuse (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 874760412

Hex Bolt 1/4-20 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 5

0

26

Poulan 819091016

Washer 9/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 12

0

27

Poulan 810040400

Lock Washer 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

28

Poulan 873220400

Hex Nut 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

29

Poulan 532123198

Wing Nut 1/4-20 (AYP part number)
(Superseded to 532146525)

$

$

Not available

31

Poulan 532102476

Terminal Guard (AYP part number)
(Superseded to 532150109)

$

$

Not available

32

Poulan 872240460

Sq. Neck, Round Hd. Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 532122822

Ammeter (AYP part number)

$18.99

$

In Stock, only 1 left!

0

36

Poulan 532124995

Insulation Clip (AYP part number)

$

$

Not available

38

Poulan 873680400

Crownlock Nut (AYP part number)
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

39

Poulan 532004021

P.T.O. Switch (AYP part number)

$

$

Not available

40

Poulan 532004022

Hex Nut (AYP part number)

$

$

Not available

44

Poulan 532102501

Wire Loop (AYP part number)

$

$

Not available

45

Poulan 532121305

Plunger Switch (AYP part number)
(Superseded to 532421062)

$10.99

$

In Stock, Qty 18

0

46

Poulan 811050600

Ext. Tooth Lock Washer (AYP part number)
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

47

Poulan 532109787

Ignition Bezel (AYP part number)
(Superseded to 532147626)

$7.49

$

Usually ships in 3-10 days

0

48

Poulan 532121264

Battery Caps (AYP part number)

$

$

Not available

Poulan 532101539

Tractor Instruction Sheet English 15 Degrees Slope (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532124281

English Owner's Manual (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532124282

Parts List Manual (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532124279

Kohler Owner's Manual

Note: Not Shown.

$

$

Not available
