XEY 1142AR - Poulan Pro Lawn Tractor LIFT ADJUSTMENT Parts Diagram

Lawn Tractor

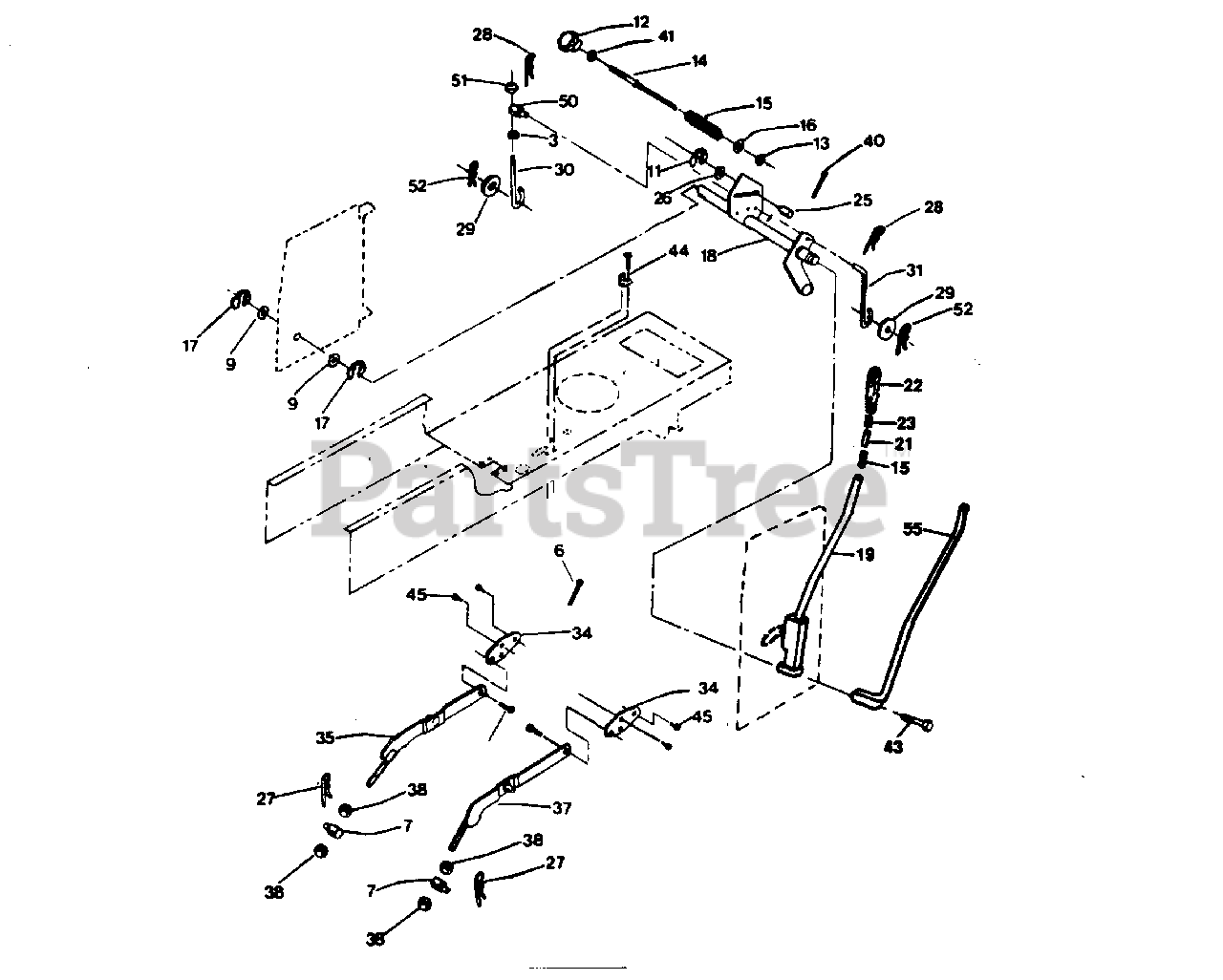

LIFT ADJUSTMENT Parts Diagram

  • Title

1

Poulan 873710700

Jam Locknut (AYP part number)
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532106308

Lower Lift Trunnion (AYP part number)
(Superseded to 532130171)

$

$

Not available

9

Poulan 819292016

Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 532106444

Bellcrank Bracket (AYP part number)

$

$

Not available

11

Poulan 812000037

Klip Ring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 532121891

Lift Adjust Handle (AYP part number)
(Superseded to 121891X)

$

$

Not available

13

Poulan 532110807

Special Nut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 532110729

Lift Adjust Rod (AYP part number)

$

$

Not available

15

Poulan 532124874

Spring (AYP part number)
(Superseded to 532002876)

$7.49

$

In Stock, only 1 left!

0

16

Poulan 819131016

Washer (AYP part number)

$6.49

$

In Stock, only 2 left!

0

17

Poulan 812000022

E-Ring (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

18

Poulan 532121000

Lift Shaft (AYP part number)
(Superseded to 121000X)

$48.99

$

Usually ships in 3-10 days

0

19

Poulan 532121002

Lift Lever (AYP part number)
(Superseded to 532123096)

Note: (Includes Key No. 55.)

$

$

Not available

20

Poulan 873680600

Crownlock Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

21

Poulan 532122364

Lever Plunger (AYP part number)
(Superseded to 532125925)

$

$

Not available

22

Poulan 532109413

Handle Grip (AYP part number)
(Superseded to 532125631)

$6.99

$

In Stock, only 2 left!

0

23

Poulan 532124526

Plunger Button (AYP part number)
(Superseded to 532125925)

$

$

Not available

25

Poulan 532110810

Stop Depth Trunnion

$21.99

$

Usually ships in 3-10 days

0

26

Poulan 819151216

Washer (AYP part number)
(Superseded to 19151216)

$

$

Not available

27

Poulan 532009135

Spring Retainer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 532124670

Spring Retainer (AYP part number)
(Superseded to 532085902)

$

$

Not available

29

Poulan 819171516

Washer (AYP part number)
(Superseded to 734117801)

$

$

Not available

30

Poulan 532110448

Adjust Link Lift (AYP part number)

$7.99

$

Usually ships in 3-10 days

0

31

Poulan 532110029

Lift Link (AYP part number)

$

$

Not available

32

Poulan 872140606

Carriage Bolt 3/8-16 x 3/4 (AYP part number)

$

$

Not available

34

Poulan 532105864

Suspension Bracket (AYP part number)

$

$

Not available

35

Poulan 532121599

L.H. Arm Suspension (AYP part number)

$

$

Not available

37

Poulan 532121598

R.H. Arm Suspension (AYP part number)

$

$

Not available

38

Poulan 873220800

Fin. Hex Nut (AYP part number)
(Superseded to 873350800)

$

$

Not available

40

Poulan 876020308

Cotter Pin (AYP part number)
(Superseded to 532003145)

$

$

Not available

41

Poulan 873350600

Jam Hex Nut (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

43

Poulan 874780624

Hex Bolt (AYP part number)
(Superseded to 874930624)

$

$

Not available

44

Poulan 532108236

Switch Bracket (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

45

Poulan 817021008

Tap Hex Screw (AYP part number)

$4.99

$

In Stock, Qty 20+

0

50

Poulan 532110447

Lift Trunnion (AYP part number)
(Superseded to 532132793)

$

$

Not available

51

Poulan 873360700

Jam Crownlock Nut (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

52

Poulan 532004921

Retainer Spring (AYP part number)

$6.49

$

In Stock, only 2 left!

0

53

Poulan 532110739

Spring Washer (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 873980600

Flange Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 532121006

Lift Lever Rod Assembly (AYP part number)

$34.99

$

Usually ships in 3-10 days

0
