XG1000 (0058022) - Generac Portable Generator (SN: 6695173 - 9980684) (2015) Engine Block GTH530 XG Port (0H1732) Parts Diagram

Portable Generator

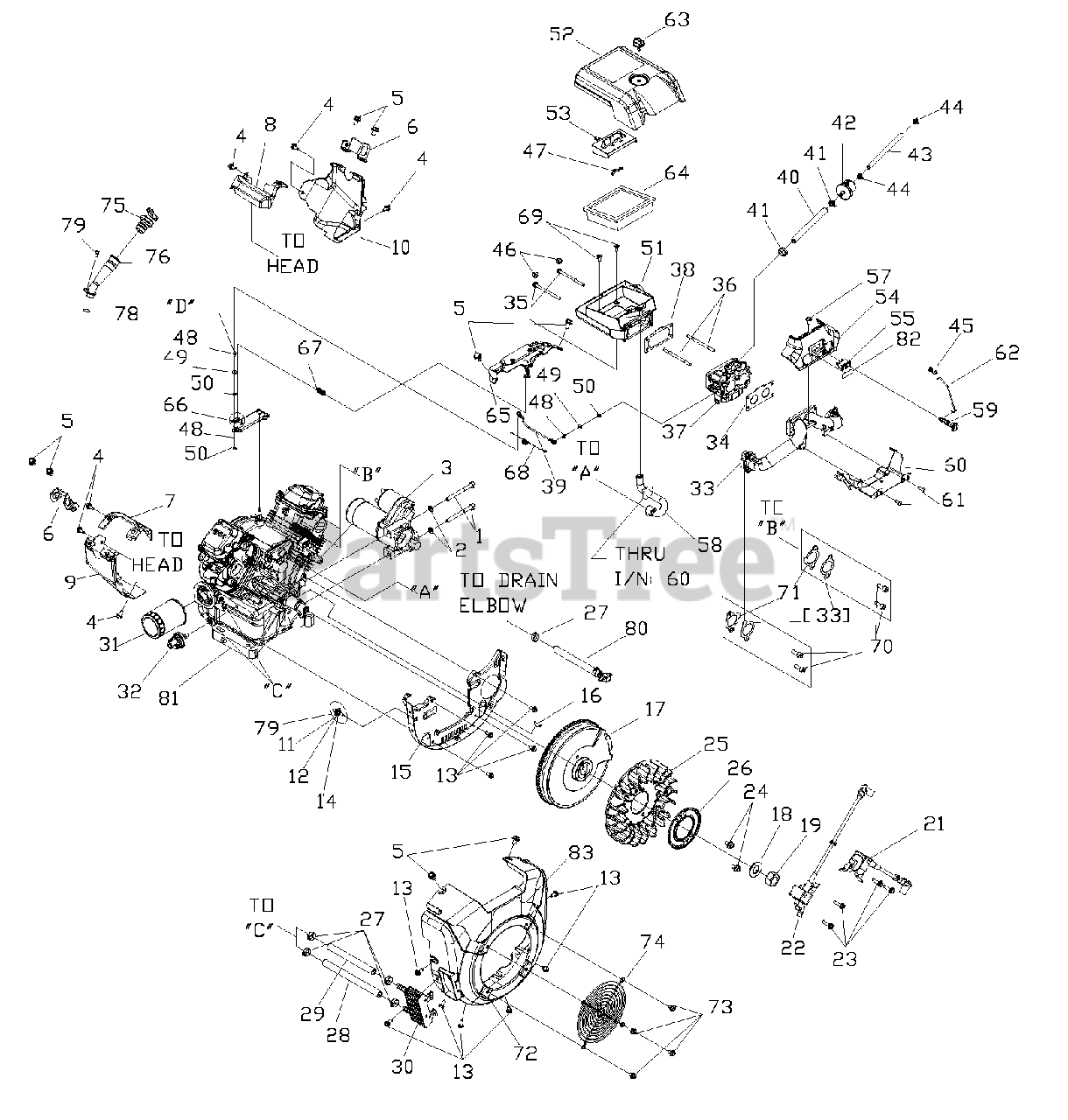

Engine Block GTH530 XG Port (0H1732) Parts Diagram

  • Title

1

Generac 061906

SCREW HHC M8-1.25 X 85
(Superseded to G061906)

$1.49

$

Usually ships in 2-12 days

0

2

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

3

Generac 0E9323

STARTER MOTOR GEAR REDUCED 1KW

Note: FOR SOLENOID ORDER 0G3351

$

$

Not available

4

Generac 0G0919

SCREW HHFCS M6-1 X 12

$0.99

$

Usually ships in 2-12 days

0

5

Generac 0E9507

SCREW HHFC M8-1.25 X 14

$1.49

$

Usually ships in 2-12 days

0

6

Generac 0E9362

LIFTING HOOK GT530

$5.49

$

Usually ships in 2-12 days

0

7

0G7611

WRAPER INNER CYL #2

$

$

Not available

8

0G7610

WRAPPER INNER CYL #1

$

$

Not available

9

0G7609

WRAPPER OUTER CYL #2

$

$

Not available

10

0G7608

WRAPPER OUTER CYL #1

$

$

Not available

11

Generac 0E4998

SCREW CONNECTOR

$3.99

$

Usually ships in 2-12 days

0

12

Generac 0G5762

GROUND POST MOUNT BLOCK

$0.99

$

Usually ships in 2-12 days

0

13

Generac 0G1705

SCREW HHFC M6-1.0 X 8

$0.99

$

Usually ships in 2-12 days

0

14

Generac 051716

NUT HEX M5 X 0.8
(Superseded to G051716)

$0.99

$

Usually ships in 2-12 days

0

15

Generac 0G4985

BACKPLATE GT530

$25.99

$

Usually ships in 2-12 days

0

16

Generac 082774

KEY WOODRUFF 4 X 19D
(Superseded to G082774)

$12.99

$

In Stock, Qty 11

0

17

0E9525A

ASSY FLYWHEEL AND RING GEAR 29 DEG

$

$

Not available

18

Generac 067198N

WASHER BEL V-20 X 2.2

$4.99

$

Usually ships in 2-12 days

0

19

Generac 067890

HEX NUT METRIC

$

$

Not available

20

Generac 0F1177

ASSY GROUNDING WIRE (NOT SHOWN)
(Superseded to 0E7209)

$72.99

$

Usually ships in 2-12 days

0

21

Generac 0G3251A

ASSY IGN COIL W/DIODE GTH530 CYL 1

$

$

Not available

22

Generac 0G3251B

ASSY IGN COIL W/DIODE GTH530 CYL 2
(Superseded to 0G3251TB)

$66.99

$

Usually ships in 2-12 days

0

23

0G6432

SCREW HHC M6-1.25 X 12

$

$

Not available

24

Generac 0H6213

SCREW HHFCS M8-1.25 X 12

$

$

Not available

25

Generac 0E9486A

FAN FLYWHEEL

$13.99

$

Usually ships in 2-12 days

0

26

Generac 0C3032

PLATE FAN GV-990

$7.99

$

Usually ships in 2-12 days

0

27

Generac 0G3662B

CLAMP HOSE OETIKER STEPLESS 18.5

$5.99

$

In Stock, Qty 7

0

28

Generac 0F0452E

HOSE 3/8" PUSH ON (191 MM)

$11.99

$

Usually ships in 2-12 days

0

29

Generac 0F0452C

HOSE 3/8" PUSH ON (152 MM)

$4.99

$

Usually ships in 2-12 days

0

30

Generac 0E9406

OIL COOLER GT530

$67.99

$

Usually ships in 2-12 days

0

31

Generac 070185E

FILTER OIL 90MM NO BRAND
(Superseded to 070185ES)

Note: ORDER 070185ES

$20.99

$

In Stock, Qty 14

0

32

Generac 0H1315

SWITCH LOW OIL PRESSURE

$

$

Not available

33

Generac 0E9376

MANIFOLD INTAKE GT530

$97.99

$

Usually ships in 2-12 days

0

34

Generac 0E9471

GASKET INTAKE MANIFOLD TO CARBURETOR

$1.99

$

In Stock, Qty 14

0

35

Generac 078643B

BOLT CARB MOUNT

$2.99

$

In Stock, only 4 left!

0

36

096290C

STUD M6-1 X 90 DRI-LOC

$

$

Not available

37

Generac 0E9383F

CARBURETOR

$302.99

$

In Stock, only 1 left!

0

38

Generac 0E9472

GASKET AIRBOX TO CARBURETOR

$6.49

$

In Stock, only 3 left!

0

39

Generac 0E9421

ASSY GOVERNOR ROD

$7.49

$

In Stock, Qty 7

0

40

0F9176D

HOSE 1/4" GREENBAR SAE30R7 6"

$

$

Not available

41

Generac 048031N

CLAMP HOSE BAND 0.530

$1.99

$

In Stock, only 1 left!

0

42

Generac 0D6313

FILTER, FUEL

$5.99

$

In Stock, Qty 20+

0

43

Generac 0H3455E

FUEL HOSE 160MM LONG

$5.49

$

In Stock, only 2 left!

0

44

Generac 048031G

CLAMP HOSE BAND 0.409

$1.49

$

In Stock, Qty 20+

0

45

Generac 0D1366

BUSHING GOVERNOR ROD

$4.49

$

In Stock, Qty 20+

0

46

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$2.49

$

In Stock, only 1 left!

0

47

Generac 0D5125

SPRING SUMMER / WINTER VALVE

$2.99

$

In Stock, only 4 left!

0

48

Generac 0D6342A

BALL STUD 8MM

$3.49

$

In Stock, only 1 left!

0

49

Generac 0D6098

SPACER ROD THROTTLE

$1.99

$

In Stock, Qty 5

0

50

Generac 0D9784

NUT HEX LOCK M3-0.5 NY INSERT

$9.49

$

In Stock, only 2 left!

0

51

Generac 0E9374A

BASE AIRBOX GTH530

$23.99

$

In Stock, only 3 left!

0

52

Generac 0E9375A

COVER AIRBOX GTH530

$30.99

$

In Stock, only 3 left!

0

53

Generac 0E9385

VALVE SUMMER / WINTER

$3.49

$

In Stock, only 2 left!

0

54

Generac 0E9386C

COVER FRONT GTH530 CONSTANT SPEED

$6.99

$

In Stock, only 1 left!

0

55

Generac 0G9549

SWITCH MOMENTARY (OFF) - ON

$19.99

$

In Stock, only 1 left!

0

56

Generac 0H5904

HARN CTRL PNL CONNECT XG10 (NOT SHOWN)

$54.99

$

Usually ships in 2-12 days

0

57

Generac 0D6147

SCREW HHFCS M6-1.0 X 10

$0.99

$

Usually ships in 2-12 days

0

58

0E9393

BREATHER HOSE GTH530

$

$

Not available

59

Generac 0E9449

KNOB CHOKE GTH530

$2.99

$

In Stock, Qty 20+

0

60

Generac 0E9450A

BAFFLE CENTER GTH530 PORTABLE

$75.99

$

Usually ships in 2-12 days

0

61

Generac 0E1644

SCREW BHSC M6-1.0 X 12

$1.49

$

Usually ships in 2-12 days

0

62

Generac 0E9477

ROD MANUAL CHOKE GTH530

$3.49

$

In Stock, only 2 left!

0

63

Generac 0E9511B

KNOB AIRBOX QUARTER-TURN

$7.49

$

In Stock, only 2 left!

0

64

Generac 073111

AIR FILTER ELEMENT
(Superseded to 073111S)

Note: ORDER PART NUMBER 073111S

$22.99

$

In Stock, Qty 8

0

65

Generac 0H1112

ASSY SPEED CONTROL

$16.99

$

Usually ships in 2-12 days

0

66

0E9503

ASSY GOVERNOR LEVER GT530

$

$

Not available

67

Generac 0H7283

SPRING GOVERNOR GTH530

$7.49

$

Usually ships in 2-12 days

0

68

Generac 0G8234

SPRING ANTI-LASH GTH530

$7.49

$

In Stock, only 1 left!

0

69

Generac 0E9509

SCREW PFHM M6-1.0 X 12

$0.99

$

In Stock, Qty 11

0

70

Generac 040976

SCREW SHC M8-1.25 X 20
(Superseded to G040976)

Note: ON THE FOLLOWING MODELS USE 049821 000940-2, 000941-2 000941-3

$1.99

$

Usually ships in 2-12 days

0

71

Generac 0E9319

GASKET INTAKE

$1.99

$

In Stock, only 2 left!

0

72

Generac 0E9336F

BLOWER HOUSING

$73.99

$

Usually ships in 2-12 days

0

73

Generac 0D6147

SCREW HHFCS M6-1.0 X 10

$0.99

$

Usually ships in 2-12 days

0

74

Generac 0C9997

GUARD FAN

$8.49

$

Usually ships in 2-12 days

0

75

Generac 0E7887

ASSY FLAT DIPSTICK

Note: OBSOLETE

$

$

Not available

76

Generac 0H1532

ASSY OIL CHECK & FILL

$28.99

$

Usually ships in 2-12 days

0

77

066482

SCREW HHSW M5-0.8 X 10

$

$

Not available

78

Generac 090072

O-RING 9/16 X 3/4 X 3/32
(Superseded to G090072)

$4.99

$

Usually ships in 2-12 days

0

79

Generac 0E4997

ASSY GROUND WIRE CONNECTOR
(Superseded to 0E49970ESV)

Note: MAKE SURE CUSTOMER IS NOT LOOKING FOR THE 0C3016A BACKING PLATE IF YOU REALLY NEED THE GROUND WIRE CONNECTOR ORDER P/N 0E49970ESV

$30.99

$

Usually ships in 2-12 days

0

80

0G4403B

ASSY OIL DRAIN HOSE

$

$

Not available

81

0G5015001E

ASSY BLOCK GTH530 GAS PORT

$

$

Not available

82

Generac 0H1705

DECAL IGNITION

$4.49

$

Usually ships in 2-12 days

0

83

Generac 0H5820

DECAL ENGINE XG 10KW

$4.49

$

Usually ships in 2-12 days

0
