XG8000 (0058000) - Generac Portable Generator (SN: 5573712 - 6087570) (2010) Engine GH410 XG7 PS (0H4000) Parts Diagram

Portable Generator

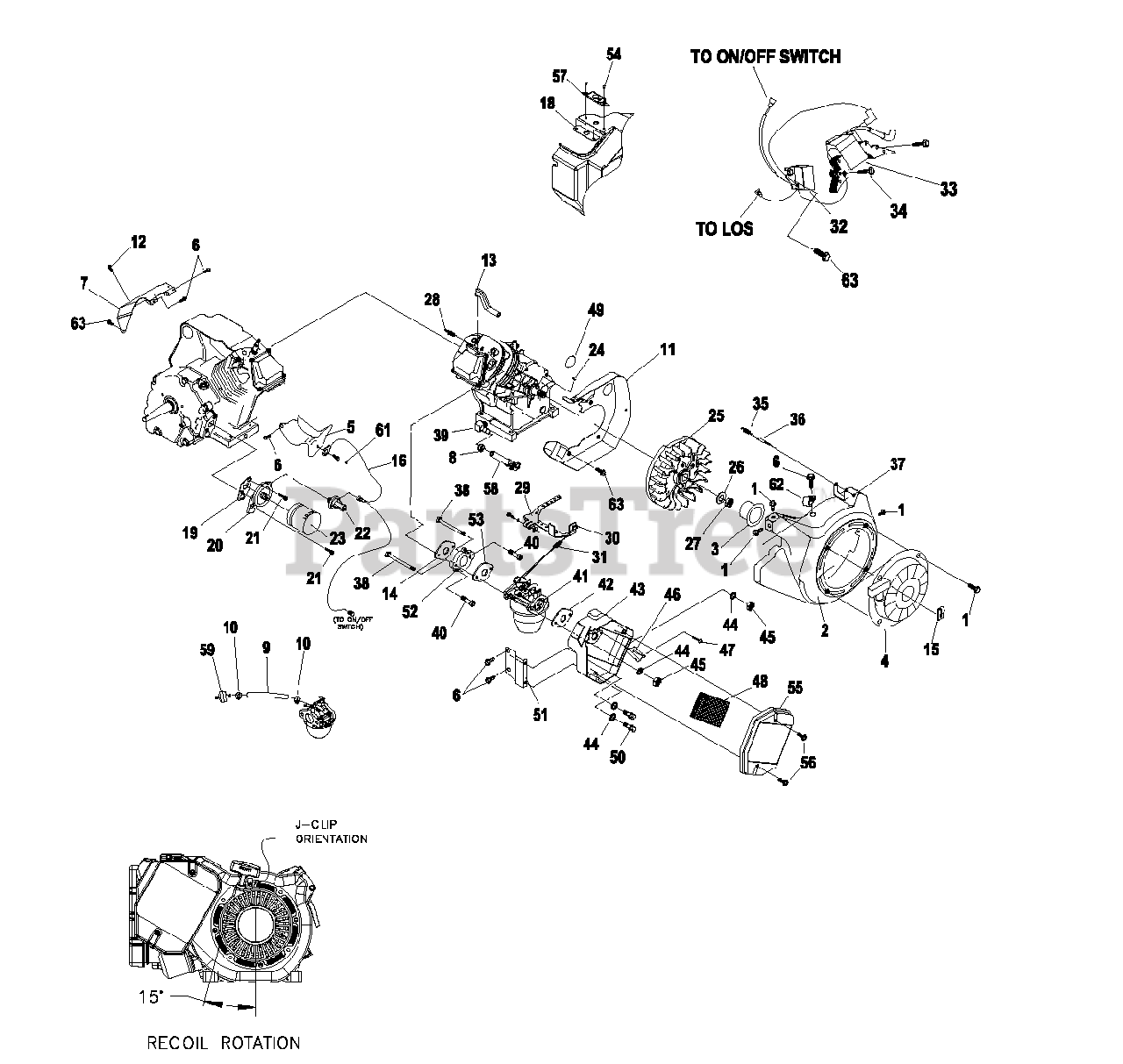

Engine GH410 XG7 PS (0H4000) Parts Diagram

  • Title

1

Generac 0C1069

SCREW HHTT M6-1.0 X 8

Note: USE 0E5139 ON MODELS 4858-0, 4629-2, 4806-0 4857-0, 4861-0, 4862-0

$0.99

$

Usually ships in 2-12 days

0

2

Generac 0D2922

ASSEMBLY, BLOWER HOUSING

$64.99

$

Usually ships in 2-12 days

0

3

Generac 0E9521

PULLEY STARTER LARGE FRAME

Note: FOR COMPLETE ASSEMBLY USE 0E94830SRV INCLUDES RECOIL AND CUP (PULLEY)

$23.99

$

In Stock, only 2 left!

0

4

Generac 0E9483

RECOIL STARTER LARGE FRAME
(Superseded to 0E94830SRV)

Note: FOR COMPLETE ASSEMBLY USE 0E94830SRV INCLUDES RECOIL AND CUP (PULLEY)

$122.99

$

Usually ships in 2-12 days

0

5

Generac 088434

WRAPPER BOTTOM

$

$

Not available

6

Generac 045756

SCREW HHTT M6-1.0 X 10
(Superseded to G045756)

$0.99

$

In Stock, Qty 20+

0

7

Generac 0C4176A

WRAPPER TOP

$19.99

$

In Stock, only 1 left!

0

8

Generac 0G3662B

CLAMP HOSE OETIKER STEPLESS 18.5

$4.49

$

In Stock, Qty 13

0

9

Generac 0H3455A

FUEL HOSE 250MM LONG

$7.99

$

Usually ships in 2-12 days

0

10

Generac 048031G

CLAMP HOSE BAND .41

$0.99

$

In Stock, Qty 5

0

11

Generac 073116A

BACKPLATE

$32.99

$

Usually ships in 2-12 days

0

12

Generac 0G7967

SCREW HHTT 5/16-18 X 1/2"

$1.49

$

Usually ships in 2-12 days

0

13

Generac 0D7199A

HOSE BREATHER GH410

$25.99

$

Usually ships in 2-12 days

0

14

Generac 091039

GASKET INTAKE ADAPTOR
(Superseded to G091039)

$3.49

$

In Stock, only 1 left!

0

15

Generac 082121C

CLIP-J VINYL COATED

$1.99

$

Usually ships in 2-12 days

0

16

0H5006

WIRE HARNESS

$

$

Not available

18

Generac 0H0866

BACK PLATE SUPPORT

$1.49

$

Usually ships in 2-12 days

0

19

Generac 086999

GASKET OIL FILTER ADAPTOR
(Superseded to G086999)

$11.99

$

In Stock, only 1 left!

0

20

Generac 0D5667A

ADAPTOR OIL FILTER

$15.99

$

Usually ships in 2-12 days

0

21

Generac 049821

SCREW SHC M8-1.25 X 30
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

22

Generac 0H1315

SWITCH OIL PRESSURE 5PSI

$

$

Not available

23

Generac 070185D

FILTER OIL BLACK 75MM LONG
(Superseded to 070185BS)

Note: ORDER 070185DS

$59.99

$

In Stock, only 2 left!

0

24

Generac 082774

KEY WOODRUFF 4 X 19D
(Superseded to G082774)

$9.49

$

Usually ships in 2-12 days

0

25

0C3347C

FLYWHEEL LARGE FRAME 27 DEG

$

$

Not available

26

Generac 067198N

WASHER BEL V-20 X 2.2

$4.99

$

In Stock, only 1 left!

0

27

Generac 067890

NUT HEX M20-1.5

$

$

Not available

28

Generac 0E7585

SPARKPLUG, CHAMPION RC14YC 0.030"

$4.49

$

In Stock, Qty 14

0

29

Generac 072734

ASSEMBLY GOVERNOR LEVER
(Superseded to G072734)

$14.99

$

Usually ships in 2-12 days

0

30

Generac 072735

ROD GOVERNOR CONTROL
(Superseded to G072735)

$8.49

$

Usually ships in 2-12 days

0

31

Generac 0C3978

SPRING ANTI-LASH

$4.49

$

In Stock, only 1 left!

0

32

Generac 087221G

OIL PRESSURE SHUTDOWN MODULE

$33.99

$

Usually ships in 2-12 days

0

33

Generac 0G9241

ASSEMBLY IGNITION ADV NO DIODE
(Superseded to 0G9241T)

Note: NO LONGER AVAILABLE ORDER 0G9241T

$45.99

$

Usually ships in 2-12 days

0

34

Generac 080318

SCREW HHFC M6-1.0 X 25
(Superseded to G080318)

$7.99

$

Usually ships in 2-12 days

0

35

Generac 073100

SPRING GOVERNOR
(Superseded to G073100)

Note: IF HUNTING IS PRESENT ON A 7KW HSB UNIT REPLACE 073100 WITH ONE EACH OF THE FOLLOWING 0F3800,022129,022145, 042907,0C3980,0D3751, 0F3855,0F3921 THIS APPLIES TO MODELS 4389-3, 4673-2, 4679-3, AND 4758-2, BEFORE SERIAL NUMBER 3999625

$2.49

$

In Stock, only 1 left!

0

36

Generac 083502

BOLT GOVERNOR ADJUSTMENT M5
(Superseded to G083502)

$3.49

$

Usually ships in 2-12 days

0

37

Generac 082025

NUT HEX LOCK M5-0.8 NYLON INSERT
(Superseded to G082025)

$0.99

$

In Stock, Qty 6

0

38

Generac 081647

BOLT CARBURETOR MOUNTING
(Superseded to G081647)

$2.49

$

In Stock, only 2 left!

0

39

Generac 043790A

BARBED ELBOW 90 DEG 3/8" NPT X 3/8"

$28.99

$

Usually ships in 2-12 days

0

40

Generac 0H8227

FLANGED HEAD SCREW SHC M6-1.0 X 20

$0.99

$

In Stock, Qty 9

0

41

Generac 0G9594

CARBURETOR ASSEMBLY

Note: ORDER P/N 0G95940SRV.

$

$

Currently unavailable

42

Generac 090970

GASKET AIR CLEANER
(Superseded to G090970)

$7.99

$

In Stock, only 1 left!

0

43

Generac 0G5630D

BASE AIRCLEANER 410 HI FLOW

$47.99

$

In Stock, only 1 left!

0

44

Generac 049811

WASHER FLAT M6
(Superseded to G049811)

$0.99

$

In Stock, Qty 10

0

45

Generac 0B2236

NUT HEX LOCK M6-1.0 W/LOCK WASHER

$0.99

$

In Stock, only 3 left!

0

46

Generac 091204

PLATE SPITBACK
(Superseded to G091204)

$2.49

$

In Stock, only 3 left!

0

47

Generac 059635

SCREW PLASTITE #8 X .37 LONG
(Superseded to G059635)

$14.99

$

In Stock, Qty 10

0

48

Generac 073111

ELEMENT AIR FILTER
(Superseded to 073111S)

Note: ORDER PART NUMBER 073111S

$20.99

$

In Stock, only 1 left!

0

49

Generac 077704E

PLUG PLASTIC 1.875

$

$

Not available

50

Generac 079246

SCREW HHC M6-1.0 X 16 W/LOCK WASHER
(Superseded to G079246)

$16.99

$

In Stock, Qty 10

0

51

Generac 090827

BRACKET AIR CLEANER
(Superseded to G090827)

$4.49

$

In Stock, only 1 left!

0

52

Generac 091028

ADAPTOR "K"
(Superseded to G091028)

$17.99

$

In Stock, only 1 left!

0

53

Generac 089228

GASKET CARBURETOR / MANIFOLD
(Superseded to G089228)

$4.99

$

In Stock, only 1 left!

0

54

Generac 0G9860

RIVOT 1/8"

$0.99

$

In Stock, only 1 left!

0

55

Generac 073104B

COVER AIR CLEANER

$29.99

$

In Stock, only 1 left!

0

56

Generac 078609

BOLT AIR CLEANER COVER
(Superseded to G078609)

$0.99

$

Usually ships in 2-12 days

0

57

Generac 0G9688

BRACKET CHOKE CABLE

$1.99

$

In Stock, only 1 left!

0

58

Generac 0H8131B

ASSY OIL DRAIN 6"

Note: CUSTOMER SHOULD ORDER PART NUMBER 0H8131BSRV.

$

$

Currently unavailable

59

Generac 0D6313

FUEL FILTER

$5.49

$

In Stock, only 2 left!

0

61

Generac 022717B

GROMMET

$2.49

$

Usually ships in 2-12 days

0

62

Generac 0E3200

C-CLIP STL/VINLY .437 X .281

$2.49

$

Usually ships in 2-12 days

0

63

Generac 0E1552

SCREW HHFC M6-1.0 X 12

Note: ORDER 0D6147 ON MODELS 4806,4857 AND 4858-0 USE 0C8563

$0.99

$

Usually ships in 2-12 days

0
