XL 98 C (UT-05015-B) - Homelite 12" Multi Purpose Saw Clutch And Blade Arm Parts Diagram

12" Multi Purpose Saw

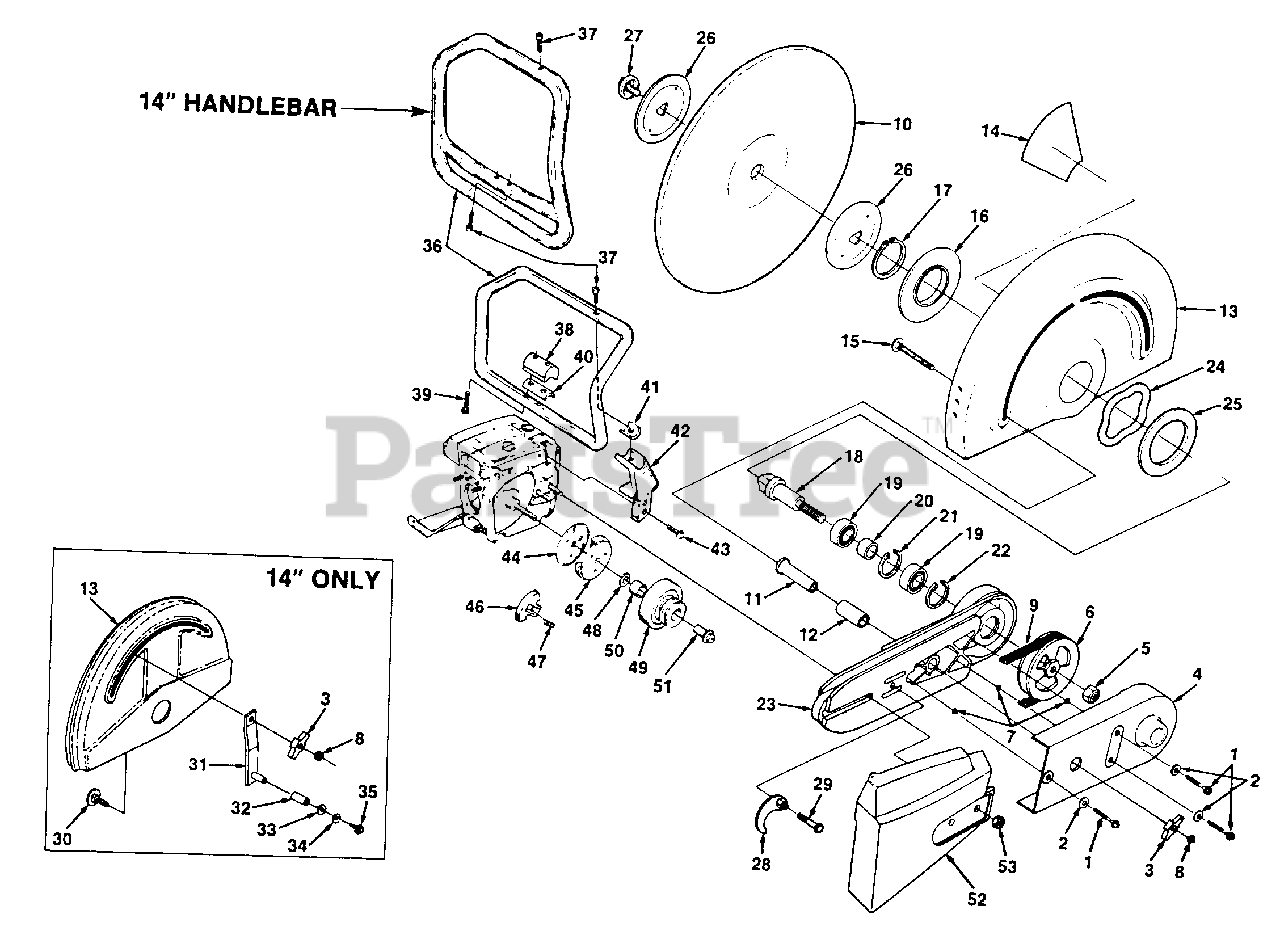

Clutch And Blade Arm Parts Diagram

  • Title

1

Homelite 94143

SCREW-Slotted (1/4-20 x 1 1/2)

$

$

Not available

2

Homelite 84026

WASHER-Flat 1/4

$

$

Not available

3

Homelite JA339550

KNOB-Handle

Note: (XL98C-14")

$

$

Not available

4

Homelite 43966B

COVER-Arm
(Superseded to UP08570)

$

$

Not available

5

Homelite 81245

NUT-Lock hex 1/2-13

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 439981A

PULLEY-Driven

$

$

Currently unavailable

7

Homelite 46462

"O" RING

$

$

Not available

8

Homelite JA443106

NUT-Hex 5/16-18
(Superseded to 81018)

Note: (XL98C-14")

$

$

Not available

9

Homelite 46068

BELT-"V" Drive
(Superseded to UP06392)

$

$

Not available

10

Homelite 64596BS

WHEEL-Resinoid
(Superseded to 64596C)

Note: (XL98C-12")

$

$

Not available

Homelite 49559

WHEEL-Resinoid

Note: (XL98C-14")

$26.99

$

Usually ships in 3-7 days

0

11

Homelite 46456B

SPACER-Guard adjusting

Note: (XL98C-12") (XL98C-12")

$

$

Not available

12

Homelite 46455

TUBING-Rubber

Note: (XL98C-12")

$

$

Not available

13

Homelite A434621A

GUARD-Wheel

Note: (XL98C-12")

$

$

Currently unavailable

Homelite A-49580

GUARD-Wheel

Note: (XL98C-14")

$

$

Currently unavailable

14

Homelite 48922

LABEL-Caution
(Superseded to 48922A)

$

$

Not available

15

Homelite 82534

BOLT-Step 5/16-18 x 3 1/2

Note: (XL98C-12") (XL98C-12")

$

$

Not available

16

Homelite 46000

WASHER-Mounting

Note: (XL98C-12")

$

$

Not available

Homelite 460001

WASHER-Mounting

Note: (XL98C-14")

$

$

Not available

17

Homelite 46065

RING

$

$

Not available

18

Homelite 46079A

SHAFT-Wheel
(Superseded to 49710)

$

$

Not available

19

Homelite 63107S

BEARING-Ball
(Superseded to UP06440)

$

$

Not available

20

Homelite 46067

SPACER-Bearing

$

$

Not available

21

Homelite 47207

RING-Retaining

$

$

Not available

22

Homelite 31746

RING-Retaining
(Superseded to UP06391)

$

$

Not available

23

Homelite A-49558

ARM-Wheel

Note: Includes Ref. #24 and 25.

$

$

Currently unavailable

24

Homelite 47388

SPRING-Wave

$

$

Not available

25

Homelite 47387

SHIM

$

$

Not available

26

Homelite 439961A

FLANGE-Wheel
(Superseded to 43996A)

$

$

Not available

27

Homelite A48783A

KIT-Screw, Washer & Retaining

$

$

Not available

28

Homelite A-49194

CAM & ADJUSTER

$

$

Not available

29

Homelite 80087

SCREW-Hex hd. 5/16-18 x 1 1/2

$

$

Not available

30

Homelite 82519A

BOLT-Step
(Superseded to UP06533)

Note: (XL98C-14") (XL98C-14")

$

$

Not available

31

Homelite A-49789

ARM-Adjusting

Note: (XL98C-14") (XL98C-14")

$

$

Currently unavailable

32

Homelite 49553

TUBING-Rubber
(Superseded to 49553A)

Note: (XL98C-14")

$

$

Not available

33

Homelite 84027

WASHER-Flat 5/16

Note: (XL98C-14")

$

$

Not available

34

Homelite 83009

WASHER-Lock 1/4

Note: (XL98C-14")

$9.99

$

Usually ships in 3-7 days

0

35

Homelite 80048

SCREW-Hex cap 114-20 x 5/8
(Superseded to UP03380)

Note: (XL98C-14")

$

$

Not available

36

Homelite A535734A

HANDLE BAR

Note: (XL98C-12")

$

$

Currently unavailable

Homelite A496801

HANDLE BAR
(Superseded to A49927)

Note: (XL98C-14")

$

$

Not available

37

Homelite 804281

SCREW-Nylock 1/4-20 x 1"
(Superseded to UP06828)

Note: (XL98C-12")

$

$

Not available

Homelite 804281

SCREW-Nylock 1/4-20 x 1"
(Superseded to UP06828)

Note: (XL98C-14")

$

$

Not available

38

Homelite 507242

SPACER

$

$

Not available

39

Homelite 82242

SCREW-Nylock 1/4-20 x 1 7/8

$

$

Not available

40

Homelite 51162

MOUNT-Shock (spacer)

$

$

Not available

41

Homelite 51163

MOUNT-Shock (bracket)

$

$

Not available

42

Homelite 698292

BRACKET-Handle Bar
(Superseded to 698292A)

$

$

Not available

43

Homelite 80867

SCREW-Hex hd. 12-24 x 3/4

$5.99

$

Usually ships in 3-7 days

0

44

Homelite 93628

COVER-Clutch

$

$

Not available

45

Homelite 657601B

PLATE-Clutch back

$

$

Not available

46

Homelite 69461

SHOE-Clutch

$

$

Not available

47

Homelite 67053

SPRING-Clutch

$

$

Not available

48

Homelite 58833

WASHER

$

$

Not available

49

Homelite A-49224

PULLEY-Bearing & Arm

Note: Includes Ref. #50.

$

$

Not available

50

Homelite 51151

BEARING

$

$

Not available

51

Homelite A-97901

RACE-Inner bearing

$

$

Currently unavailable

52

Homelite 535795

COVER-Drivecase

$

$

Not available

53

Homelite 810892

NUT-3/8-16

$15.99

$

Usually ships in 3-7 days

0

Homelite A-49554

Adjusting Arm

$

$

Currently unavailable

Homelite 46456A

Spacer
(Superseded to 46456B)

$

$

Not available

Homelite A-46456B

Spacer

$

$

Currently unavailable

Homelite 82371

Step Bolt

$

$

Not available
