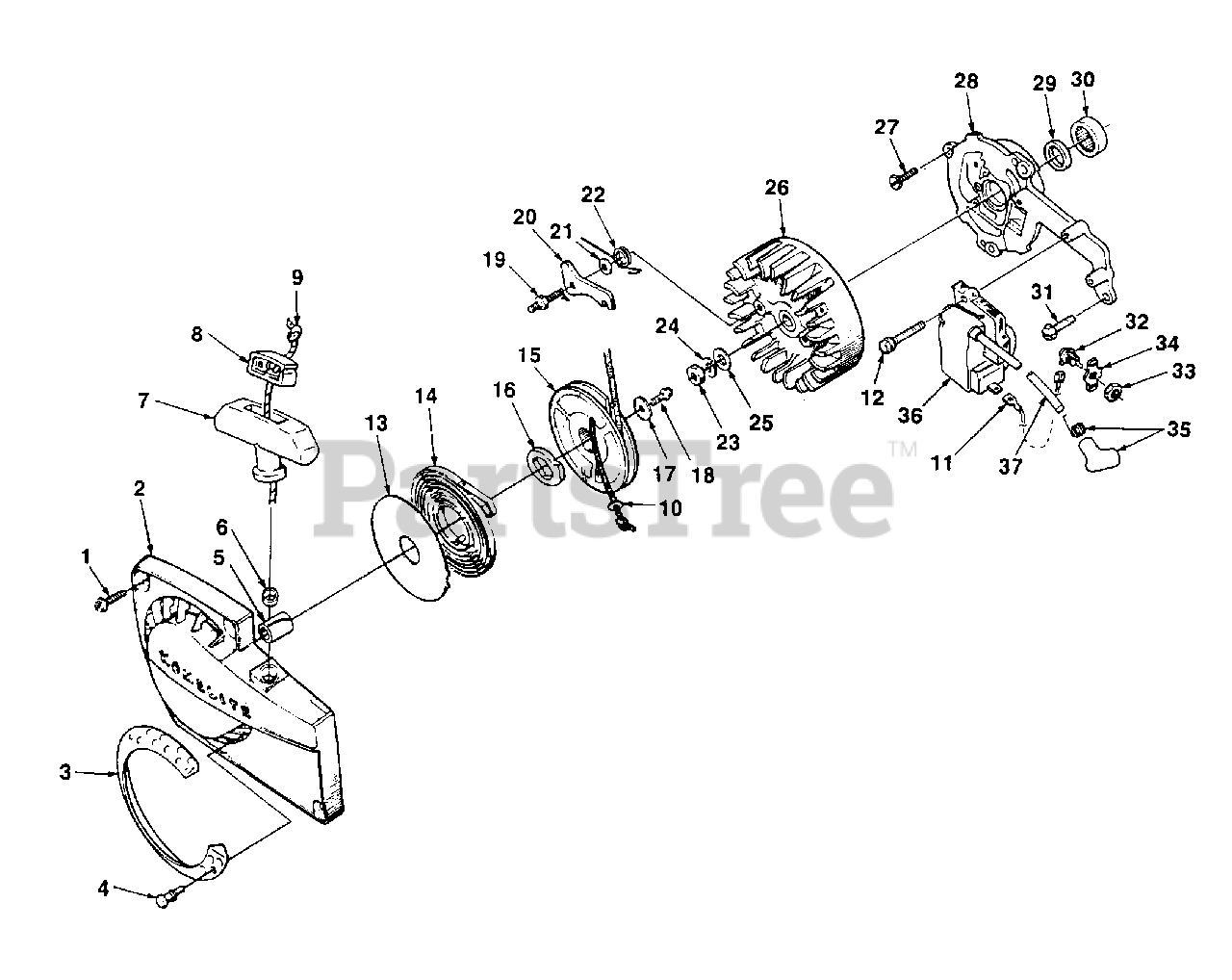

XL 98 C (UT-05037) - Homelite 14" Multi Purpose Saw Starter And Ignition Parts Diagram

14" Multi Purpose Saw

Starter And Ignition Parts Diagram

  • Title

1

Homelite 80676

SCREW-Hex hd. 12-24 x 5/8

$

$

Not available

2

Homelite A64504C

HOUSING-Starter
(Superseded to A02779)

Note: Includes Items 3 - 6.

$

$

Currently unavailable

3

Homelite A-64421

KIT-Fan housing screen

$

$

Not available

4

Homelite 67191

STUD-Drive #2 x 1/4
(Superseded to 82498)

$

$

Not available

5

Homelite 64443

BUSHING

$

$

Not available

6

Homelite 67177

BUSHING

$

$

Not available

7

Homelite A69962B

GRIP-Starter

Note: Includes Item 8.

$11.99

$

Usually ships in 3-7 days

0

8

Homelite 70018A

INSERT

$

$

Not available

9

Homelite A-93875

ROPE-Starter (48", #5)

Note: Includes Item 10.

$

$

Currently unavailable

10

Homelite 93862

WASHER

$2.99

$

Usually ships in 3-7 days

0

11

Homelite A-94850

LEAD-Ground

$

$

Not available

12

Homelite 88044

SCREW-Sems hex hd. 8-32 x 1

$

$

Not available

13

Homelite 63566

SHIELD

$

$

Not available

14

Homelite 63268A

SPRING

$

$

Not available

15

Homelite A-64446

PULLEY & CUP

Note: Includes Item 16.

$

$

Currently unavailable

16

Homelite 94827

LOCK-Spring
(Superseded to UP07445)

$

$

Not available

17

Homelite 58763

WASHER

$

$

Not available

18

Homelite 80648

SCREW-Hex hd. 10-32 x 1/2

$

$

Not available

19

Homelite 58757E

STUD-Starter pawl

$

$

Not available

20

Homelite 587563

STARTER PAWL
(Superseded to UP06426)

$

$

Not available

21

Homelite 84115

WASHER-Flat
(Superseded to 588512)

$

$

Not available

22

Homelite 653752

SPRING-Starter pawl
(Superseded to UP06351)

$

$

Not available

23

Homelite 81124A

NUT-Hex 3/8-24

$

$

Not available

24

Homelite 83102

WASHER-Lock 3/8

$

$

Not available

25

Homelite 84010

WASHER-Flat 3/8
(Superseded to PS84010)

$

$

Not available

26

Homelite 96801A

ROTOR-Magneto

$

$

Not available

27

Homelite 80048

SCREW-Hex 1/4-20 x 5/8
(Superseded to UP03380)

$

$

Not available

28

Homelite A96799A

PLATE-Back

Note: Includes Items 29 & 30.

$

$

Not available

29

Homelite 12282A

SEAL
(Superseded to UP07436)

$6.99

$

In Stock, only 3 left!

0

30

Homelite 63195

BEARING-Roller

$

$

Not available

31

Homelite 802181

SCREW-Sems hex hd. 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

32

Homelite A576503A

SWITCH
(Superseded to A576503B)

Note: Includes Item 33.

$

$

Not available

33

Homelite 72084A1

NUT
(Superseded to UP04146)

$2.99

$

Usually ships in 3-7 days

0

34

Homelite 12793A

PLATE-Indicating
(Superseded to UP07113)

$

$

Not available

35

Homelite A-33055

TERMINAL-Spark plug

$

$

Not available

36

Homelite A96798A

MODULE-Ignition
(Superseded to A96798AS)

Note: Includes Item 37.

$

$

Not available

37

Homelite 96743

LEAD-High tension

$

$

Not available
