XL 98 E (UT-05060) - Homelite Multi Purpose Saw Carburetor Parts Diagram

Multi Purpose Saw

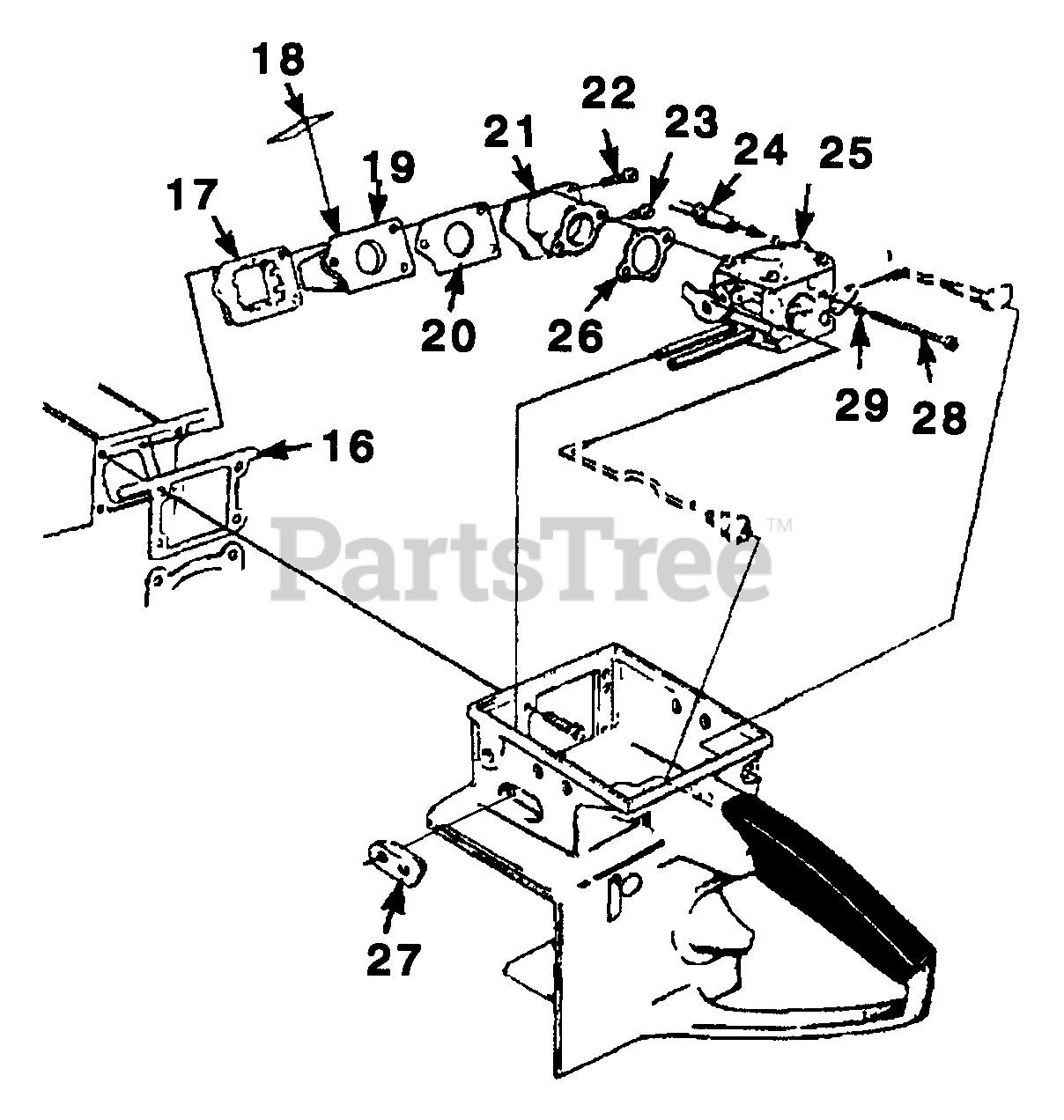

Carburetor Parts Diagram

  • Title

16

Homelite 63779C

GASKET

$

$

Not available

17

Homelite 63370A

RETAINER - Reed

$12.99

$

Usually ships in 3-7 days

0

18

Homelite 63166A

REED - Valve

$7.49

$

In Stock, only 2 left!

0

19

Homelite 63371B

SEAT - Reed Valve

$

$

Not available

20

Homelite 65483

GASKET

$

$

Not available

21

Homelite A674601

SPACER - Carburetor

$

$

Currently unavailable

22

Homelite 82570

SCREW - (8-32 X 1 1/4")

Note: Torque Specs. 20-25 In/Lbs, 2.3-2.8 Nm ; 242 Blue Required Locktite

$

$

Not available

23

Homelite 82540

SCREW - Thread form (8-32 X 1 1/4")

Note: Torque Specs. 20-25 In/Lbs, 2.3-2.8 Nm ; 242 Blue Required Locktite

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 9311252

FUEL LINE

$

$

Currently unavailable

25

Homelite A07156

CARBURETOR

$

$

Currently unavailable

26

Homelite 67540

GASKET

$

$

Not available

27

Homelite 69751

GROMMET

$

$

Not available

28

Homelite 82179

SCREW - (10-32 X 1 7/8")

Note: Torque Specs. 20-25 In/Lbs, 2.3-2.8 Nm

$

$

Not available

29

Homelite 83046

WASHER - Lock

$

$

Not available
