XLS 1.54 XL (UT-01274) - Homelite Pump Pump Parts Diagram

Pump

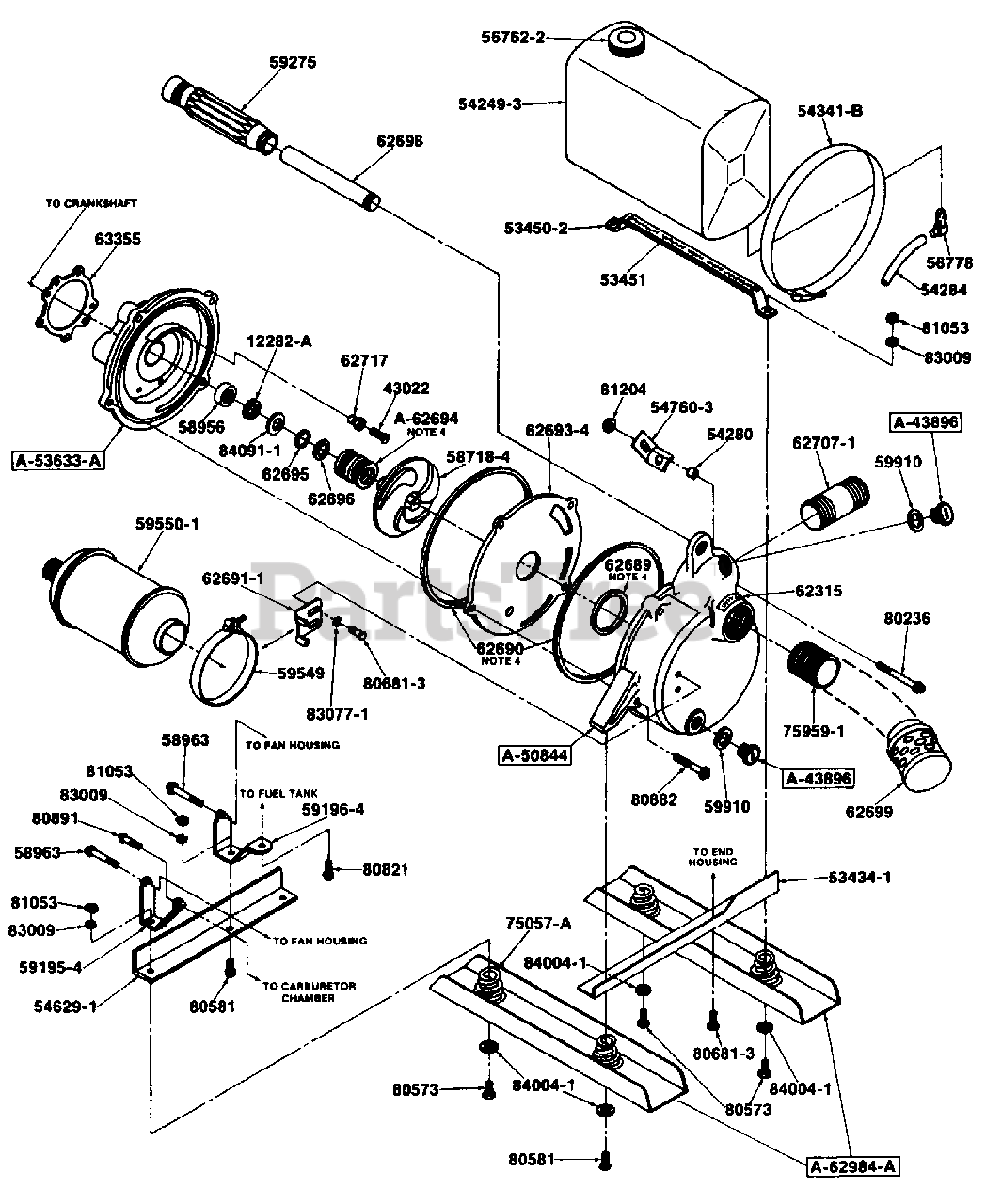

Pump Parts Diagram

  • Title

12282A

Homelite 12282A

SEAL
(Superseded to UP07436)

Note: This is a special tool.

$

$

Not available

43022

Homelite 43022

SCREW Hex hd 12-24 x 1 3/4

$

$

Not available

A-43896

Homelite A43896

CAP & GASKET
(Superseded to UP07092)

$

$

Currently unavailable

59910

Homelite 59910

GASKET- Drain & fillcap

$

$

Not available

A-50844

Homelite A-50844

HOUSING- End

$

$

Currently unavailable

Homelite 627071

FITTING Discharge (1 1/2 x 3)

$

$

Not available

Homelite 759591

FITTING- Suction (1 1/2 x 1 3/4)

$42.99

$

Usually ships in 3-7 days

0

53434-1

Homelite 534341

ANGLE- Base (Pump end)

$

$

Currently unavailable

53450-2

Homelite 534502

SUPPORT- Tank

$

$

Currently unavailable

53451

Homelite 53451

PAD- Fuel tank support

$10.99

$

Usually ships in 3-7 days

0

A-53633-A

Homelite A53633A

HOUSING Impeller

$

$

Not available

Homelite 12282A

SEAL
(Superseded to UP07436)

$

$

Not available

Homelite 58956

BEARING- Needle

$

$

Not available

54249-3

Homelite 542493

TANK- Fuel

$

$

Currently unavailable

54280

Homelite 54280

SPACER

$

$

Not available

54284

Homelite 54284

LINE- Fuel flexible

$

$

Not available

54341-B

Homelite 54341B

CLAMP- Fuel tank

$

$

Currently unavailable

54629-1

Homelite 546291

ANGLE Base (engine end)

$

$

Currently unavailable

54760-3

Homelite 547603

BRACKET

$

$

Currently unavailable

56762-2

Homelite 567622

CAP- Filler

$

$

Not available

56778

Homelite 56778

ELBOW Screen

$

$

Not available

58718-4

Homelite 587184

IMPELLER

$

$

Currently unavailable

58956

Homelite 58956

BEARING

$

$

Not available

58963

Homelite 58963

SCREW- Hex 12-24 x 1 11/16

$

$

Not available

59195-4

Homelite 591954

LEG- Right

$

$

Currently unavailable

59196-4

Homelite 591964

LEG- Left

$

$

Currently unavailable

59275

Homelite 59275

GRIP- Handle
(Superseded to UP06643)

$

$

Not available

59549

Homelite 59549

STRAP- Muffler

$

$

Not available

59550-1

Homelite 595501

MUFFLER

$

$

Currently unavailable

59910

Homelite 59910

GASKET Drain & Fill cap

$

$

Not available

62315

Homelite 62315

DECAL- Fill with water before starting

$

$

Not available

62689

Homelite 62689

GASKET- 1 3/4 I.D. x 1/8 sq.

Note: Any XL pump may be used for insecticides when equipped with A-54575 Seal Assembly, 54182 "O" Ring and 54183 "O" Ring.

$

$

Not available

62690

Homelite 62690

GASKET- 6 3/4 I.D. x 1/8 sq.

Note: Any XL pump may be used for insecticides when equipped with A-54575 Seal Assembly, 54182 "O" Ring and 54183 "O" Ring.

$

$

Not available

62691-1

Homelite 626911

BRACKET- Muffler

$

$

Currently unavailable

62693-4

Homelite 626934

PLATE- Wear

$

$

Currently unavailable

A-62694

Homelite A62694

SEAL ASSEMBLY

$

$

Currently unavailable

62695

Homelite 62695

SHIM- .010

$

$

Not available

62696

Homelite 62696

SHIM- .015

$

$

Not available

62698

Homelite 62698

HANDLE- Carrying

$31.99

$

Usually ships in 3-7 days

0

62699

Homelite 62699

STRAINER- 1 1/2" with 1/4" hole

$

$

Not available

62707-1

Homelite 627071

FITTING- Discharge (1 1/2 x 3)

$

$

Not available

62717

Homelite 62717

WASHER- Sealing

$

$

Not available

A-62984-A

Homelite A62984A

SKID ASSEMBLY

$

$

Currently unavailable

Homelite 75057A

SPRING

$

$

Not available

Homelite 840041

WASHER- (Not shown)
(Superseded to UP04251)

$2.49

$

Usually ships in 3-7 days

0

Homelite 85025

RIVET- (Not shown)

$

$

Not available

63355

Homelite 63355

GASKET
(Superseded to UP05986)

$

$

Not available

75057-A

Homelite 75057A

SPRING

$

$

Not available

75959-1

Homelite 759591

FITTING- Discharge (1 1/2 x 3)

$42.99

$

Usually ships in 3-7 days

0

80236

Homelite 80236

SCREW- Fill hd, 1/4-20 x 2 1/4

$

$

Not available

80573

Homelite 80573

SCREW- Hex spinlock slotted 1/4-20 x 13/16

$

$

Not available

80581

Homelite 80581

SCREW- Hex spinlock, 1/4-20 x 5/8
(Superseded to UP03380)

$

$

Not available

80681-3

Homelite 806813

SCREW- Hex spinlock, 1/4-20 x 1/2

$

$

Not available

80821

Homelite 80821

SCREW- Hex hd ,12-24 x 1/2

$2.99

$

Usually ships in 3-7 days

0

80882

Homelite 80882

SCREW- Hex spinlock, 1/4-20 x 1 1/2

$

$

Not available

80891

Homelite 80891

SCREW- Hex, 12-24 x 7/8

$

$

Not available

81053

Homelite 81053

NUT- Hex, 1/4-20

$

$

Not available

81204

Homelite 81204

NUT- Flexloc, 1/4-20

Note: 0

$6.49

$

Usually ships in 3-7 days

0

83009

Homelite 83009

WASHER- Lock, 1/4

$9.99

$

Usually ships in 3-7 days

0

83077-1

Homelite 830771

WASHER- 1/4, lock

$

$

Not available

84004-1

Homelite 840041

WASHER- Flat
(Superseded to UP04251)

$2.49

$

Usually ships in 3-7 days

0

84091-1

Homelite 840911

WASHER
(Superseded to 84091)

Note: 0

$

$

Not available
