XLS 21B (UT-01294-A) - Homelite Pump Pump Parts Diagram

Pump

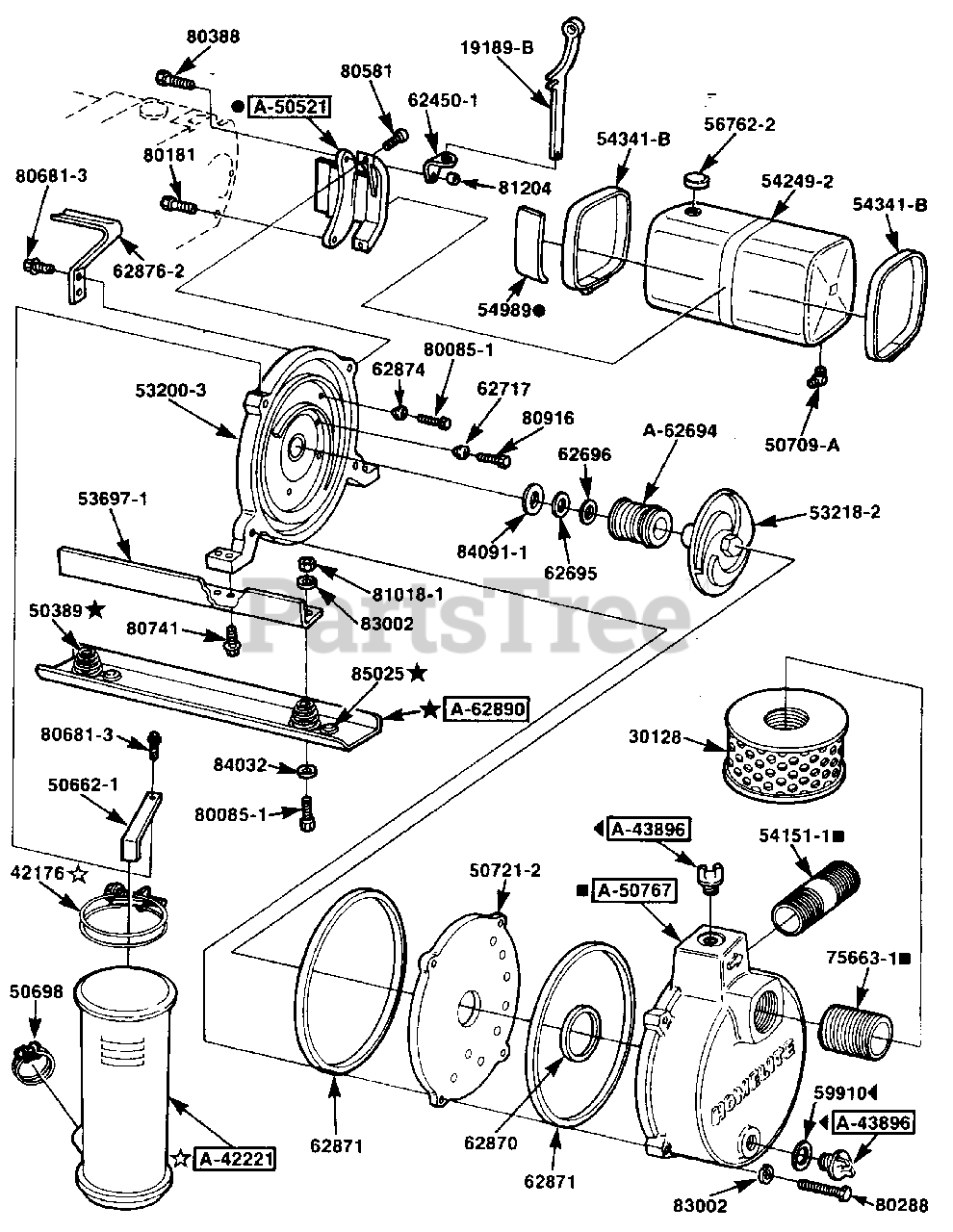

Pump Parts Diagram

  • Title

19189-B

Homelite 19189B

WRENCH- Spanner
(Superseded to UP03586)

$

$

Not available

30128

Homelite 30128

STRAINER
(Superseded to UP06390)

$

$

Not available

42176

Homelite 42176

CLAMP- 4 1/4

$

$

Currently unavailable

A-42221

Homelite A42221

MUFFLER

$437.99

$

Usually ships in 3-7 days

0

A-43896

Homelite A43896

CAP- Drain and fill
(Superseded to UP07092)

$

$

Currently unavailable

50389

Homelite 50389

SPRING- Foot
(Superseded to UP03795)

$

$

Not available

A-50521

Homelite A50521

BRACKET- Fuel tank

$71.99

$

Usually ships in 3-7 days

0

50662-1

Homelite 506621

BRACKET- Muffler

$

$

Currently unavailable

50698

Homelite 50698

CLAMP- 1-5/8

$8.49

$

Usually ships in 3-7 days

0

50709-A

Homelite 50709A

ELBOW- Screen

$

$

Currently unavailable

50721-2

Homelite 507212

PLATE- Wear

$

$

Currently unavailable

A-50767

Homelite A50767

HOUSING- End

$

$

Currently unavailable

53200-3

Homelite 532003

HOUSING- Impeller

$

$

Currently unavailable

53218-2

Homelite 532182

IMPELLER

$

$

Currently unavailable

53697-1

Homelite 536971

ANGLE

$

$

Currently unavailable

541511

Homelite 541511

FITTING- Pipe discharge

$

$

Not available

54249-2

Homelite 542492

TANK- Fuel

$

$

Currently unavailable

54341-B

Homelite 54341B

CLAMP

$

$

Currently unavailable

54989

Homelite 54989

SPACER

$

$

Currently unavailable

56762-2

Homelite 567622

CAP- Fuel filler

$

$

Not available

59910

Homelite 59910

GASKET

$

$

Not available

624501

Homelite 624501

BRACKET- Spanner wrench

$

$

Not available

A-62694

Homelite A62694

SEAL

$

$

Currently unavailable

62695

Homelite 62695

SHIM- 015

$

$

Not available

62696

Homelite 62696

SHIM- 010

$

$

Not available

62717

Homelite 62717

WASHER Sealing, #12

$

$

Not available

62870

Homelite 62870

GASKET- Impeller housing

$

$

Not available

62871

Homelite 62871

GASKET- Back-plate

$15.99

$

Usually ships in 3-7 days

0

62874

Homelite 62874

WASHER- Sealing
(Superseded to UP06437)

$5.99

$

Usually ships in 3-7 days

0

628762

Homelite 628762

HANDLE- Carrying

$

$

Currently unavailable

A-62890

Homelite A62890

SKID

$

$

Currently unavailable

756631

Homelite 756631

FITTING- Pipe inlet
(Superseded to UP03807)

$

$

Not available

80085-1

Homelite 800851

SCREW- Hex 5/16-18 x 1"
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

80181

Homelite 80181

SCREW- Hex hd., 1/4-20 x 7/8

$4.49

$

Usually ships in 3-7 days

0

80288

Homelite 80288

SCREW- Hex hd., 5/16-18 x 1 3/4
(Superseded to UP03388)

$

$

Not available

80388

Homelite 80388

SCREW- Hex hd., 1/4-20 x 1-1/4

$

$

Not available

80581

Homelite 80581

SCREW- Hex hd., 1/4-20 x 5/8
(Superseded to UP03380)

$

$

Not available

80681-3

Homelite 806813

SCREW- Hex hd., 1/4-20 x 1/2

$

$

Not available

80741

Homelite 80741

SCREW- Hex hd. 5/16-18 x 5/8

$

$

Currently unavailable

80916

Homelite 80916

SCREW- Pan hd. 12-24 x 3/4

$

$

Not available

81018-1

Homelite 810181

NUT- 5/16-18

$

$

Currently unavailable

81204

Homelite 81204

NUT- Flexlock, 1/4-20

$6.49

$

Usually ships in 3-7 days

0

83002

Homelite 83002

LOCKWASHER- 5/16
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

84032

Homelite 84032

WASHER- Flat. 5/16-3/4

$

$

Not available

84091-1

Homelite 840911

WASHER- 064 thick, 7/8 Q.D.
(Superseded to 84091)

$

$

Not available

85025

Homelite 85025

RIVET

$

$

Not available
