XP 21550VE (80446) - Snapper 21" Walk-Behind Mower, 5.5hp Wheel Latches, Shields Parts Diagram

21" Walk-Behind Mower, 5.5hp

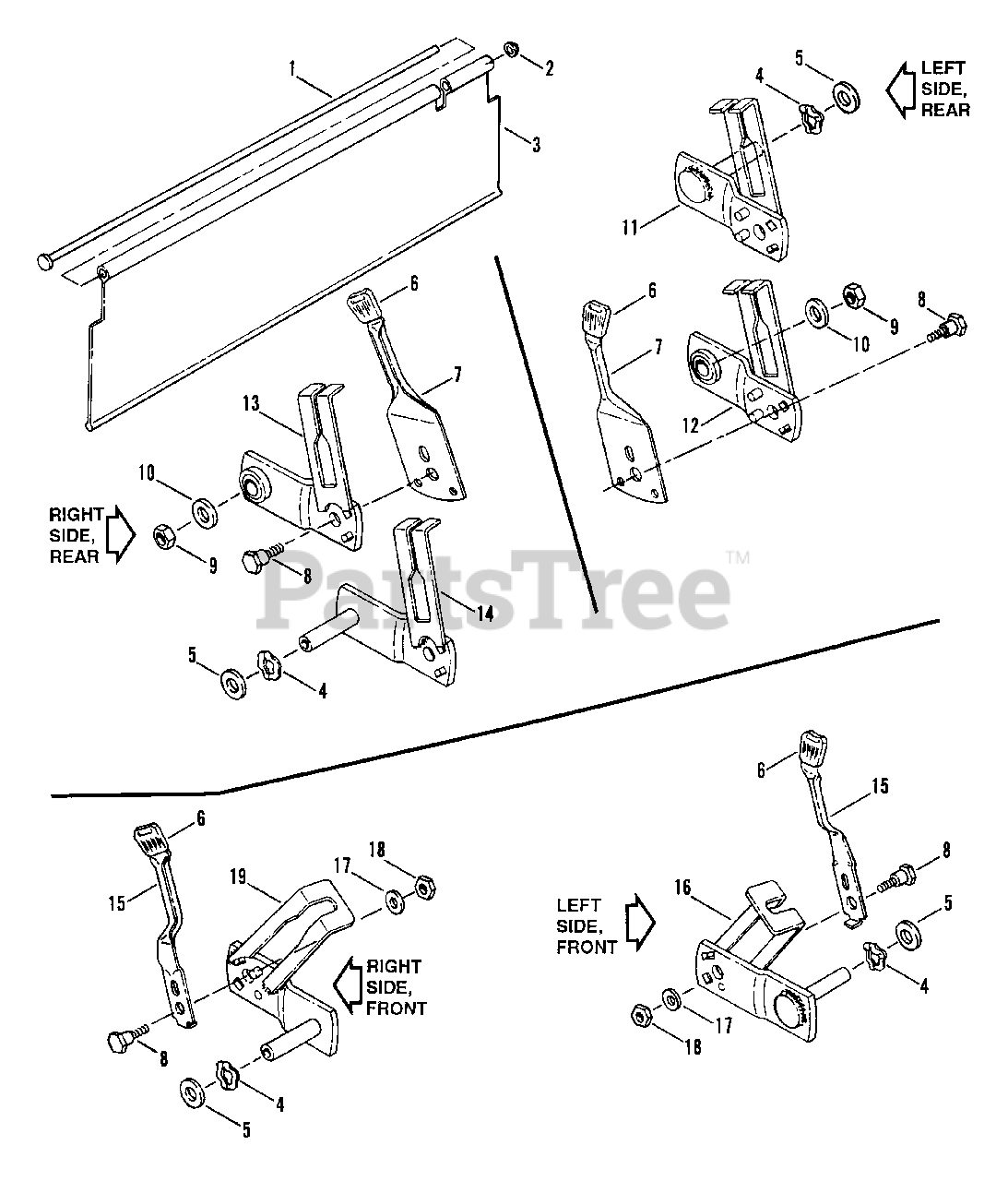

Wheel Latches, Shields Parts Diagram

  • Title

1

Snapper 7026275

ROD, Trail Shield
(Superseded to 7026275YP)

$6.99

$

Usually ships in 2-12 days

0

2

Snapper 7012542

NUT, 5/16 Push
(Superseded to 704028)

$5.49

$

In Stock, Qty 10

0

3

Snapper 7024526

SHIELD, Trail
(Superseded to 7024526YP)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper 7026257

WASHER, 17/32 Wave
(Superseded to 7026257MA)

Note: (Push & Self-Propelled Models)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7025074

WASHER, 17/32" I.D. x 1" O.D. Flat
(Superseded to 7025074SM)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7027702

GRIP, Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

7

Snapper 7053213

ASSEMBLY, Height Adjusting Latch (Rear)
(Superseded to 7053213YP)

Note: (Includes item 6)

$29.99

$

Usually ships in 2-12 days

0

8

Snapper 7026676

BOLT, 5/16-18 x 1-9/32" Shoulder
(Superseded to 7026676YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090377

NUT, 7/16-20 Hex Center Lock
(Superseded to 7090377SM)

Note: (Self-Propelled Models)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7031961

WASHER, 7/16 Flat
(Superseded to 703964)

Note: (Self-Propelled Models)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7041503

BRACKET, Wheel, Left Hand Rear
(Superseded to 7041503YP)

Note: (Push Models)

$83.99

$

Usually ships in 2-12 days

0

12

Snapper 7053211

BRACKET, Wheel, Left Hand Rear
(Superseded to 7053211YP)

Note: (Self-Propelled Models)

$65.99

$

Usually ships in 2-12 days

0

13

Snapper 7053210

BRACKET, Wheel, Right Hand Rear
(Superseded to 7053210YP)

Note: (Self-Propelled Models)

$95.99

$

Usually ships in 2-12 days

0

14

Snapper 7041502

BRACKET, Wheel, Right Hand Rear

Note: (Push Models)

$

$

Not available

15

Snapper 7053009

ASSEMBLY, Height Adjusting Latch (Front)

Note: (Includes item 6)

$

$

Not available

16

Snapper 7041500

BRACKET, Wheel, Left Hand Front

Note: (Push & Self-Propelled Models)

$

$

Not available

17

Snapper 7091076

WASHER, 5/16 Flat (Front)
(Superseded to 703350)

Note: (Push & Self-Propelled Models)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091575

NUT, 5/16-18 Hex Center Lock (Front)
(Superseded to 703164)

Note: Was 91067 (Push & Self-Propelled Models)

$3.49

$

In Stock, Qty 12

0

19

Snapper 7041499

BRACKET, Wheel, Right Hand Front
(Superseded to 7041499YP)

Note: (Push & Self-Propelled Models)

$66.99

$

Usually ships in 2-12 days

0

?20

Snapper 7091076

WASHER, 7/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

?21

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0
