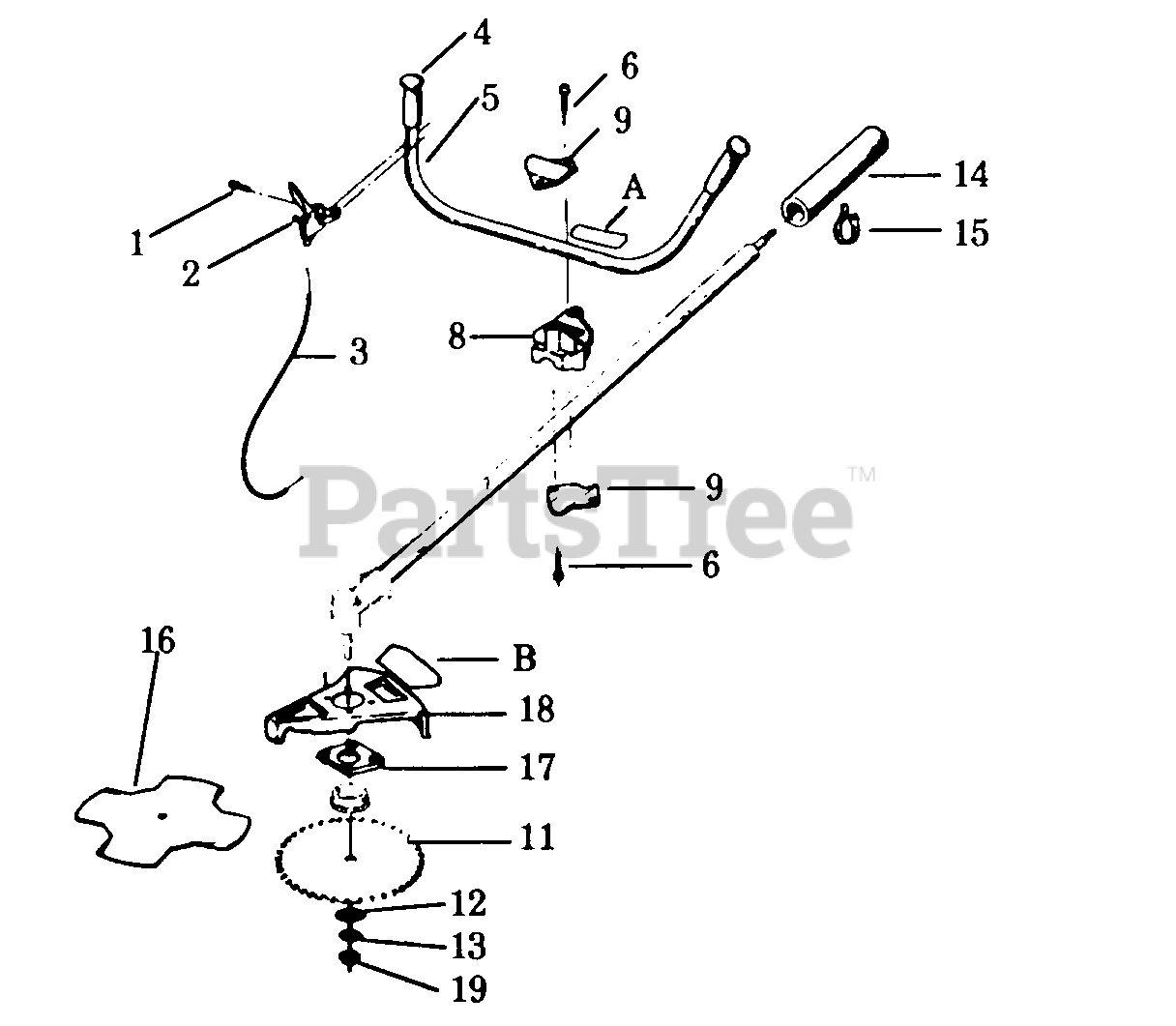

XR 105 - Weed Eater String Trimmer BLADE ADAPTOR KITS Parts Diagram

String Trimmer

BLADE ADAPTOR KITS Parts Diagram

  • Title

Poulan 952701576

Blade Adaptor Kit - XR-105

$56.99

$

Usually ships in 3-10 days

0

Poulan 952701609

Blade Adaptor Kit - XR-125

$

$

Not available

1

Poulan 530094210

Screw

$1.49

$

Usually ships in 3-10 days

0

2

Poulan 530093957

Throttle Control Ass'y.

$21.99

$

Usually ships in 3-10 days

0

3

Poulan 530093955

Throttle Cable

$

$

Not available

4

Poulan 530093947

Handlebar Grip

$

$

Not available

5

Poulan 530093946

Handlebar

$

$

Not available

6

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

9

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

11

Poulan 952701547

XR-105

$

$

Not available

11

Poulan 952701610

XR-125
(Superseded to 952711585)

$

$

Not available

12

Poulan 530015792

Washer

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, Qty 5

0

14

Poulan 530027706

Drive Shaft Pad

$

$

Not available

15

Poulan 530091426

Tie Strap

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 952701546

XR-105 (Optional for this Model)

$

$

Not available

16

Poulan 952701611

XR-125
(Superseded to 952711585)

$

$

Not available

17

Poulan 530027615

Shield Retention Plate

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 530094627

Shield
(Superseded to 530094633)

$

$

Not available

19

Poulan 530015793

Nut

$6.49

$

In Stock, Qty 10

0

A

Poulan 530027778

Handlebar Warning Decal

$

$

Not available

B

Poulan 530027749

Blade Rotation Decal (Not a serviceable part)

$

$

Not available
