XR 105 - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

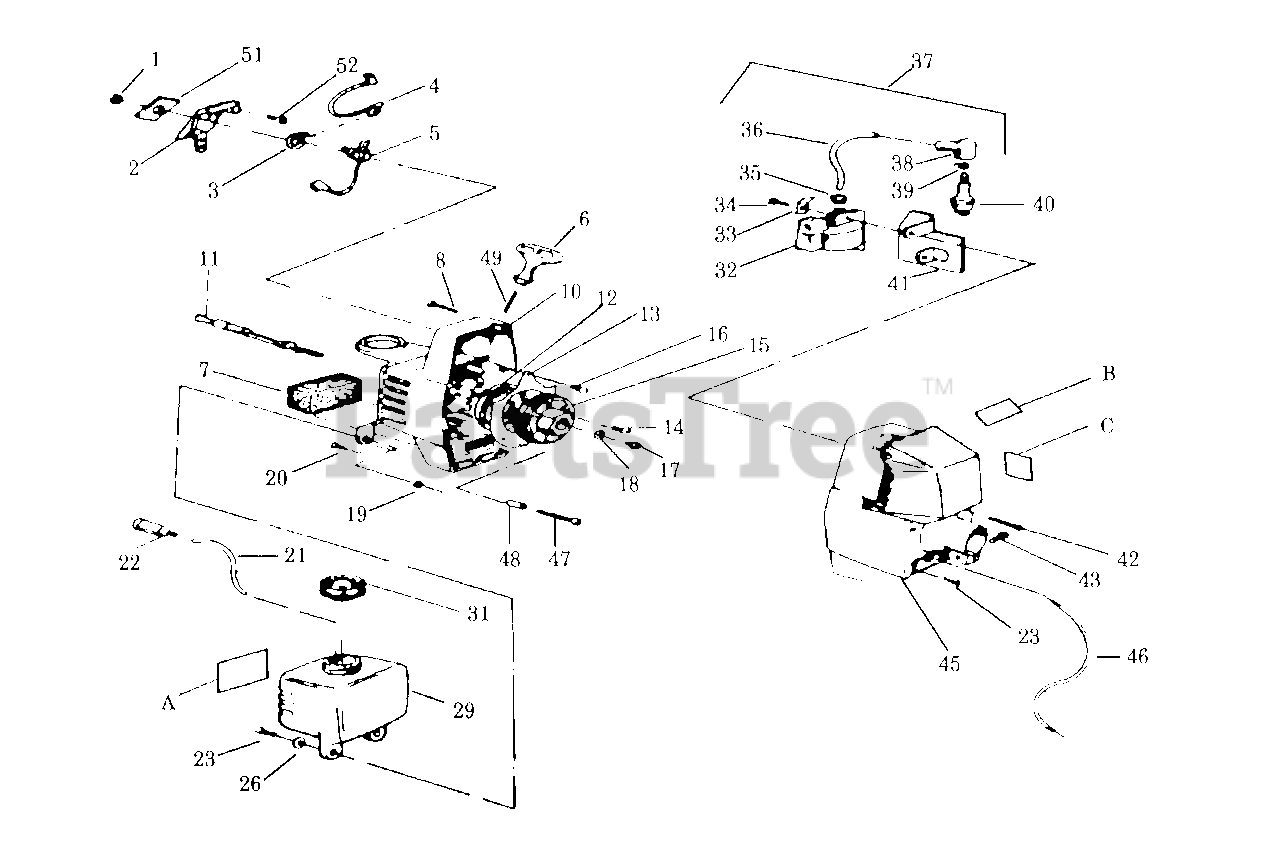

STARTER & SHROUD Parts Diagram

  • Title

1

Poulan 530023575

Grounding Switch Nut
(Superseded to 530002582)

$

$

Not available

2

Poulan 530026616

Housing Switch

$

$

Not available

3

Poulan 530024569

Grounding Switch Washer

$

$

Not available

4

Poulan 530039122

Lead Wire Grouding Switch

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530069182

Grounding Switch Kit (Inc. 1,3,4,33)

$

$

Not available

6

Poulan 530026735

Handle
(Superseded to 530027569)

$6.49

$

In Stock, only 2 left!

0

7

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 530015583

Screw

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530069236

Fan Housing Kit

$

$

Not available

11

Poulan 530024303

Choke Knob

$

$

Not available

12

Poulan 530042067

Starter Pulley Spring
(Superseded to 545008009)

$8.49

$

Usually ships in 3-10 days

0

13

Poulan 530026035

Air Baffle

$

$

Not available

14

Poulan 530015373

Screw

$

$

Not available

15

Poulan 530026048

Starter Pulley

$

$

Not available

16

Poulan 530015596

Screw

$

$

Not available

17

Poulan 530015036

Screw
(Superseded to 530016141)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

19

Poulan 530001543

Nut

$

$

Not available

20

Poulan 530015582

Screw

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530069247

Line Kit

$6.49

$

In Stock, Qty 20+

0

22

Poulan 530091878

XR-105-T 1

$

$

Not available

22

Poulan 530010897

XR-105-T 2; XR-125-T 1
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

23

Poulan 530015168

Screw

$

$

Not available

26

Poulan 530015123

Lockwasher

$4.99

$

In Stock, only 4 left!

0

29

Poulan 530010838

Fuel Tank Ass'y.

$

$

Not available

31

Poulan 530010729

Fuel Cap Ass'y.
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

32

Poulan 530069181

Ignition Module Kit

$

$

Not available

33

Poulan 530025995

Electrical Tab

$0.99

$

Usually ships in 3-10 days

0

34

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530024435

Plug Wire Grommet

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530039082

High Tension Lead Wire

$

$

Not available

37

Poulan 530039103

High Tension Lead Ass'y. (Inc.36,38,39)

$

$

Not available

38

Poulan 530003934

Spark Plug Boot

$

$

Not available

39

Poulan 530003933

Spark Plug Lead Connector
(Superseded to 507475326)

$

$

Not available

40

Poulan 530030077

Spark Plug (CJ-14)

$

$

Not available

41

Poulan 530026658

Air Deflector

$

$

Not available

42

Poulan 530015376

Screw

$

$

Not available

43

Poulan 530093802

Bolt

$

$

Not available

45

Poulan 530010763

XR-105

$

$

Not available

45

Poulan 530010931

XR-125

$

$

Not available

46

Poulan 530093959

Throttle Cable

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 530015305

Screw

$1.99

$

Usually ships in 3-10 days

0

48

Poulan 530026122

Spacer

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

51

Poulan 530026741

Indicating Switch Plate

$2.49

$

Usually ships in 3-10 days

0

52

Poulan 530015598

Screw

$

$

Not available

A

Poulan 530027389

Fuel Tank Decal

$

$

Not available

B

Poulan 530026999

XR-105 & XR-125 (Not a serviceable part)

$

$

Not available

C

Poulan 530027390

XR-105

$

$

Not available

C

Poulan 530027694

XR-125 Right

$

$

Not available

C

Poulan 530027693

XR-125 Only

$

$

Not available
