XR 125 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

String Trimmer

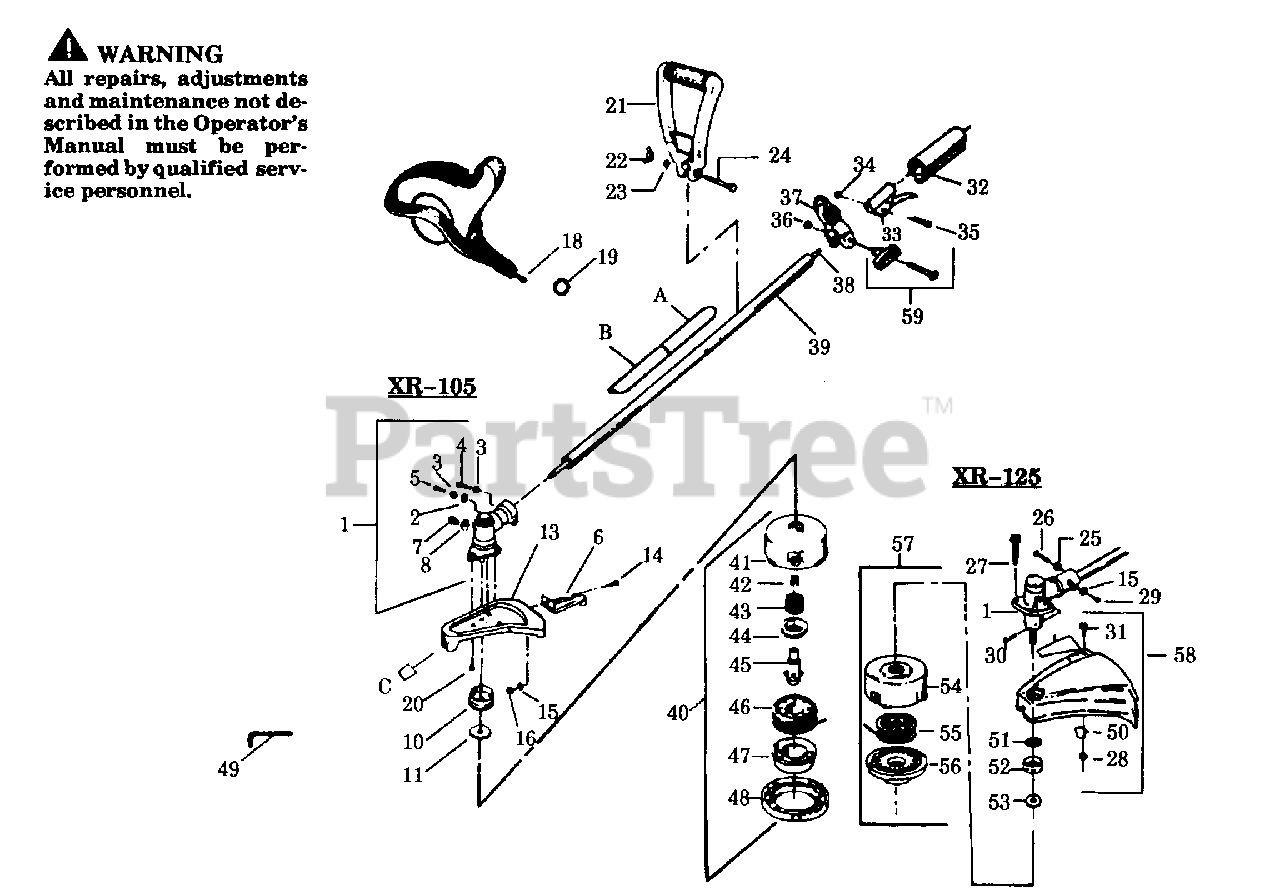

CUTTING HEAD & DRIVE SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530094495

XR-105

$116.99

$

Usually ships in 3-10 days

0

1

Poulan 530094568

XR-125
(Superseded to 530071781)

$

$

Not available

2

Poulan 530094206

Washer

$

$

Not available

3

Poulan 530094449

Lockwasher

$

$

Not available

4

Poulan 530094208

Screw

$

$

Not available

5

Poulan 530094205

Screw

$

$

Not available

6

Poulan 530094499

Line Limiter

$

$

Not available

7

Poulan 530094485

Screw

$

$

Not available

8

Poulan 530091582

Washer

$

$

Not available

10

Poulan 530093984

Upper Adaptor

$

$

Not available

11

Poulan 530093985

Lower Adaptor

$

$

Not available

13

Poulan 530094496

XR-105

$

$

Not available

13

Poulan 530094594

XR-125

$

$

Not available

14

Poulan 530015539

Screw

$

$

Not available

15

Poulan 530015328

Washer

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530001543

Nut

$

$

Not available

18

Poulan 530094417

Shoulder Strap

$

$

Not available

19

Poulan 530092231

Shoulder Strap Key Ring

$

$

Not available

20

Poulan 530094487

Screw

$

$

Not available

21

Poulan 530010618

Assist Handle
(Superseded to 530069496)

$

$

Not available

22

Poulan 530091373

Wing Nut "D" Handle

$4.99

$

In Stock, only 1 left!

0

23

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530015737

Screw

$

$

Not available

25

Poulan 530001642

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 530001711

Screw

$1.99

$

In Stock, only 1 left!

0

27

Poulan 530015790

Screw
(Superseded to 530092243)

$3.99

$

In Stock, Qty 11

0

28

Poulan 530015653

Nut
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530094612

Screw

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530094616

Screw

$

$

Not available

31

Poulan 530015037

Screw

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 530027682

Drive Shaft Hsg. Grip

$

$

Not available

33

Poulan 530010959

Throttle Control Ass'y.

$

$

Not available

34

Poulan 530015768

Nut

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530015774

Screw

$6.49

$

In Stock, only 3 left!

0

36

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

37

Poulan 530094598

Clamp Harness Ass'y.
(Superseded to 530094686)

$7.49

$

Usually ships in 3-10 days

0

38

Poulan 530094443

XR-105

$

$

Not available

38

Poulan 530094566

XR-125

$78.99

$

Usually ships in 3-10 days

0

39

Poulan 530094454

XR-105

$86.99

$

Usually ships in 3-10 days

0

39

Poulan 530094611

XR-125

$

$

Not available

40

Poulan 530094430

Cutting Hd. Ass'y. (Inc.#41-48) XR-105

$

$

Not available

41

Poulan 530093896

Hub w/ Line Saver
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

42

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530092068

Spring Adaptor
(Superseded to 530328929)

$

$

Not available

45

Poulan 530094429

Drive Gear

$

$

Not available

46

Poulan 952701589

Spool w/Line

$6.99

$

In Stock, Qty 6

0

47

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

48

Poulan 530092133

Cover

$

$

Not available

49

Poulan 530092258

Wrench

$

$

Not available

50

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

51

Poulan 530094640

Seal

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 530094639

Dust Cup

$7.99

$

Usually ships in 3-10 days

0

53

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

54

Poulan 530094557

Hub Ass'y.
(Superseded to 952701643)

$

$

Not available

55

Poulan 952701607

Spool w/Line

$

$

Not available

56

Poulan 530094494

Cover

$

$

Not available

57

Poulan 952701608

Cutting Head Ass'y. (Inc. #54- 56)-Model XR-125
(Superseded to 952701643)

$

$

Not available

58

Poulan 530069256

Shield Kit Ass'y.

$

$

Not available

59

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

A

Poulan 530027432

Safety Label Decal (Upper)

$

$

Not available

B

Poulan 530027433

Safety Label Decal (Lower)

$

$

Not available

C

Poulan 530027348

Shield Warning Decal

$

$

Not available

C

, Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530066942

XR-105

Note: Not Shown.

$

$

Not available

Poulan 530067096

XR-125

Note: Not Shown.

$

$

Not available

, Carton

Note: Not Shown.

$

$

Not available

Poulan 530060922

XR-105

Note: Not Shown.

$

$

Not available

Poulan 530061021

XR-125 Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
