XR 20 T - Weed Eater String Trimmer CARBURETOR BREAKDOWN Parts Diagram

String Trimmer

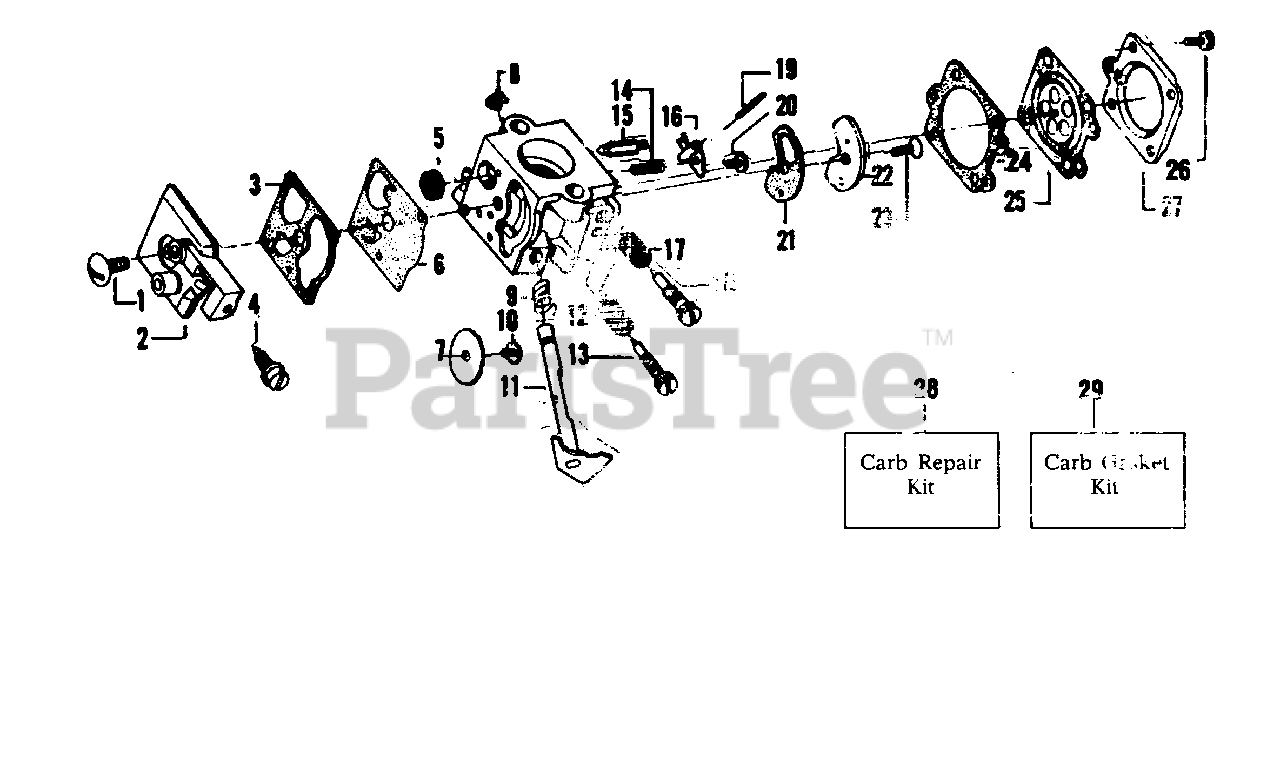

CARBURETOR BREAKDOWN Parts Diagram

  • Title

1

Poulan 530035017

Pump Cover Screw

$0.99

$

Usually ships in 3-10 days

0

2

Poulan 530035191

Pump Cover Ass'y. (Inc.4)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

4

Poulan 530035156

Idle Adjustment Screw

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 530035178

Inlet Screen

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530035166

Diaphragm Pump
(Superseded to 504130807)

$6.49

$

In Stock, Qty 12

0

7

Poulan 530035133

Throttle Valve

$

$

Not available

8

Poulan 530035007

Throttle Shaft Clip

$

$

Not available

9

Poulan 530035138

Throttle Return Spring

$

$

Not available

10

Poulan 530035015

Throttle Valve Screw

$

$

Not available

11

Poulan 530035132

Shaft Ass'y. - Throttle

$

$

Not available

12

Poulan 530035023

Idle Needle Spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

13

Poulan 530035141

Idle Needle

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 530035139

Metering Lever Spring
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

15

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

16

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

17

Poulan 530035036

Hi Speed Needle Spring

$

$

Not available

18

Poulan 530035142

Hi Speed Needle
(Superseded to 501782201)

$

$

Not available

19

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$3.49

$

In Stock, only 3 left!

0

20

Poulan 530035016

Metering Lever Pin Screw

$3.49

$

In Stock, Qty 6

0

21

Poulan 530035147

Circuit Plate Gasket
(Superseded to 501781301)

$

$

Not available

22

Poulan 530035042

Circuit Plate

$

$

Not available

23

Poulan 530035137

Circuit Plate Screw

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

24

Poulan 530035151

Metering Diaphragm Gasket

$3.99

$

In Stock, Qty 8

0

25

Poulan 530035014

Metering Diaphragm Ass'y.
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

26

Poulan 530035153

Metering Cover & Throttle Shaft Clip Ass'y. Screw

$

$

Not available

27

Poulan 530035149

Metering Diaphragm Cover

$

$

Not available

28

Poulan 530035185

Carb Kwik Repair Kit

$36.99

$

In Stock, only 2 left!

0

29

Poulan 530035186

Carb. Gasket/Diaphragm Kit
(Superseded to 530069844)

$18.99

$

Usually ships in 3-10 days

0
