XR 20 T - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

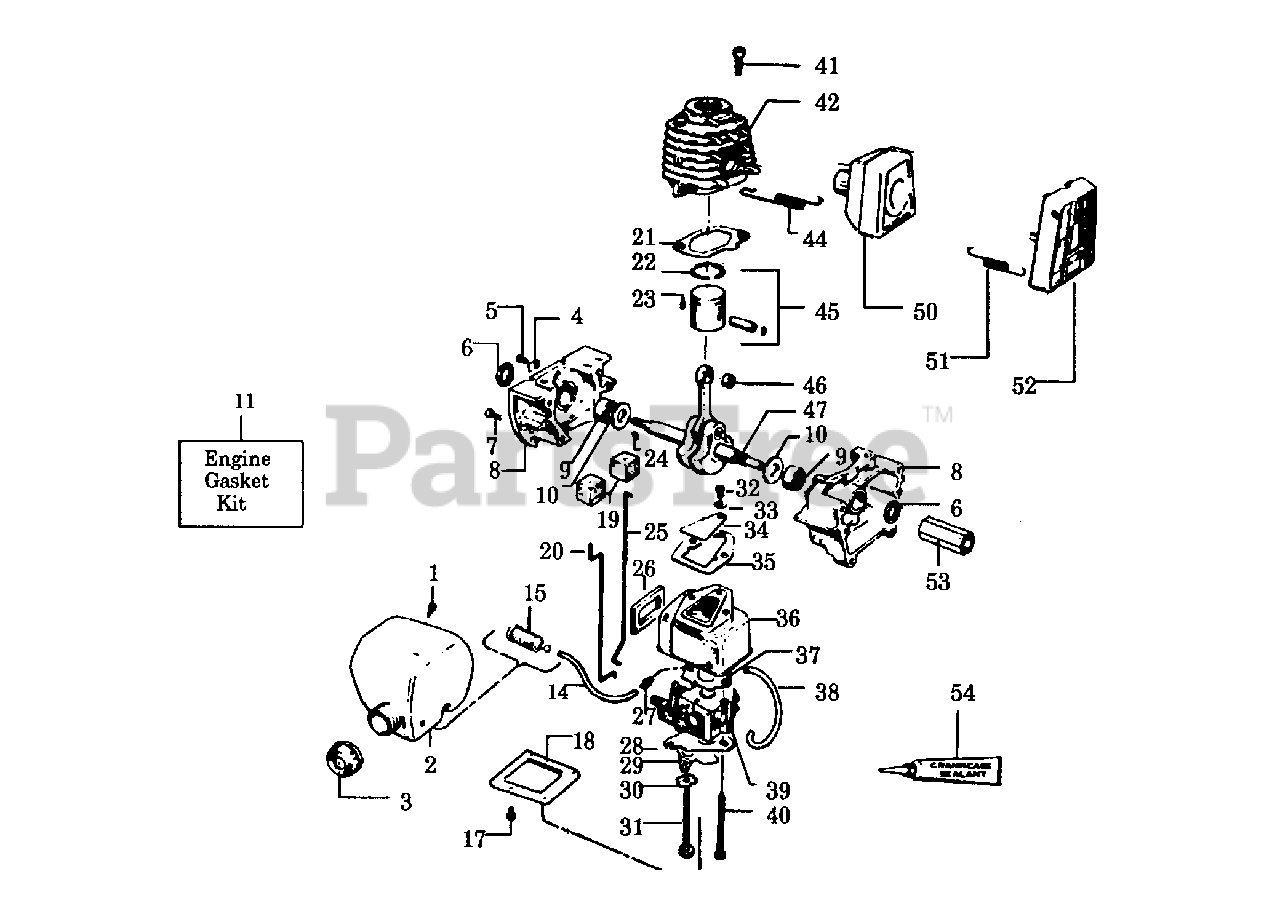

POWER UNIT Parts Diagram

  • Title

1

Poulan 530026119

Check Valve Duck Bill

$4.49

$

In Stock, Qty 16

0

2

Poulan 530010776

Fuel Tank Ass'y.

$

$

Not available

3

Poulan 530010729

Fuel Cap Ass'y. (Inc."O" Ring)
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

4

Poulan 530024651

Choke Wire Clamp

$

$

Not available

5

Poulan 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530019059

Crankcase Seal

Note: Included in Engine Gasket Kit.

$

$

Not available

7

Poulan 530015369

Screw

$

$

Not available

8

Poulan 530010757

Crankcase Ass'y. (Inc.6,7, & 9)

$

$

Not available

9

Poulan 530032029

Crankcase Bearing

$10.99

$

In Stock, only 4 left!

0

10

Poulan 530015351

Washer

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530069219

Engine Gasket Kit

$

$

Not available

14

Poulan 530069216

Fuel Line-Model XR-20-Type 1 & 2

$6.49

$

In Stock, Qty 20+

0

Poulan 530069247

Line Kit-Model XR-20-Type 3;Model XR-20T-T1

$6.49

$

In Stock, Qty 20+

0

15

Poulan 530091878

Model XR-20-T 1 & 2

$

$

Not available

15

Poulan 530010897

Model XR-20-T 3;Model XR-20-T 1
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 530015235

Screw

$

$

Not available

18

Poulan 530026029

Carburetor Case Cover

$

$

Not available

19

Poulan 530023373

Choke Wire Throttle Boot

$

$

Not available

20

Poulan 530026236

Choke Wire

Note: Included in Engine Gasket Kit.

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

$

$

Not available

22

Poulan 530026413

Piston Ring

Note: Included in Engine Gasket Kit.

$

$

Not available

23

Poulan 530015162

Wrist Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530024902

Throttle Wire

$

$

Not available

26

Poulan 530019105

Carburetor Case Seal

$

$

Not available

27

Poulan 530025472

Model XR-20-T1 & 2

$3.99

$

In Stock, only 2 left!

0

27

Poulan 530026981

Model XR-20-T3; Model XR-20T-T1

$6.49

$

In Stock, Qty 9

0

28

Poulan 530026237

Choke Wire Guide Plate

$

$

Not available

29

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

31

Poulan 530015404

Screw

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530023367

Washer

$

$

Not available

34

Poulan 530024438

Reed Valve

$

$

Not available

35

Poulan 530019108

Gasket

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530024409

Carburetor Housing

$

$

Not available

37

Poulan 530019157

Carburetor Gasket

Note: Included in Engine Gasket Kit.

$

$

Not available

38

Poulan 530069238

Line Kit

$

$

Not available

39

Poulan 530035183

Carburetor

$

$

Not available

40

Poulan 530015379

Screw

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530012244

Cylinder
(Superseded to 530069627)

$

$

Not available

44

Poulan 530024903

Muffler Detachment Spring
(Superseded to 530036409)

$

$

Not available

45

Poulan 530010753

Piston Kit (Inc.22,23,Pin)

$

$

Not available

46

Poulan 530032057

Wrist Pin Bearing

$

$

Not available

47

Poulan 530026418

Crankshaft & Rod Ass'y.

$

$

Not available

50

Muffler Ass'y., Model XR-20-See Service Ref 4

$

$

Not available

50

Poulan 530069243

Model XR-20T

$

$

Not available

51

Poulan 530024932

Muffler Guard Spring

$

$

Not available

52

Poulan 530024855

Muffler Guard

$7.49

$

Usually ships in 3-10 days

0

53

Poulan 530093925

Drive Adaptor

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 530030054

Crankcase Sealant

$

$

Not available
