XR 30 - Weed Eater String Trimmer STARTER & SHROUD Parts Diagram

String Trimmer

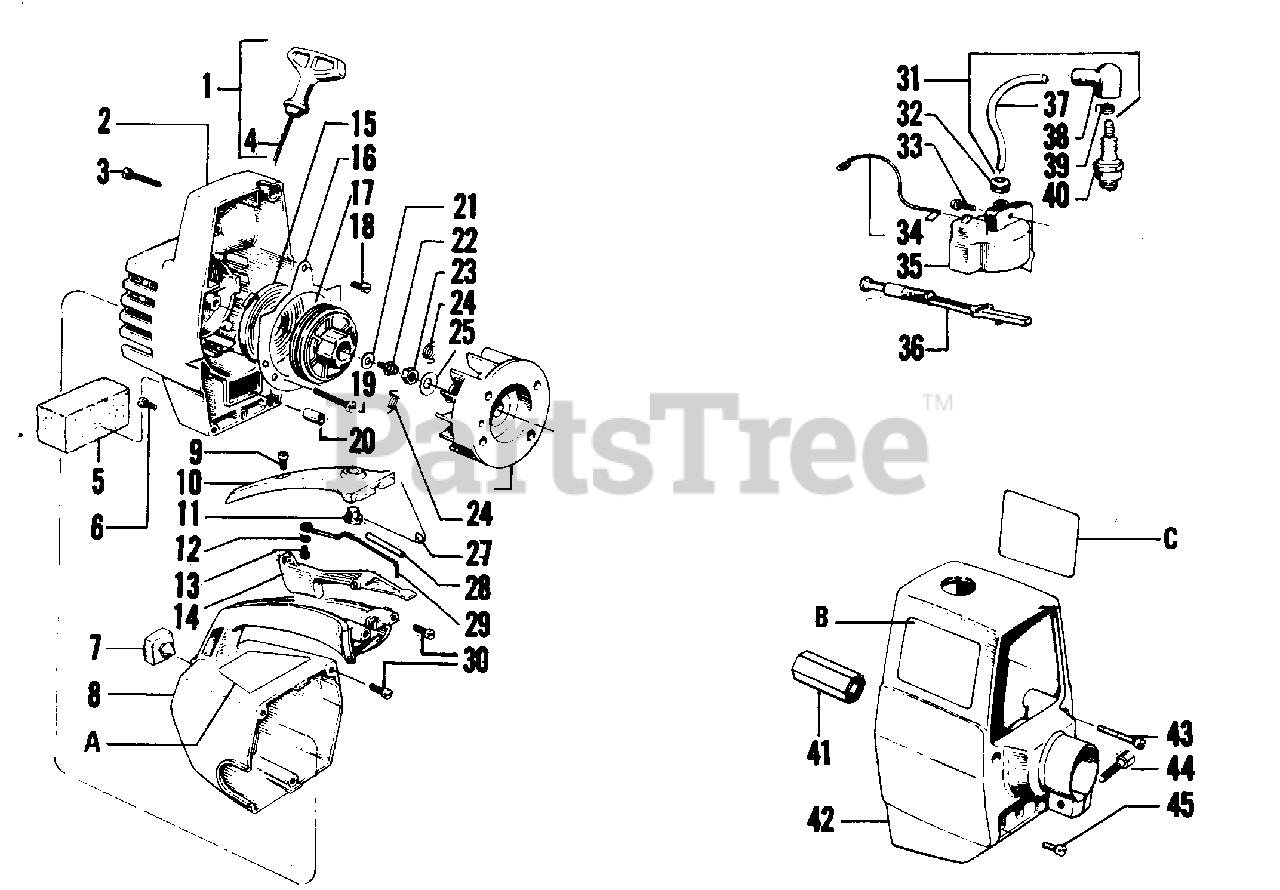

STARTER & SHROUD Parts Diagram

  • Title

1

Ass'y Rope & Handle - Starter - See Service Reference 2.

$

$

Not available

2

Poulan 530069178

Fan Hsg. Kit (Inc.16, 18, 19, 20, & 28)

$46.99

$

Usually ships in 3-10 days

0

3

Screw - #10 - 24 x 1-1/2" -Sems Fan Housing - - Top See Service Reference 5

$

$

Not available

4

Poulan 530022290

Rope (3.5 ft.)

$

$

Not available

5

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

6

Screw - #10 - 24 x 5/8" Sems - Fan Housing - Bottom See Service Reference 5

$

$

Not available

7

Poulan 530024436

Bumper - Fuel Tank Housing

$

$

Not available

8

Poulan 530024656

Handle & Fuel Tank Housing

$

$

Not available

9

Poulan 530015247

Screw - #8 - 16 x 3/4" - Pan Hd. - Handle Cover

$

$

Not available

10

Poulan 530024661

Handle Cover

$

$

Not available

11

Poulan 530026679

Button - Kill Switch

$

$

Not available

12

Poulan 530015412

Washer - Kill Switch

$

$

Not available

13

Poulan 530015407

Screw - #8 - 16 x 3/8" - Pan Hd. - Kill Switch

$

$

Not available

14

Poulan 530024365

Trigger - Throttle

$

$

Not available

15

Starter Recoil Spring - See Service Reference 2.

$

$

Not available

16

Poulan 530026035

Air Baffle

$

$

Not available

17

Starter Pulley (Inc.21) See Service Reference 2.

$

$

Not available

18

Screw - #10 x 1/4" - Fil. Hd. - Baffle

$

$

Not available

19

Screw - #10 - 24 x 1-3/16" - Fil. Hd.

$

$

Not available

20

Poulan 530026122

Spacer - Air Baffle

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

22

Screw - #10 - 14 x 3/4" - Hex Washer Hd. Starter Pulley

Note: See Service Reference 5

$

$

Not available

23

Poulan 530626605

Nut - Flywheel - #5/16 x 24"

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

25

Poulan 530015127

Washer #10 -14 - Flywheel

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530039114

Flywheel Assembly (Inc.24)

$

$

Not available

27

Poulan 530024461

Trigger Spring

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530021036

Insulation - Switch Spring

$

$

Not available

29

Poulan 530024407

Spring - Kill Switch

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530015367

Screw #10 - 14 x 3/4" - Pan Hd. - Fan Housing to Handle & Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 20+

0

31

Poulan 502039103

High Tension Lead Assembly (Inc.37,38,39)
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

32

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015128

Screw - #8 - 32 x 3/4" - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530024158

Lead Wire - Switch

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530069181

Kit - Ignition Module

$

$

Not available

36

Poulan 530024303

Knob - Choke

$

$

Not available

37

Poulan 530039082

High Tension Lead Wire

$

$

Not available

38

Poulan 530003934

Boot - Spark Plug

$

$

Not available

39

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

40

Poulan 530030077

Spark Plug

$

$

Not available

41

Poulan 530093694

Coupling - Hex Drive

$

$

Not available

42

Poulan 530011778

Shroud

$

$

Not available

43

Poulan 530015376

Screw - #10 - 24 x 1-1/3" - Fil. Hd. - Shroud (Top)

$

$

Not available

44

Poulan 530625509

Bolt - Pinch Clamp

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 530015168

Screw - #10 - 24 x 5/8" - Fil Hd. - Shroud (Bottom)

$

$

Not available
