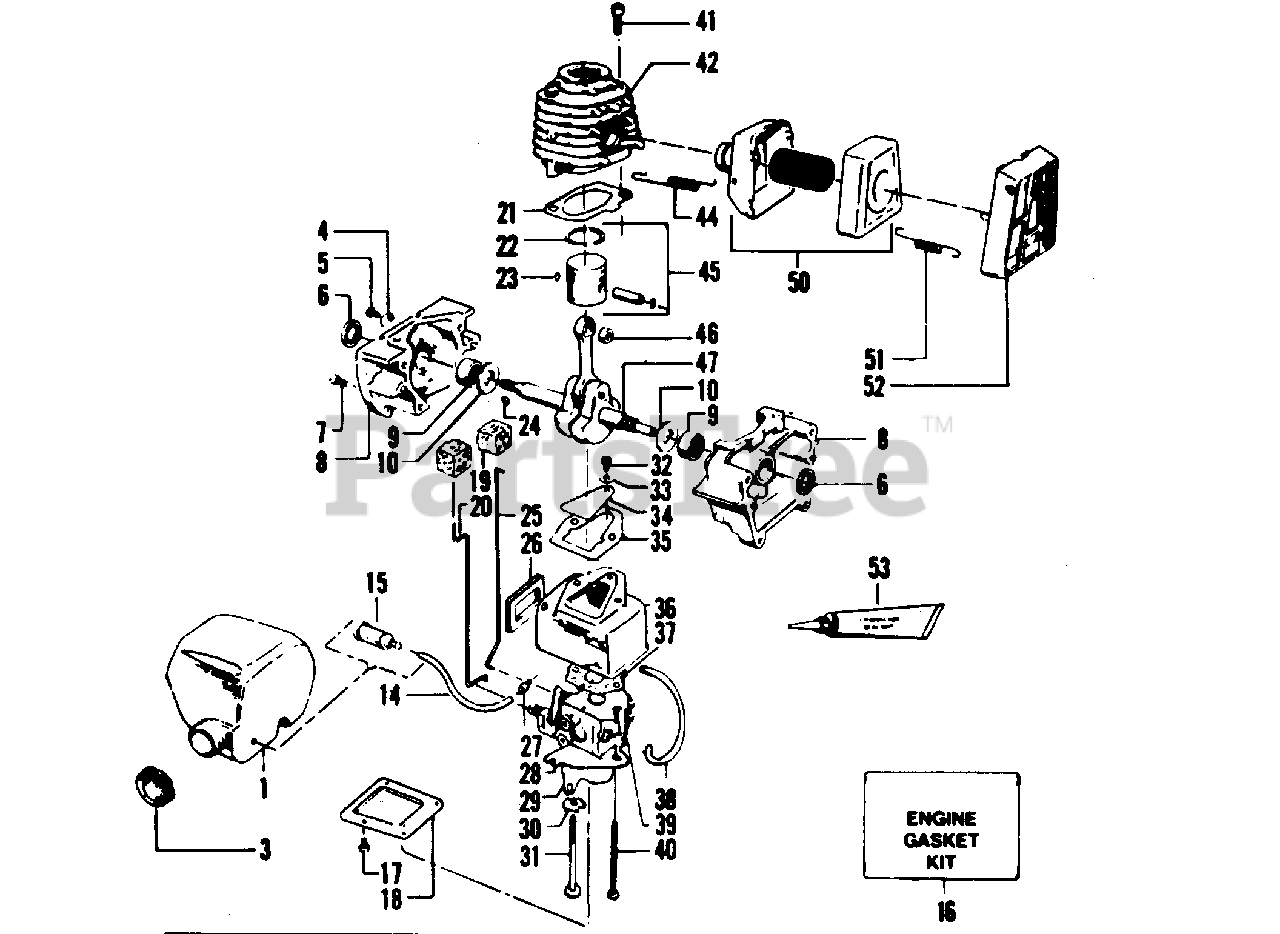

XR 50 A - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

POWER UNIT Parts Diagram

  • Title

1

Poulan 530010776

Fuel Tank Ass'y. (Inc.3, 14, 15 & 27)

$

$

Not available

3

Poulan 530010729

Fuel Cap Assembly (Incl. O-Ring)
(Superseded to 530014347)

$8.99

$

In Stock, Qty 5

0

4

Poulan 530024651

Clamp-Choke Wire

$

$

Not available

5

Poulan 530015004

Screw-8-32x5/16-Pan Hd. Choke Rod Clamp

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530019059

Seal-Crankcase

Note: Included in Engine Gasket Kit.

$

$

Not available

7

Poulan 530015369

Screw-Crankcase

$

$

Not available

8

Poulan 530010757

Crankcase Assembly (Inc.6, 9 & Qty. 4 of #7)

$

$

Not available

9

Poulan 530032029

Bearing-Crankcase

Note: Included in Engine Gasket Kit.

$10.99

$

In Stock, only 4 left!

0

10

Poulan 530015351

Washer-Thrust-Crankcase

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530069247

Line Kit

$6.49

$

In Stock, Qty 20+

0

15

Poulan 530010897

Fuel Pick-up Assembly
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

16

Poulan 530069219

Kit-Engine Gasket

$

$

Not available

17

Poulan 530015235

Screw-8-18x9/16"-Pan Hd.-Carburetor Case Cover

$

$

Not available

18

Poulan 530026029

Cover-Carburetor Case

$

$

Not available

19

Poulan 530023373

Boot-Throttle-Choke Wire

Note: Included in Engine Gasket Kit.

$

$

Not available

20

Poulan 530026236

Choke Wire

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530019111

Gasket-Cylinder
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

22

Poulan 530027369

Ring-Piston

$

$

Not available

23

Poulan 530015162

Retainer-Wrist Pin

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530024902

Throttle Wire

$

$

Not available

26

Poulan 530019105

Seal-Carburetor Case

Note: Included in Engine Gasket Kit.

$

$

Not available

27

Poulan 530026981

Fuel Line Fitting

$6.49

$

In Stock, Qty 9

0

28

Poulan 530026237

Choke Wire Guide Plate

$

$

Not available

29

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015254

Washer-Wave

$3.99

$

In Stock, only 2 left!

0

31

Poulan 530015404

Screw-10-24x2-1/8"-Fil. Hd.-Carburetor Shoulder

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530015241

Screw-6-19-5/16"-Pan Hd.-Reed Valve

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530023367

Washer-Reed Valve Screw

$

$

Not available

34

Poulan 530024438

Reed Valve

$

$

Not available

35

Poulan 530019108

Gasket-Carburetor Case to Crankcase

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530024409

Carburetor Housing

$

$

Not available

37

Poulan 530019157

Gasket-Carburetor

Note: Included in Engine Gasket Kit.

$

$

Not available

38

Poulan 530069238

Line Kit

$

$

Not available

39

Poulan 530035183

Carburetor

$

$

Not available

40

Poulan 530015379

Screw-10-24x1-7/8"-Fil. Hd.-Carburetor

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530015239

Screw-1/4-20x3/4"-Hex Shocket Hd.-Cylinder

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530012190

Cylinder

$

$

Not available

44

Poulan 530024903

Spring-Muffler Detachment
(Superseded to 530036409)

$

$

Not available

45

Poulan 530069240

Piston Kit (Incl.#22, 23 & Pin)

$

$

Not available

46

Poulan 530032092

Bearing-Wrist Pin

$9.99

$

Usually ships in 3-10 days

0

47

Poulan 530010844

Crankshaft & Rod Assembly (Inc.46)

$

$

Not available

50

Poulan 530069243

Muffler Ass'y.

$

$

Not available

51

Poulan 530024932

Spring-Muffler Guard

$

$

Not available

52

Poulan 530024855

Guard-Muffler

$7.49

$

Usually ships in 3-10 days

0

53

Poulan 530030054

Sealant-Crankcase (Not Supplied with Unit)

$

$

Not available
